Запчасти Doosan Daewoo BRAKE & MODULE PIPING(1) BODY PARTS

-

400-01247

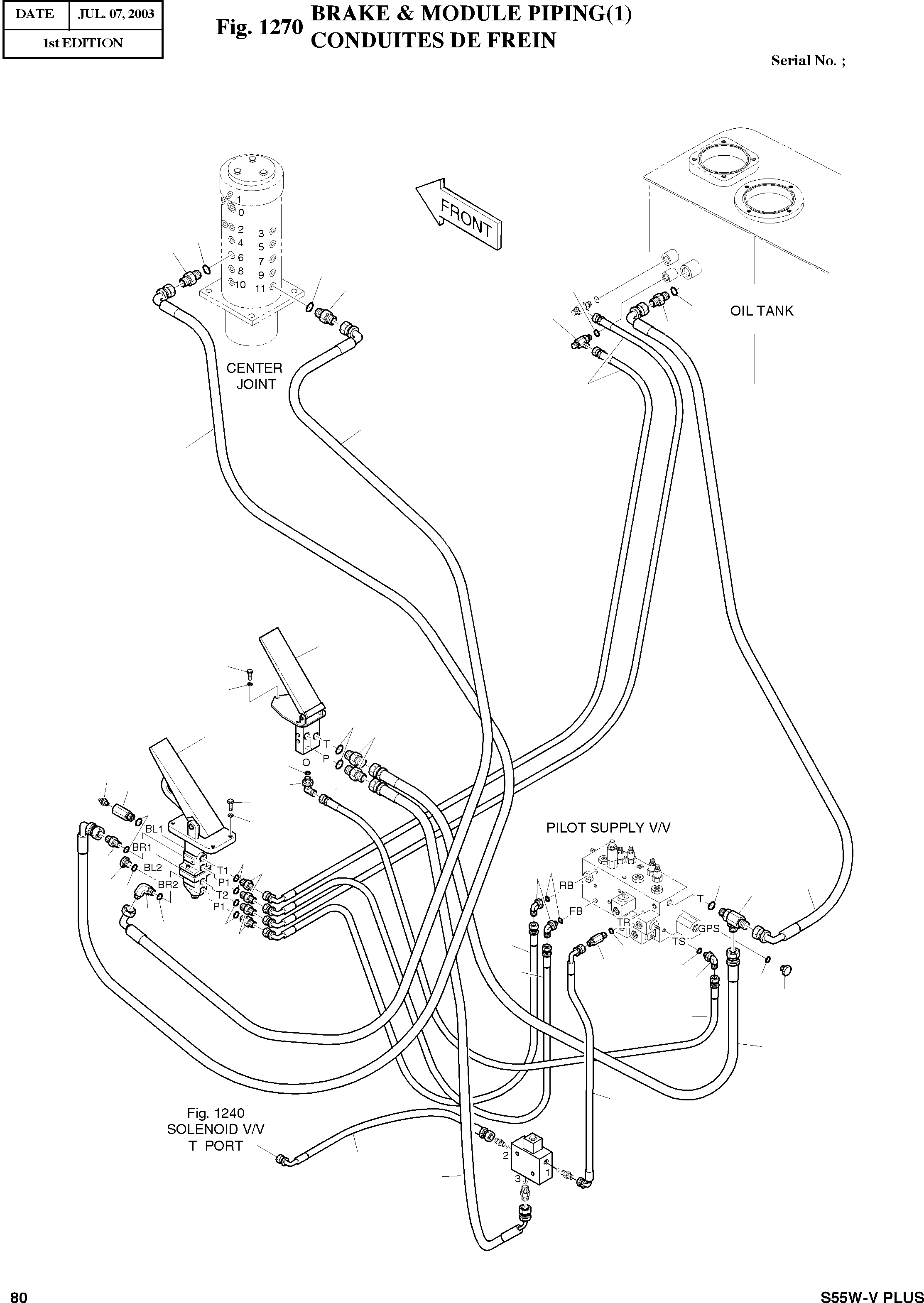

BRAKE & MODULE PIPING

SC: D

-2шт.

2

2420-9306C

VALVE;BRAKE-DIG

desc: VANNE DE FREIN

1шт.

3

2420-9406C

VALVE;PEDAL

desc: VANNE

1шт.

5

DS2059435

HOSE PF1/4-390L

desc: TUYAU FLEXIBLE

1шт.

8

S0509053

BOLT M8X1.25X25

desc: BOULON A 6 PANS

4шт.

9

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

10

S2204861

BOLT M6X1.0X20

desc: BOULON A 6 PANS CREUX

3шт.

14

2184-1045D102

HOSE PF1/4-1450L

desc: TUYAU FLEXIBLE

1шт.

16

2181-1950D1

PLUG

desc: BOUCHON

1шт.

17

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

20

2181-1126D6

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

24

S5110301

WASHER;SPRING

desc: RONDELLE ELASTIQUE

3шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

10шт.

28

2181-1702D10

ELBOW;S

desc: COUDE

1шт.

30

S8000111

O-RING

desc: JOINT TORIQUE

9шт.

31

2181-1702D10

ELBOW;S

desc: COUDE

2шт.

32

2181-1126D36

ADAPTER

desc: RACCORD ADAPTATEUR

5шт.

35

2181-1126D14

ADAPTER

desc: RACCORD ADAPTATEUR

4шт.

37

2181-1702D4

ELBOW

desc: COUDE

2шт.

39

2181-1950D2

PLUG

desc: BOUCHON

1шт.

40

181-00182

REDUCER

desc: REDUCTEUR

1шт.

45

2184-1046D220

HOSE PF1/4-1860L

desc: TUYAU FLEXIBLE

2шт.

50

DS2059436

HOSE PF1/4-580L

desc: TUYAU FLEXIBLE

1шт.

51

549-00010

SWITCH;PRESSURE

desc: INTERRUPTEUR

1шт.

52

DS2059434

HOSE PF1/2-380L

desc: TUYAU FLEXIBLE

1шт.

64

2184-1046D76

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

65

2184-1046D108

HOSE PF1/4-1300L

desc: TUYAU FLEXIBLE

1шт.

68

2184-1045D149

HOSE PF1/4-1400L

desc: TUYAU FLEXIBLE

1шт.

69

2181-1126D103

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

70

2181-1951D19

TEE

desc: TE

1шт.

71

2181-1951D1

TEE

desc: TE

1шт.

98

2184-1046D147

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.

103

DS2059446

HOSE PF1/4-160L

desc: TUYAU FLEXIBLE

1шт.

104

2184-1046D44

HOSE PF1/4-460L

desc: TUYAU FLEXIBLE

1шт.
