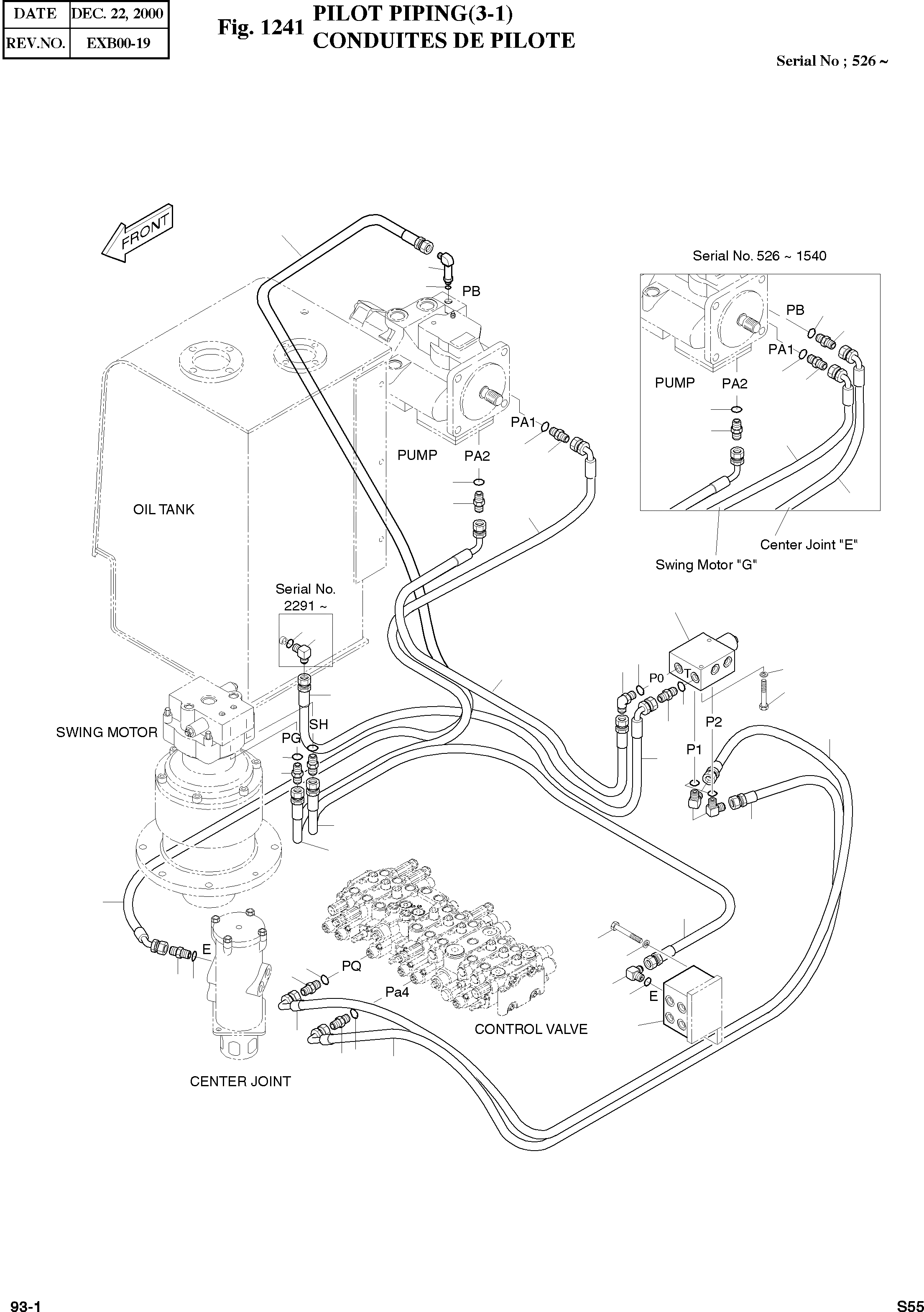

Запчасти Doosan Daewoo PILOT PIPING(3-1) UPPER STRUCTURE

-

2400-1852

PILOT PIPING

SERIAL: 526-552

-2шт.

-

2400-1852A

PILOT PIPING

SERIAL: 553

-2шт.

4

2181-1126D39

ADAPTER;S PFO1/4XPF3/8

desc: RACCORD ADAPTATEUR

1шт.

7

2420-9351A

VALVE;SHUTTLE

SERIAL: 526-910

1шт.

7

2420-9351B

VALVE;SHUTTLE

SERIAL: 911

1шт.

8

S0510153

BOLT M8X1.25X75

desc: BOULON A 6 PANS

4шт.

9

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

10

2420-1217

VALVE;SOLENOID

SERIAL: 526-1150

1шт.

10

426-00034

VALVE;SOLENOID

SERIAL: 1151

1шт.

11

S0556653

BOLT M8X1.25X65

desc: BOULON A 6 PANS

2шт.

12

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

13

2181-1702D3

ELBOW;S PF1/4XPF3/8

desc: COUDE

1шт.

17

2181-1126D14

ADAPTER;S PF1/4XPF1/4

SERIAL: 526-1540

9шт.

17

2181-1126D14

ADAPTER;S PF1/4XPF1/4

SERIAL: 1541

8шт.

19

2181-1702D4

ELBOW PF1/4XPF1/4

SERIAL: 526-2290

3шт.

19

2181-1702D4

ELBOW PF1/4XPF1/4

SERIAL: 2291

4шт.

22

S8000111

O-RING P11

SERIAL: 526-2290

13шт.

22

S8000111

O-RING P11

SERIAL: 2291

14шт.

25

2184-1045D202

HOSE PF1/4-1650L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1046D148

HOSE PF1/4-1450L

desc: TUYAU FLEXIBLE

1шт.

36

2184-1046D92

HOSE PF1/4-1280L

desc: TUYAU FLEXIBLE

1шт.

37

2184-1046D223

HOSE PF1/4-1400L

desc: TUYAU FLEXIBLE

1шт.

39

2184-1062D72

HOSE PF1/4-1800L

SERIAL: 526-1540

1шт.

39

2184-1060D46

HOSE PF1/4-2000L

SERIAL: 1541

1шт.

41

2184-1046D147

HOSE PF1/4-1000L

SERIAL: 526-2290

1шт.

41

2184-1046D143

HOSE PF1/4-1150L

SERIAL: 2291

1шт.

42

2184-1036D262

HOSE PF3/8-1800L

desc: TUYAU FLEXIBLE

1шт.

50

2181-1702D56

ELBOW

SERIAL: 1541

1шт.
