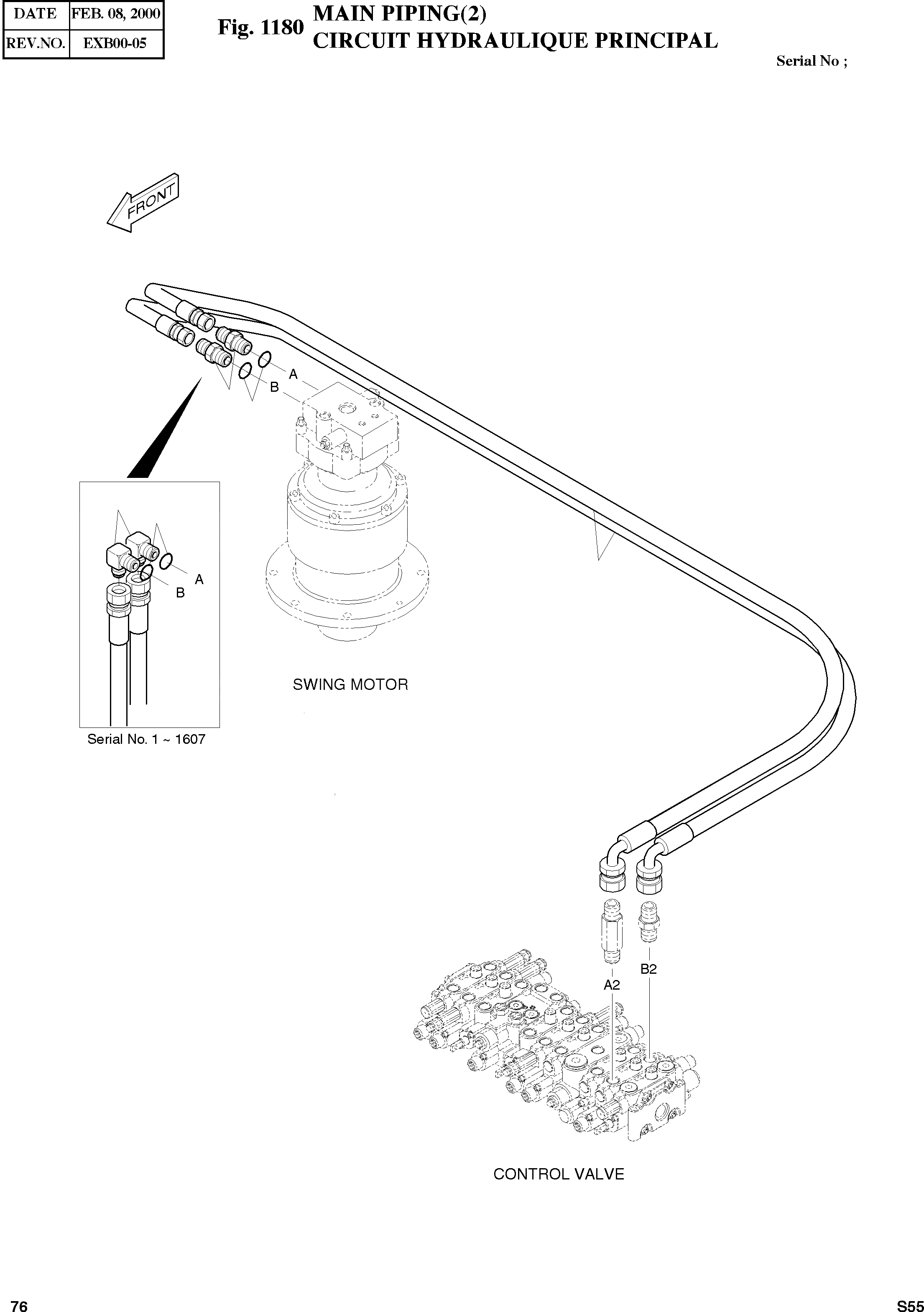

Запчасти Doosan Daewoo MAIN PIPING(2) UPPER STRUCTURE

-

2400-1853

MAIN PIPING

SC: D

-2шт.

10

2181-1702D50

ELBOW PF1//2-PFO1/2

SERIAL: 1-1607

2шт.

13

2181-1126D6

ADAPTER PF1/2-PFO1/2

SERIAL: 1608

2шт.

14

S8000181

O-RING P18

desc: JOINT TORIQUE

2шт.

15

2184-1036D157

HOSE PF1/2-1820L

desc: TUYAU FLEXIBLE

2шт.
