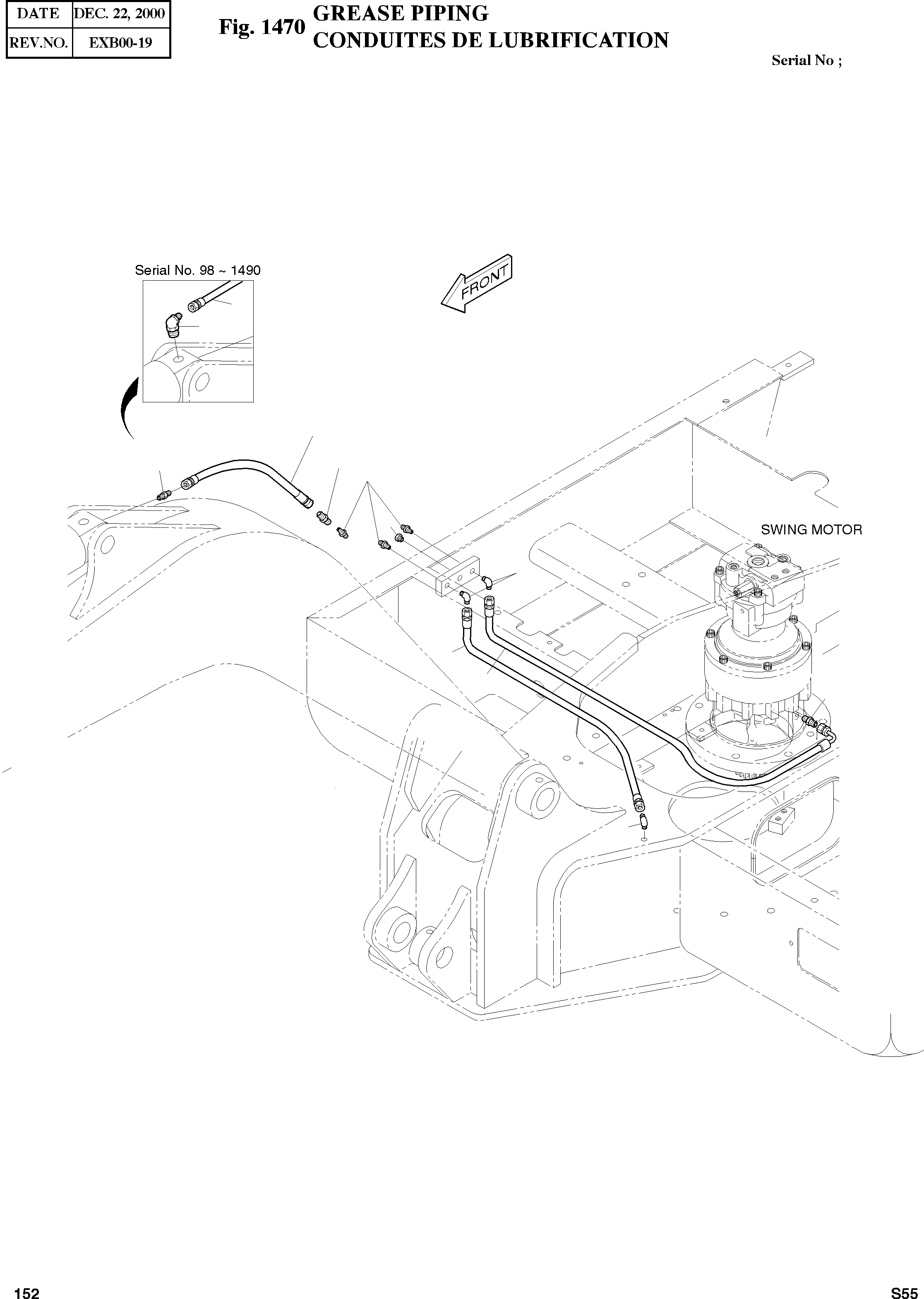

Запчасти Doosan Daewoo GREASE PIPING UPPER STRUCTURE

-

2400-1871

GREASE PIPING

SC: D

-2шт.

1

2181-1186D12

ELBOW PT1/8-PF1/4

desc: COUDE

3шт.

2

2184-1045D188

HOSE PF1/4-1050L

desc: TUYAU FLEXIBLE

1шт.

3

2184-1060D31

HOSE PF1/4-1700L

SERIAL: 1-242

1шт.

3

2184-1046D49

HOSE PF1/4-1020L

SERIAL: 243

1шт.

7

S6710042

NIPPLE;GREASE PT1/8

desc: GRAISSEUR

3шт.

8

2181-1110D30

ADAPTER PT1/8-PF1/4

desc: RACCORD

1шт.

10

2181-1116D1

PLUG PT1/8

desc: BOUCHON

1шт.

11

2184-1045D90

HOSE PF1/4-800L

SERIAL: 98-1490

1шт.

11

2184-1045D87

HOSE PF1/4-660L

SERIAL: 1491

1шт.

12

2181-1111D11

ELBOW PT1/8-PF1/4

SERIAL: 98-182

1шт.

12

2181-1186D12

ELBOW PT1/8-PF1/4

SERIAL: 183-1490

1шт.

12

2181-1110D30

ADAPTER PT1/8-PF1/4

SERIAL: 1491

1шт.

13

2181-1110D1

ADAPTER;S PF1/4-PT1/4

SERIAL: 183

1шт.
