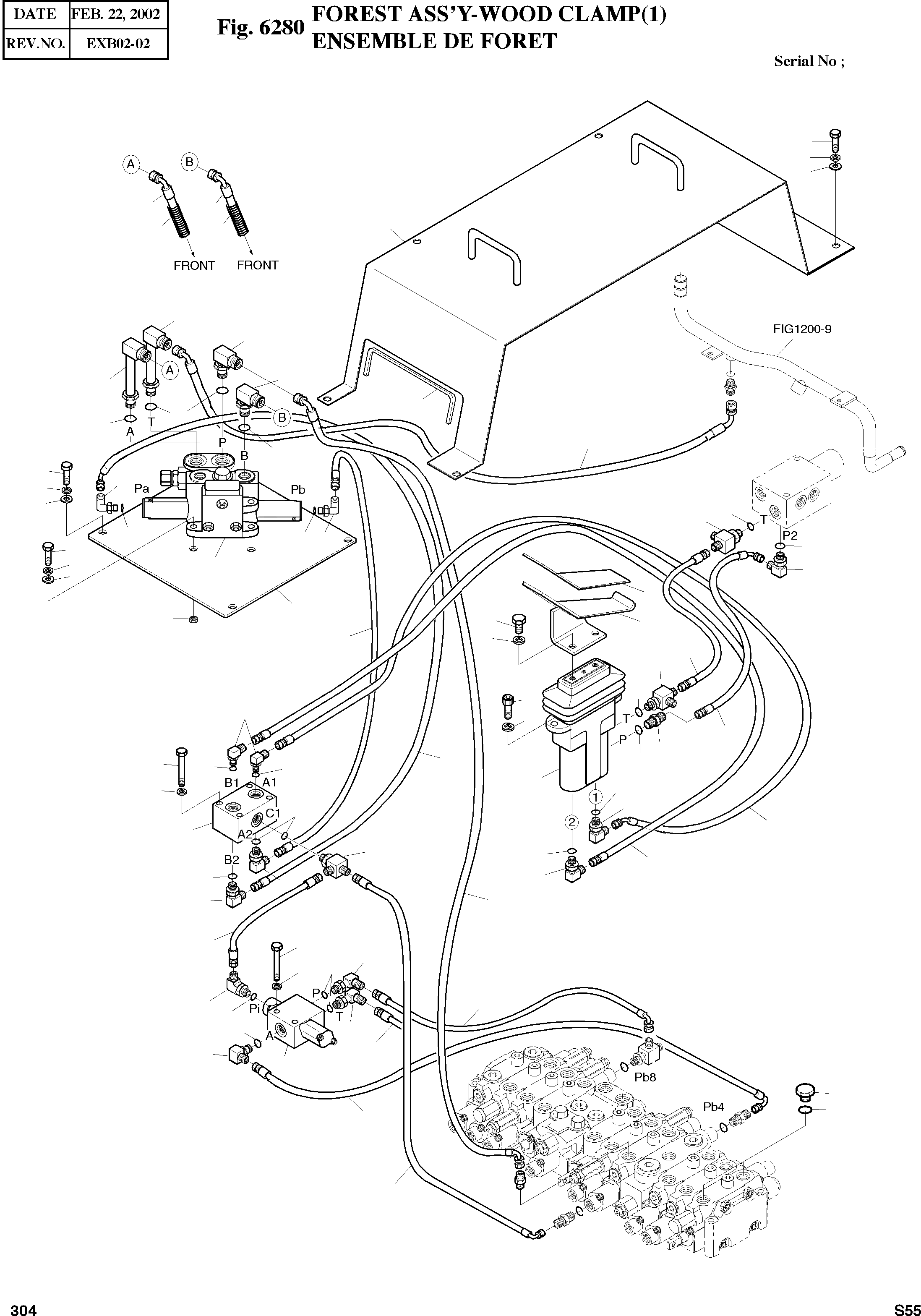

Запчасти Doosan Daewoo FOREST ASSY-WOOD CLAMP(1) OPTIONAL PARTS

-

400-00447B

FOREST ASS'Y

SC: D

-2шт.

7

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

12шт.

12

S4012533

NUT

desc: ECROU

2шт.

19

S5010513

WASHER;PLAIN

desc: RONDELLE PLATE

11шт.

32

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

8шт.

34

2166-1006

TAPE;ANTI-SKID

desc: NONSLIP

1шт.

35

2181-1951D1

TEE

desc: TE

3шт.

36

S8000111

O-RING

desc: JOINT TORIQUE

17шт.

37

2184-1045D71

HOSE PF1/4-860L

desc: TUYAU FLEXIBLE

1шт.

38

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD

1шт.

39

2184-1060D201

HOSE PF1/4-900L

desc: TUYAU FLEXIBLE

2шт.

41

2181-1702D4

ELBOW PF1/4X1/4

desc: COUDE

12шт.

42

2184-1045D69

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

43

2184-1060D124

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

2шт.

44

621-00170A

COVER

desc: COUVERCLE

1шт.

45

2426-6050A

VALVE;OPTION

desc: VANNE

1шт.

46

S0509353

BOLT M8X1.25X35

desc: BOULON A 6 PANS

3шт.

47

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

3шт.

48

2181-1702D13

ELBOW PFO3/8XPF1/2

desc: COUDE

1шт.

49

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

50

2184-1060D216

HOSE PF1/2-2600L

desc: TUYAU FLEXIBLE

3шт.

51

2181-1702D2

ELBOW PF1/2XPF1/2

desc: COUDE

1шт.

52

S8000181

O-RING

desc: JOINT TORIQUE

4шт.

53

2184-1076D112

HOSE PF1/2-1050L

desc: TUYAU FLEXIBLE

1шт.

54

2181-1702D37

ELBOW PFO3/8XPF1/2

desc: COUDE

1шт.

55

2181-1702D34

ELBOW PF1/2XPF1/2

desc: COUDE

1шт.

56

2184-1076D122

HOSE PF1/2-2650L

desc: TUYAU FLEXIBLE

1шт.

57

2158-1003D26

PROTECTOR;HOSE

desc: PROTECTEUR

2шт.

58

621-00173

COVER

desc: COUVERCLE

1шт.

59

2161-1744

TRIM;RUBBER-400L

desc: CAOUTCHOUC

1шт.

60

420-00160

VALVE;SINGLE PEDAL

desc: VANNE

1шт.

61

S2212261

BOLT;SOCKET M10X1.5X

desc: BOULON A 6 PANS CREUX

2шт.

62

S5110601

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

63

S0511853

BOLT M10X1.5X20

desc: BOULON A 6 PANS

2шт.

64

S5010513

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

65

134-00012

PEDAL

desc: PEDALE

1шт.

75

2181-1950D3

PLUG PFO1/4

desc: BOUCHON

2шт.

77

2184-1060D45

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.

78

2184-1045D55

HOSE PF1/4-990L

desc: TUYAU FLEXIBLE

1шт.

79

2420-9158A

VALVE;SELECTOR

desc: VANNE

1шт.

80

S0556553

BOLT M8X1.25X60

desc: BOULON A 6 PANS

2шт.

81

426-00155

VALVE;PILOT

desc: VANNE

1шт.

82

S0556353

BOLT M8X1.25X50

desc: BOULON A 6 PANS

2шт.

83

2184-1046D191

HOSE PF1/4-870L

desc: TUYAU FLEXIBLE

1шт.

84

2184-1046D33

HOSE PF1/4-620L

desc: TUYAU FLEXIBLE

1шт.

85

2184-1046D49

HOSE PF1/4-1020L

desc: TUYAU FLEXIBLE

1шт.

86

2184-1046D115

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

1шт.

87

DS2281072

ELBOW PF1/4X1/4

desc: COUDE

1шт.

88

2184-1045D182

HOSE PF1/4-240L

desc: TUYAU FLEXIBLE

1шт.
