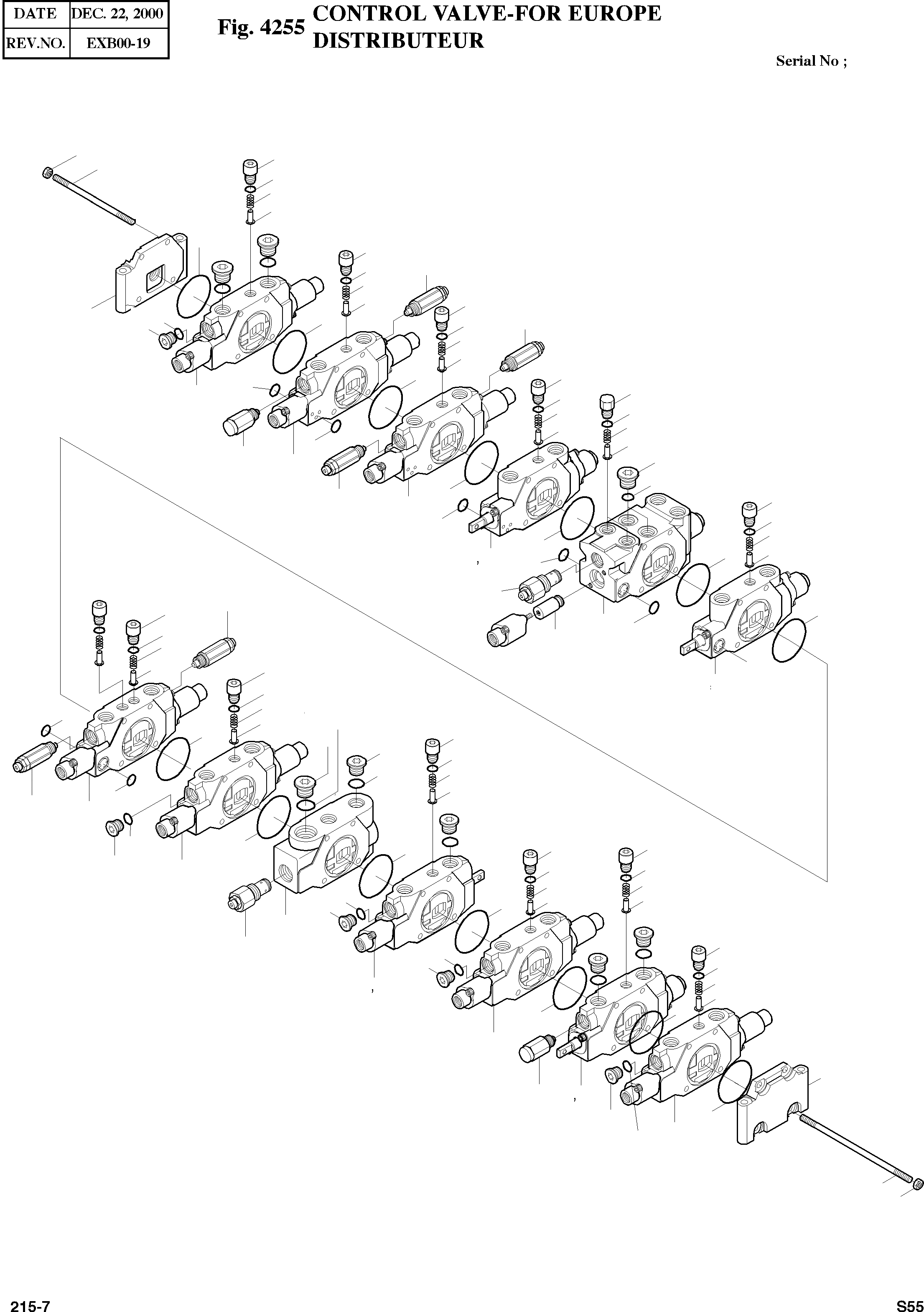

Запчасти Doosan Daewoo CONTROL VALVE-FOR EUROPE HYDRAULIC PARTS

-

426-00161

CONTROL VALVE

SERIAL: 2346

1шт.

1

2-01-955

COVER;END

desc: COUVERCLE

1шт.

2

4-01-905

BLOCK ASS'Y-BOOM SWING

desc: BLOC

1шт.

2-4

1-59-901

WIPER;DUST

desc: . JOINT PARE-POUSSIERE

2шт.

2-12

2-05-905

CHECK;POPPET

desc: . CARTOCHE DE POPPET

1шт.

2-13

1-51-907

CHECK;SPRING

desc: . CARTOCHE DE RESSORT

1шт.

2-14

S8000111

O-RING

desc: . JOINT TORIQUE

1шт.

2-15

2-09-902

PLUG;CHECK

desc: . BOUCHON

1шт.

2-18

4-01-90101

ANTI-CAVITATION VALVE

desc: . VANNE

1шт.

3

4-01-919

BLOCK ASS'Y-SWING

desc: BLOC

1шт.

3-12

2-05-905

CHECK;POPPET

desc: . CARTOCHE DE POPPET

1шт.

3-13

1-51-907

CHECK;SPRING

desc: . CARTOCHE DE RESSORT

1шт.

3-14

S8000111

O-RING 1BP-11

desc: . JOINT TORIQUE

1шт.

3-15

2-09-902

PLUG;CHECK

desc: . BOUCHON

1шт.

3-16

S8000141

O-RING 1BP-14

desc: . JOINT TORIQUE

1шт.

3-17

2-09-908

PLUG

desc: . BOUCHON

1шт.

4

4-01-903

BLOCK ASS'Y-DOZER

desc: BLOC

1шт.

4-4

1-59-901

WIPER;DUST

desc: . JOINT PARE-POUSSIERE

2шт.

4-12

2-05-905

CHECK;POPPET

desc: . CARTOCHE DE POPPET

1шт.

4-13

1-51-907

CHECK;SPRING

desc: . CARTOCHE DE RESSORT

1шт.

4-14

S8000111

O-RING 1BP-11

desc: . JOINT TORIQUE

1шт.

4-15

2-09-902

PLUG;CHECK

desc: . BOUCHON

1шт.

4-16

S8000141

O-RING 1BP-14

desc: . JOINT TORIQUE

1шт.

4-17

2-09-908

PLUG

desc: . BOUCHON

1шт.

5

4-01-941A

INLET ASS'Y

desc: BLOC

1шт.

5-2

S8000241

O-RING P24

desc: . JOINT TORIQUE

1шт.

5-3

24301067

PLUG

desc: . BOUCHON

1шт.

5-4

S8000181

O-RING 1BP-18

desc: . JOINT TORIQUE

1шт.

5-5

24301050

PLUG

desc: . BOUCHON

1шт.

5-6

4-02-901

MAIN RELIEF VALVE

desc: . BATI PRINCIPAL

1шт.

6

4-01-910

BLOCK ASS'Y-BOOM2

desc: BLOC

1шт.

6-12

2-05-905

CHECK;POPPET

desc: . CARTOCHE DE POPPET

1шт.

6-13

1-51-907

CHECK;SPRING

desc: . CARTOCHE DE RESSORT

1шт.

6-14

S8000111

O-RING 1BP-11

desc: . JOINT TORIQUE

1шт.

6-15

2-09-902

PLUG;CHECK

desc: . BOUCHON

1шт.

6-16

S8000141

O-RING 1BP-14

desc: . JOINT TORIQUE

2шт.

6-17

2-09-908

PLUG;CHECK

desc: . BOUCHON

1шт.

7

4-01-916

BLOCK ASS'Y-ARM1

desc: BLOC

1шт.

7-12

2-05-905

CHECK;POPPET

desc: . CARTOCHE DE POPPET

2шт.

7-13

1-51-907

CHECK;SPRING

desc: . CARTOCHE DE RESSORT

2шт.

7-14

S8000111

O-RING 1BP-11

desc: . JOINT TORIQUE

2шт.

7-15

2-09-902

PLUG;CHECK

desc: . BOUCHON

2шт.

7-16

4-02-902

OVERLOAD RELIEF VALVE

desc: . CLAPET DE DECHARGE

2шт.

8

4-01-90701

BLOCK ASS'Y-TRAVEL1

desc: BLOC

1шт.

8-4

1-59-901

WIPER;DUST

desc: . JOINT PARE-POUSSIERE

2шт.

8-12

2-05-906

CHECK;POPPET

desc: . CARTOCHE DE POPPET

1шт.

8-13

1-51-908

CHECK;SPRING

desc: . CARTOCHE DE RESSORT

1шт.

8-14

S8000111

O-RING 1BP-11

desc: . JOINT TORIQUE

1шт.

8-15

2-09-901

PLUG;CHECK

desc: . BOUCHON

1шт.

9

4-01-933A

INLET ASS'Y

desc: BLOC

1шт.

9-5

2-03-904

CASE;FILTER

desc: . CARTER

1шт.

9-6

S8000121

O-RING

desc: . JOINT TORIQUE

1шт.

9-7

1-59-902

FILTER

desc: . FILTRE

1шт.

9-14

2-05-904

CHECK;POPPET

desc: . CARTOCHE DE POPPET

2шт.

9-15

1-51-512

CHECK;SPRING

desc: . CARTOCHE DE RESSORT

2шт.

9-16

S8000141

O-RING

desc: . JOINT TORIQUE

4шт.

9-17

2-09-903

PLUG;CHECK

desc: . BOUCHON

2шт.

9-18

24301058

PLUG

desc: . BOUCHON

2шт.

9-20

4-02-901

MAIN RELIEF VALVE

desc: . BATI PRINCIPAL

1шт.

10

4-01-90702

BLOCK ASS'Y-TRAVEL2

desc: BLOC

1шт.

10-4

1-59-901

WIPER;DUST

desc: . JOINT PARE-POUSSIERE

2шт.

10-12

2-05-906

CHECK;POPPET

desc: . CARTOCHE DE POPPET

2шт.

10-13

1-51-908

CHECK;SPRING

desc: . CARTOCHE DE RESSORT

1шт.

10-14

S8000111

O-RING 1BP-11

desc: . JOINT TORIQUE

1шт.

10-15

2-09-901

PLUG;CHECK

desc: . BOUCHON

1шт.

11

4-01-915

BLOCK ASS'Y-BOOM1

desc: BLOC

1шт.

11-3

4-02-902

OVERLOAD RELIEF VALVE

desc: . CLAPET DE DECHARGE

2шт.

11-13

2-05-905

CHECK;POPPET

desc: . CARTOCHE DE POPPET

1шт.

11-14

1-51-907

CHECK;SPRING

desc: . CARTOCHE DE RESSORT

1шт.

11-15

S8000111

O-RING 1BP-11

desc: . JOINT TORIQUE

1шт.

11-16

2-02-902

PLUG;CHECK

desc: . BOUCHON

1шт.

12

4-01-901

BLOCK ASS'Y-BUCKET

desc: BLOC

1шт.

12-12

2-05-905

CHECK;POPPET

desc: . CARTOCHE DE POPPET

1шт.

12-13

1-51-907

CHECK;SPRING

desc: . CARTOCHE DE RESSORT

1шт.

12-14

S8000111

O-RING 1BP-11

desc: . JOINT TORIQUE

1шт.

12-15

2-09-902

PLUG;CHECK

desc: . BOUCHON

1шт.

12-16

4-02-902

OVERLOAD RELIEF VALVE

desc: . CLAPET DE DECHARGE

2шт.

12-17

4-01-90101

ANTI-CAVITATION VALVE

desc: . VANNE

2шт.

13

4-01-918

BLOCK ASS'Y-ARM2

desc: BLOC

1шт.

13-12

2-05-905

CHECK;POPPET

desc: . CARTOCHE DE POPPET

1шт.

13-13

1-51-907

CHECK;SPRING

desc: . CARTOCHE DE RESSORT

1шт.

13-14

S8000111

O-RING 1BP-11

desc: . JOINT TORIQUE

1шт.

13-15

2-09-902

PLUG;CHECK

desc: . BOUCHON

1шт.

13-16

1-53-014

O-RING 1BP-14

desc: . JOINT TORIQUE

1шт.

13-17

2-09-908

PLUG

desc: . BOUCHON

1шт.

14

2-01-954

COVER;END

desc: COUVERCLE

1шт.

15

1-55-228

O-RING

desc: JOINT TORIQUE

14шт.

16

S8000181

O-RING 1BP-18

desc: JOINT TORIQUE

7шт.

17

2-20-902

BOLT;TIE 186L

desc: BOULON A 6 PANS

4шт.

18

2-20-903

BOLT;TIE 310L

desc: BOULON A 6 PANS

4шт.

19

S4010503

NUT

desc: ECROU

8шт.

20

4-01-919

BLOCK ASS'Y-ROTATION

desc: BLOC

1шт.

20-12

2-05-905

CHECK;POPPET

desc: . CARTOCHE DE POPPET

1шт.

20-13

1-51-907

CHECK;SPRING

desc: . CARTOCHE DE RESSORT

1шт.

20-14

S8000111

O-RING 1BP-11

desc: . JOINT TORIQUE

1шт.

20-15

2-09-902

PLUG;CHECK

desc: . BOUCHON

1шт.

20-16

S8000141

O-RING 1BP-14

desc: . JOINT TORIQUE

1шт.

20-17

2-09-908

PLUG

desc: . BOUCHON

1шт.
