Запчасти Doosan Daewoo CONTROL VALVE HYDRAULIC PARTS

-

2420-9502

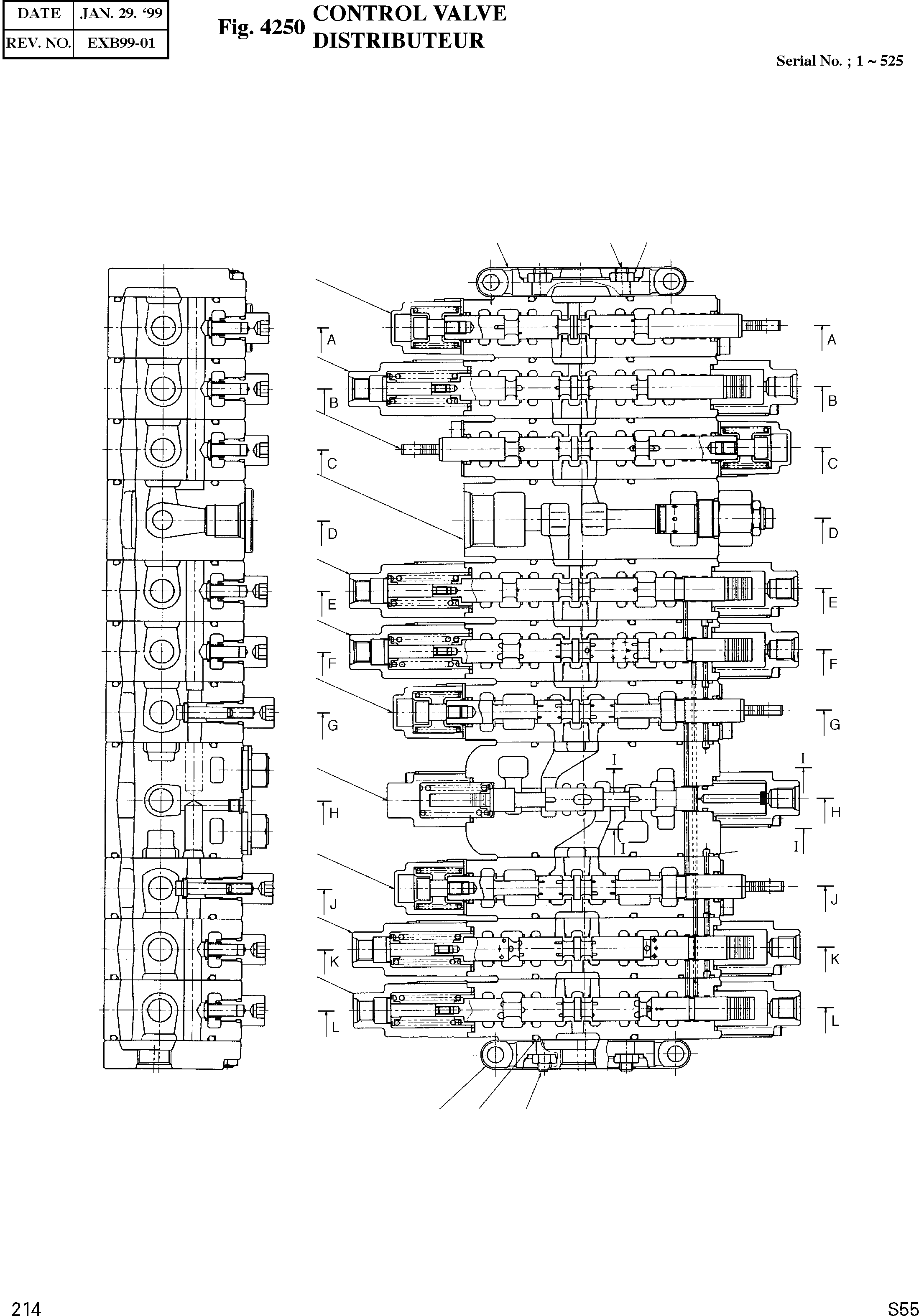

CONTROL VALVE

SERIAL: 1-525

1шт.

1

23752202854-01

COVER;END

desc: COUVERCLE

1шт.

2

23753206324-01

BOOM SWING BLOCK ASS'Y

desc: ENSEMBLE DE BLOC

1шт.

3

23753206325-01

SWING BLOCK ASS'Y

SC: D

1шт.

4

23753206326-01

DOZER BLOCK ASS'Y

desc: ENSEMBLE DE BLOC

1шт.

5

23753206327-01

BLOCK ASS'Y

desc: ENSEMBLE DE BLOC

1шт.

6

23753206328-01

BOOM 2 & BREAKER BLOCK ASS'Y

desc: ENSEMBLE DE BLOC

1шт.

7

23753206329-01

ARM BLOCK ASS'Y

desc: ENSEMBLE DE BLOC

1шт.

8

23753206330-01

TRAVEL BLOCK ASS'Y

desc: ENSEMBLE DE BLOC

1шт.

9

23753206331-01

P3 BLOCK ASS'Y

desc: ENSEMBLE DE BLOC

1шт.

10

23753206332-01

TRAVEL BLOCK ASS'Y

desc: ENSEMBLE DE BLOC

1шт.

11

23753206333-01

BOOM BLOCK ASS'Y

desc: ENSEMBLE DE BLOC

1шт.

12

23753206334-01

BUCKET BLOCK ASS'Y

desc: ENSEMBLE DE BLOC

1шт.

13

23752203373-01

COVER;END

desc: COUVERCLE

1шт.

18

04022000006-10

O-RING

desc: JOINT TORIQUE

12шт.

19

04011000180-10

O-RING 1BP-18

desc: JOINT TORIQUE

6шт.

20

62514130471-22

BOLT

desc: BOULON A 6 PANS

4шт.

21

62514130471-53

BOLT

desc: BOULON A 6 PANS

4шт.

22

01010110080-04

NUT

desc: ECROU

8шт.
