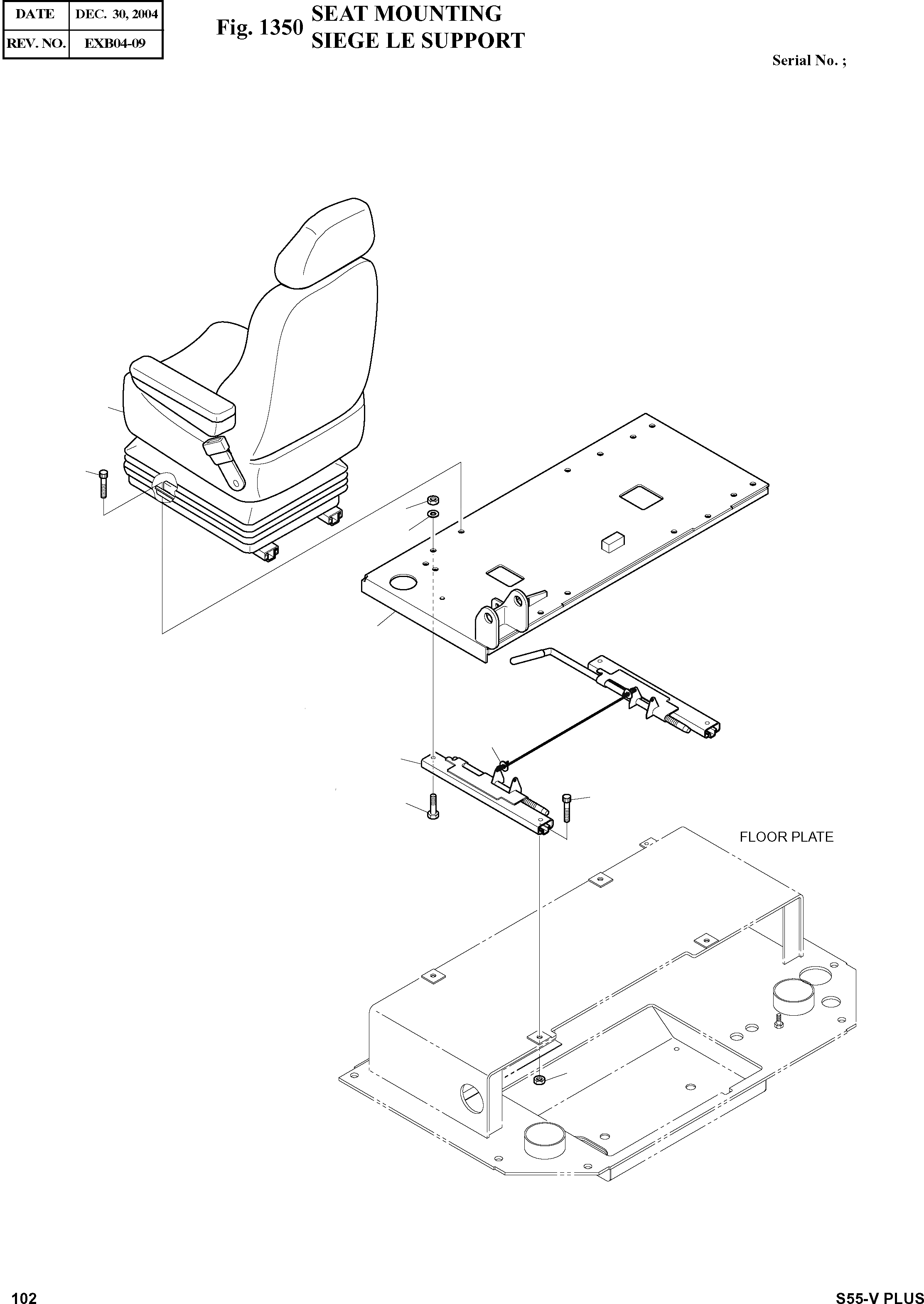

Запчасти Doosan Daewoo SEAT MOUNTING BODY PARTS

-

195-01383H

STAND ASS'Y

SERIAL: 20001-31000

-2шт.

-

195-01383K

STAND ASS'Y

SERIAL: 31001-33955

-2шт.

-

195-01383M

STAND ASS'Y

SERIAL: 33956

-2шт.

1

2901-9034A

SEAT

SERIAL: 20001-31000

1шт.

1

901-00029

SEAT

SERIAL: 31001-32701

1шт.

2

S2209263

BOLT;SOCKET M8X1.25X30

SERIAL: 20001-31000

4шт.

2

S2209266

BOLT;SOCKET M8X1.25X30

SERIAL: 31001-32701

4шт.

3

621-01199B

PLATE;SEAT

SERIAL: 20001-33955

1шт.

3

621-01199C

PLATE;SEAT

SERIAL: 33956

1шт.

4

194-00018

RAIL;SEAT

desc: RAIL

1шт.

13

S2209063

BOLT;SOCKET M8X1.25X25

SERIAL: 20001-31000

4шт.

13

S2209066

BOLT;SOCKET M8X1.25X25

SERIAL: 31001

4шт.

16

2114-1898D4

WASHER M5

desc: RONDELLE

2шт.

23

2114-1898D2

WASHER M8

desc: RONDELLE

4шт.

26

2121-1311D2

NUT M8X1.25

desc: ECROU

8шт.

38

S0509463

BOLT M8X1.25X40

SERIAL: 20001-31000

4шт.

38

S0509453

BOLT M8X1.25X40

SERIAL: 31001

4шт.
