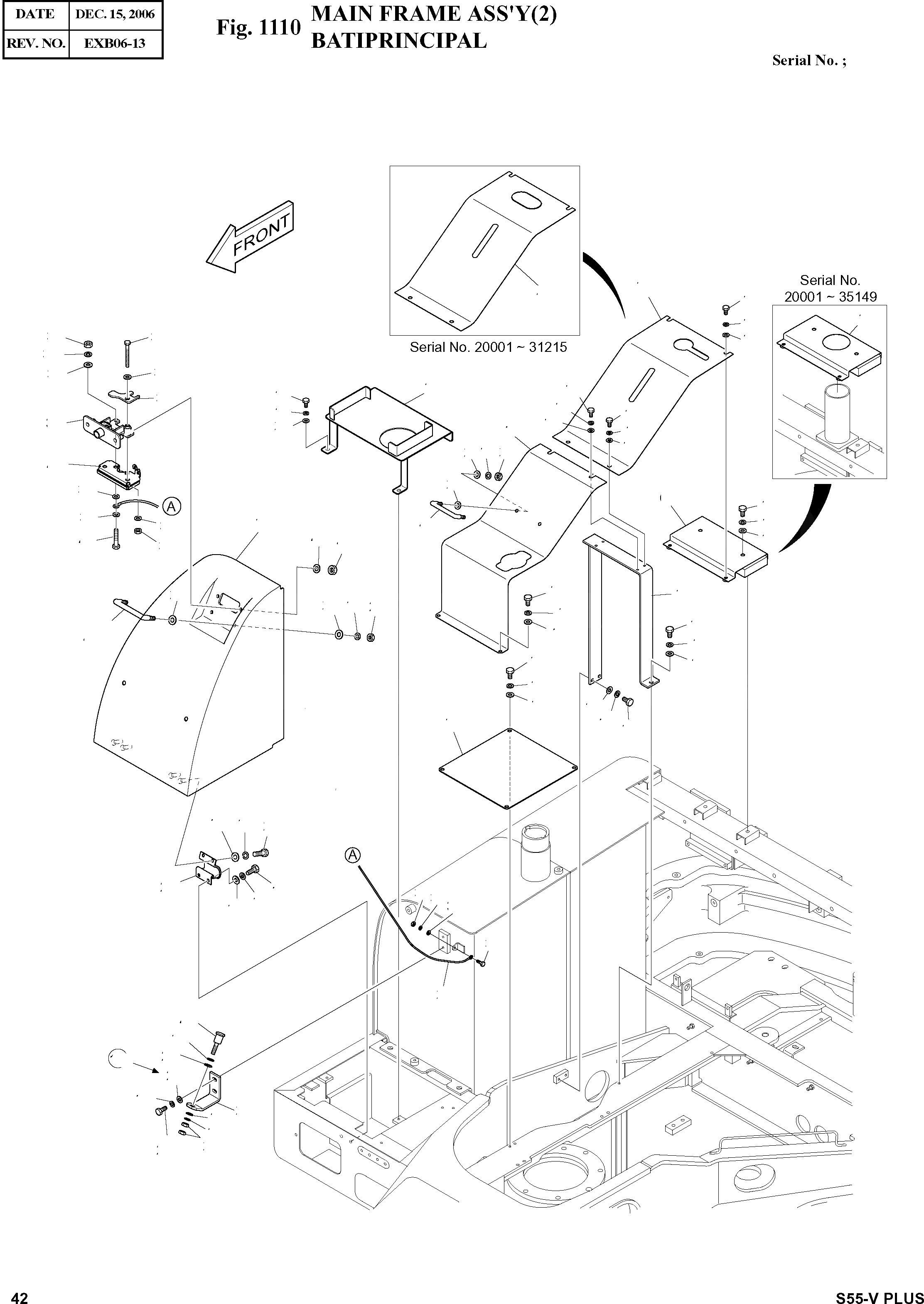

Запчасти Doosan Daewoo MAIN FRAME ASSY(2) BODY PARTS

-

600-00085A

MAIN FRAME ASS'Y

SERIAL: 20001-35149

-2шт.

-

600-00085B

MAIN FRAME ASS'Y

SERIAL: 35150

-2шт.

10

621-02217

COVER

desc: COVERCLE

1шт.

11

621-01135B

COVER

desc: COVERCLE

1шт.

12

621-01136E

COVER

SERIAL: 20001-31215

1шт.

12

621-01136G

COVER

SERIAL: 31216

1шт.

13

195-01175A

SUPPORT

desc: SUPPORT

1шт.

14

621-01141C

COVER

SERIAL: 20001-35149

1шт.

15

621-01666B

PLATE;BATTERY

desc: PLAQUE

1шт.

16

S0508653

BOLT M8X1.25X16

desc: BOULON A 6PANS

24шт.

17

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

35шт.

18

S5010513

WASHER M8

SERIAL: 20001-31040

29шт.

18

S5010513

WASHER M8

SERIAL: 31041

27шт.

19

621-01142E

COVER;FUEL PUMP

desc: COVERCLE

1шт.

20

171-00024

HINGE

SERIAL: 20001-31040

2шт.

20

171-00024A

HINGE

SERIAL: 31041

2шт.

21

195-01174

BRACKET;LATCH

desc: SUPPORT

1шт.

24

2114-1058D29

WASHER;PLAIN

SERIAL: 20001-31040

14шт.

24

2114-1058D29

WASHER;PLAIN

SERIAL: 31041

16шт.

27

S4012533

NUT M8X1.25

desc: ECROU

10шт.

28

S0508853

BOLT M8X1.25X20

desc: BOULON A 6PANS

2шт.

29

139-00032A

CABLE

desc: CABLE

1шт.

30

S0504653

BOLT M6X1.0X16

desc: BOULON A 6PANS

1шт.

31

S4012333

NUT M6X1.0

desc: ECROU

4шт.

32

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

3шт.

33

S5010313

WASHER M6

desc: RONDELLE

4шт.

36

195-00283

BRACKET;LATCH

SERIAL: 20001-32525

1шт.

36

195-03039

BRACKET;LATCH

SERIAL: 32526

1шт.

37

195-00280

BRACKET;LATCH

desc: SUPPORT

1шт.

38

S0553953

BOLT M6X1.0X65

desc: BOULON A 6PANS

1шт.

39

2114-1058D69

WASHER

desc: RONDELLE PLATE

3шт.

40

2143-1003

LATCH

desc: LOQUET

1шт.

41

S0505353

BOLT M6X1.0X35

desc: BOULON A 6PANS

2шт.

42

2142-1094

STRIKER

desc: FRAPPER

1шт.

43

172-00035

HANDLE

desc: POIGNEE

2шт.

45

S4012633

NUT M10X1.5

desc: ECROU

2шт.

46

S5010613

WASHER M10

desc: RONDELLE PLATE

2шт.

69

K1006216

COVER

SERIAL: 35150

1шт.
