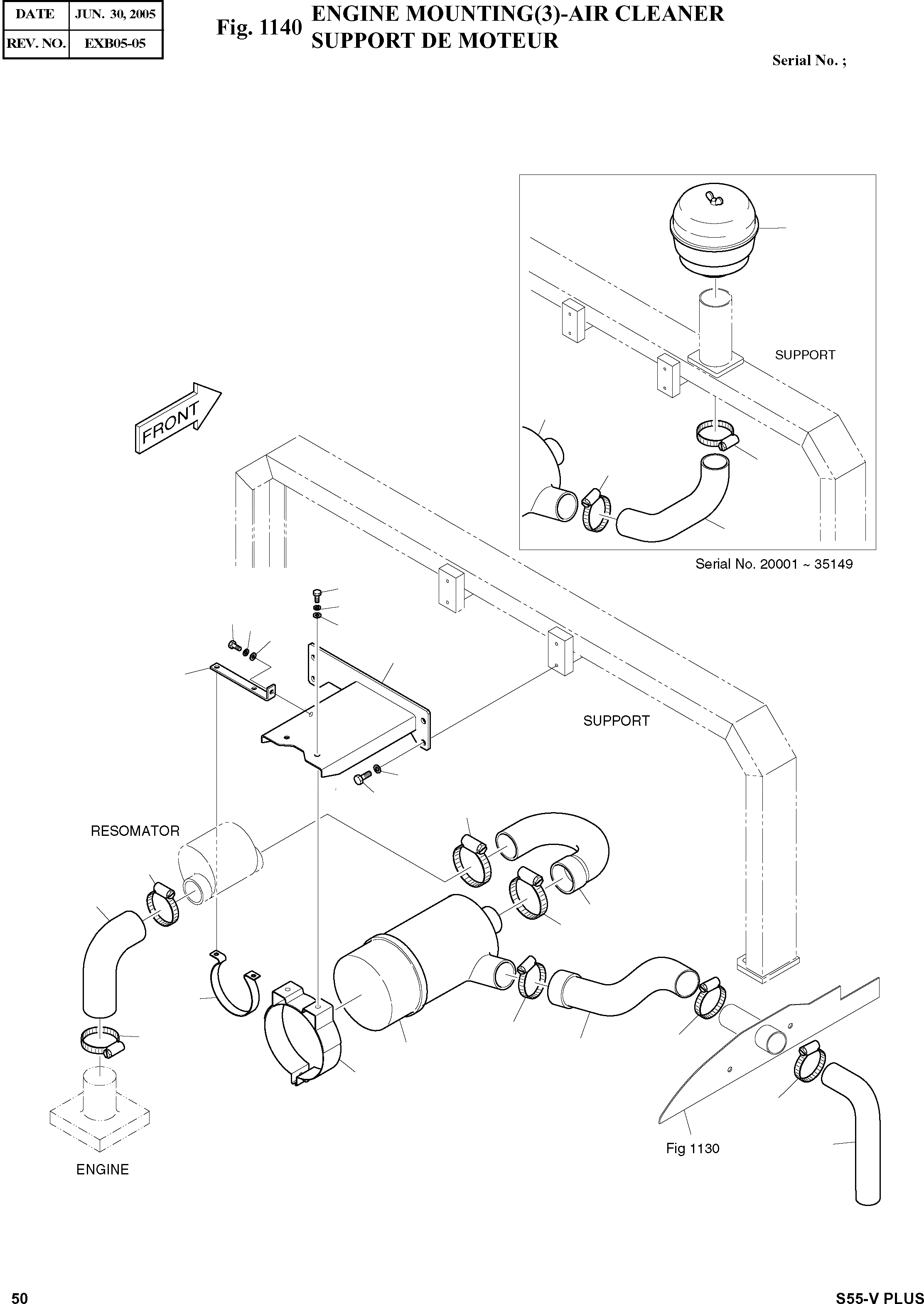

Запчасти Doosan Daewoo ENGINE MOUNTING(3)-AIR CLEANER BODY PARTS

-

201-00065A

ENGINE MOUNTING

SERIAL: 20001-35149

-2шт.

-

K1005206A

ENGINE MOUNTING

SERIAL: 35150

-2шт.

7

S0508853

BOLT M8X1.5X20

desc: BOULON A 6PANS

5шт.

8

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

5шт.

9

S5010513

WASHER M8

desc: RONDELLE

5шт.

10

204-00032

CLEANER;PRE

SERIAL: 20001-35149

1шт.

11

204-00030

CLEANER;AIR

desc: FILTRE A AIR

1шт.

11A

474-00024

ELEMENT;OUTER

desc: . ELEMENT FILTRANT

1шт.

11B

474-00025

ELEMENT;INNER

desc: . ELEMENT FILTRANT

1шт.

12

124-00188A

BAND;AIR CLEANER

desc: COLLIER

1шт.

24

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

33

S0512263

BOLT M10X1.5X30

desc: BOULON A 6PANS

4шт.

41

185-00101B

HOSE;INTAKE

SERIAL: 20001-35149

1шт.

41

K1005572A

HOSE;INTAKE

SERIAL: 35150

1шт.

42

S8450066

CLAMP;HOSE

SERIAL: 20001-35149

2шт.

42

S8450066

CLAMP;HOSE

SERIAL: 35150

3шт.

43

185-00102B

HOSE;INTAKE

desc: TUYAU FLEXIBLE

1шт.

44

S8450053

CLAMP;HOSE

desc: COLLIER

4шт.

45

185-00103A

HOSE;INTAKE

desc: TUYAU FLEXIBLE

1шт.

60

195-01089G

SUPPORT;A/C

SERIAL: 20001-31890

1шт.

60

195-02431

SUPPORT;A/C

SERIAL: 31891

1шт.

85

195-01075C

BRACKET;RESONATOR

SERIAL: 20001-31890

1шт.

85

195-02430

BRACKET;RESONATOR

SERIAL: 31891

1шт.

86

124-00090A

BAND;RESONATOR

desc: COLLIER

1шт.

97

K1005340A

HOSE;INTAKE

SERIAL: 35150

1шт.
