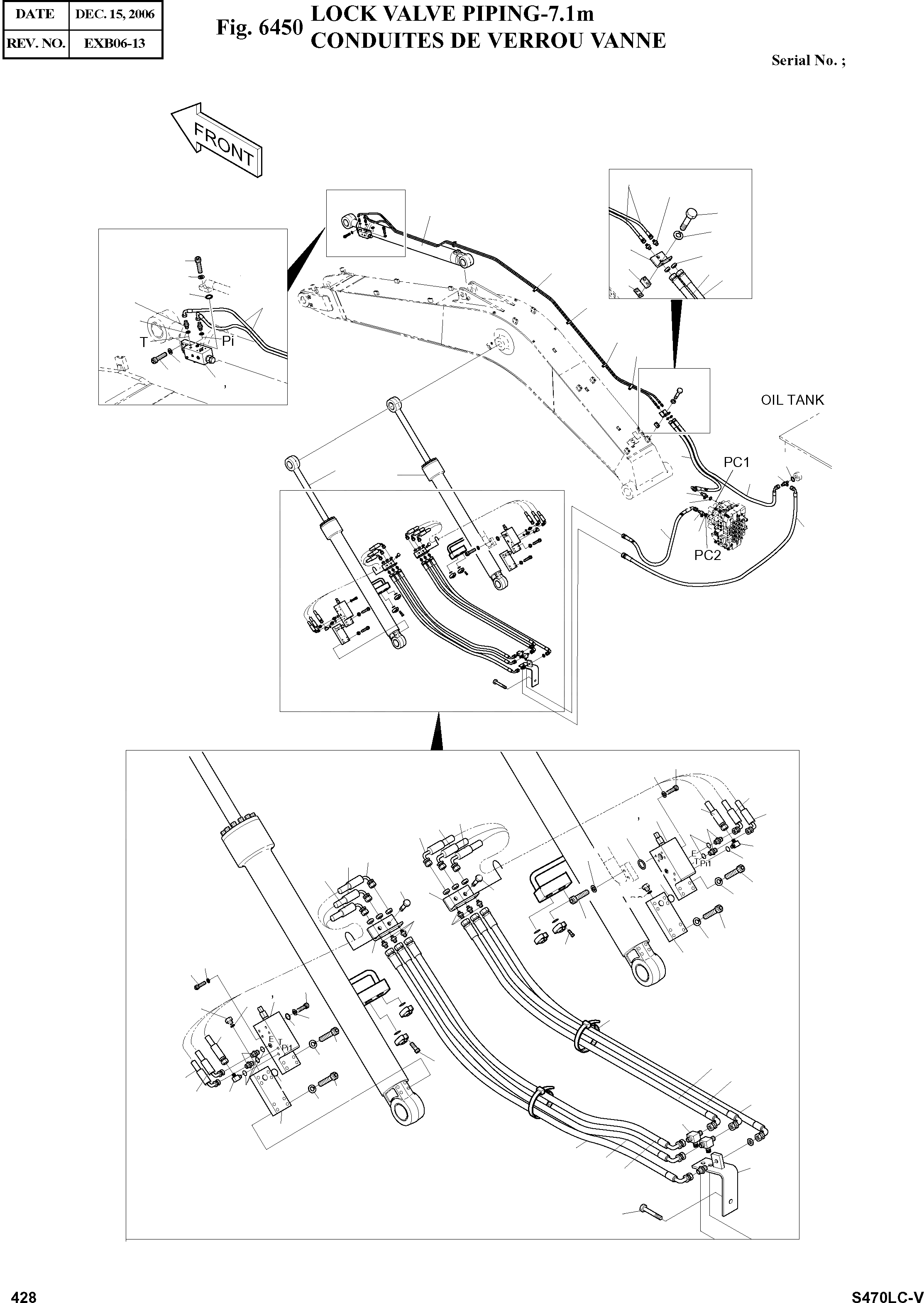

Запчасти Doosan Daewoo LOCK VALVE PIPING-7.1M OPTION PARTS

-

400-00830A

LOCK VALVE PIPING

SC: D

-2шт.

1

440-00318

CYLINDER;BOOM(L.H)

SERIAL: 1001-1702

1шт.

1

440-00318A

CYLINDER;BOOM(L.H)

SERIAL: 1703

1шт.

2

440-00319

CYLINDER;BOOM(R.H)

SERIAL: 1001-1702

1шт.

2

440-00319A

CYLINDER;BOOM(R.H)

SERIAL: 1703

1шт.

3

440-00088

CYLINDER;ARM

SERIAL: 1001-1702

1шт.

3

440-00088A

CYLINDER;ARM

SERIAL: 1001

1шт.

4

423-00030

VALVE;BLOCK

desc: BLOC

2шт.

5

420-00004A

VALVE;LOCK

desc: VANNE

2шт.

5A

K9000999

SEAL KIT

desc: . JOINT DE KIT

1шт.

6

420-00021A

VALVE;LOCK

desc: CONDUITES DE VERROU VANNE

1шт.

6A

K9001000

SEAL KIT

desc: . JOINT DE KIT

1шт.

7

195-01964

BRACKET;LOCK VALVE

desc: SUPPORT

1шт.

8

195-00335

BRACKET(L.H)

desc: SUPPORT

1шт.

9

195-00329

BRACKET(R.H)

desc: SUPPORT

1шт.

10

2114-1180D20

SHIM

desc: CALE

1шт.

11

195-00163

BRACKET

desc: SUPPORT

1шт.

12

2124-1084D2

BAND;CLIP

desc: ATTACHE

30шт.

13

124-00199D5

CLIP

desc: ATTACHE

4шт.

14

121-00010D1

NUT

desc: ECROU

2шт.

15

181-00078D5

ADAPTER PF1/4-PF3/8

desc: ADAPTEUR

2шт.

17

181-00008

TEE PF1/4-PF1/4-PF3/8

desc: TE

2шт.

19

2181-1951D16

TEE PFO3/8-PF3/8-PF3/8

desc: TE

2шт.

20

181-00020

ADAPTER;S PF1/4-PF1/4

desc: ADAPTEUR

7шт.

21

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

22

2181-1126D14

ADAPTER;S PFO1/4-PF1/4

desc: ADAPTEUR

6шт.

23

2181-1890D6

PLUG

SERIAL: 1001-1027

2шт.

23

2181-1890D9

PLUG

SERIAL: 1028

2шт.

24

S5110803

WASHER;SPRING M14

desc: RONDELLE ELASTIQUE

8шт.

25

S8000341

O-RING

desc: JONT TORIQUE

2шт.

26

S8000401

O-RING

desc: JONT TORIQUE

1шт.

27

S8000111

O-RING

desc: JONT TORIQUE

9шт.

28

S8000141

O-RING

desc: JONT TORIQUE

2шт.

29

S8000291

O-RING

desc: JONT TORIQUE

2шт.

30

2180-1026D19

O-RING

desc: JONT TORIQUE

2шт.

31

S0566666

BOLT M16X2.0X120

desc: BOULON A 6PANS

1шт.

32

S0515353

BOLT M12X1.75X35

desc: BOULON A 6PANS

4шт.

33

S0563366

BOLT M14X2.0X70

desc: BOULON A 6PANS

2шт.

34

S0515053

BOLT M12X1.75X25

desc: BOULON A 6PANS

2шт.

35

S2215766

BOLT;SOCKET M12X1.75X55

desc: BOULON A 6 PANS CREUX

16шт.

36

S2215966

BOLT;SOCKET M12X1.75X65

desc: BOULON A 6 PANS CREUX

8шт.

37

S2218966

BOLT;SOCKET M14X2.0X65

desc: BOULON A 6 PANS CREUX

8шт.

38

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

39

S5110703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

24шт.

40

S5102803

WASHER;SPRING M14

desc: RONDELLE ELASTIQUE M14

2шт.

42

DS2055734

HOSE PF3/8-1700L

SERIAL: 1001-1027

1шт.

42

DS2055733

HOSE PF3/8-1700L

SERIAL: 1028

1шт.

43

DS2055744

HOSE PF1/4-6400L

desc: TUYAU FLEXIBLE

2шт.

44

2184-1046D238

HOSE PF3/8-2300L

desc: TUYAU FLEXIBLE

1шт.

45

2184-1046D226

HOSE PF3/8-2900L

desc: TUYAU FLEXIBLE

1шт.

46

2184-1060D45

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

2шт.

47

2184-1060D48

HOSE PF1/4-1050L

desc: TUYAU FLEXIBLE

2шт.

48

2184-1060D221

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

2шт.

49

2184-1061D335

HOSE PF1/4-680L

desc: TUYAU FLEXIBLE

2шт.

50

2184-1046D35

HOSE PF1/4-680L

desc: TUYAU FLEXIBLE

2шт.

51

2184-1061D336

HOSE PF1/4-580L

desc: TUYAU FLEXIBLE

2шт.

52

S2215666

BOLT;SOCKET M12X1.75X50

desc: BOULON A 6 PANS CREUX

8шт.

53

2184-1046D227

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

54

2181-1951D20

TEE

desc: TE

1шт.

55

2114-1180D15

SHIM T=3.2

desc: CALE

1шт.
