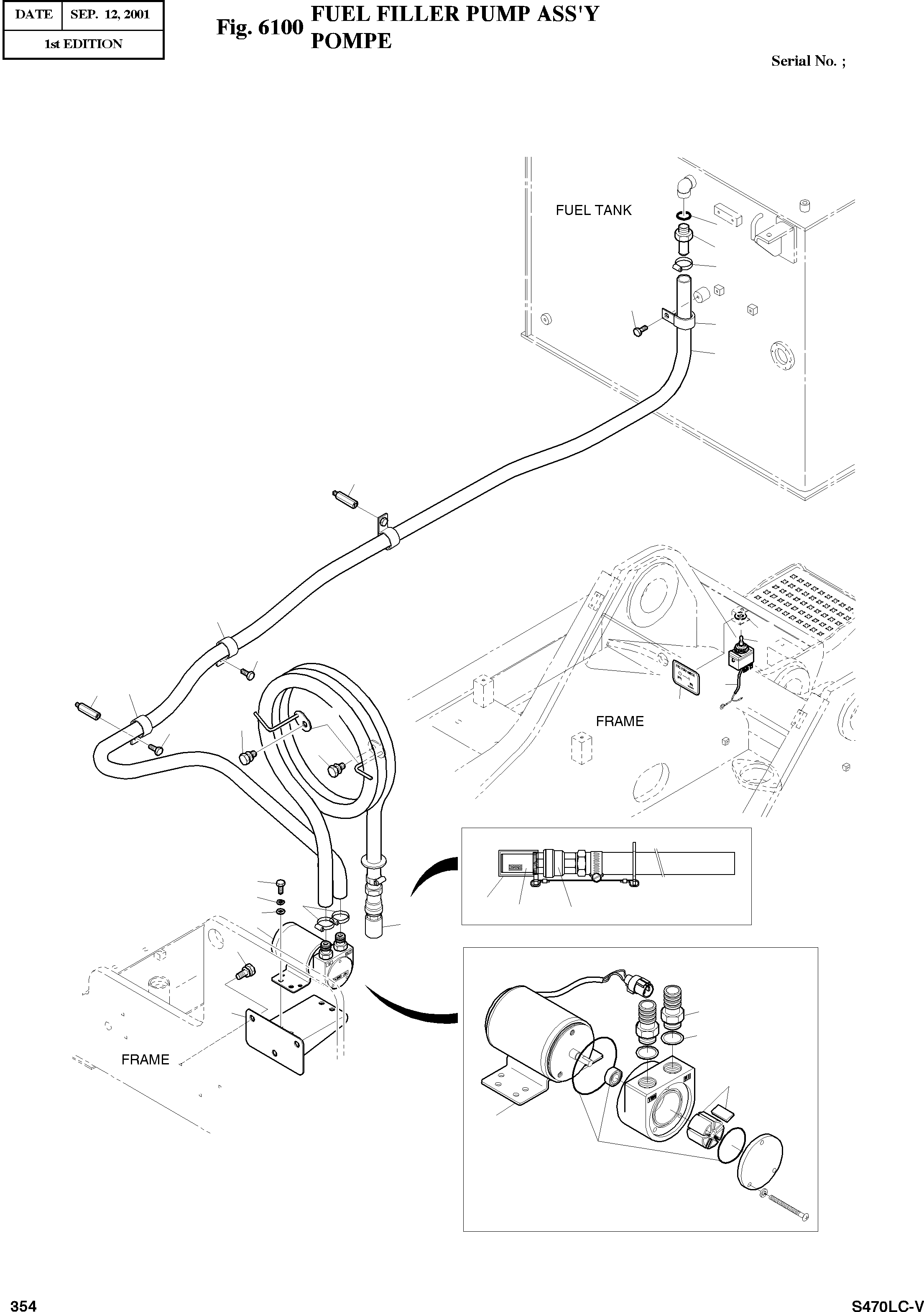

Запчасти Doosan Daewoo FUEL FILLER PUMP ASSY OPTION PARTS

-

401-00295

FUEL FILLER PUMP ASS'Y-OPT

SC: D

-2шт.

1

401-00238

PUMP;FUEL TRANSFER

desc: POMPE

1шт.

1A

2181-2755B

ADAPTER

desc: . RACCORD ADAPTATEUR

2шт.

1B

S8180321

SEAL;WASHER

desc: . BAGUE D'ETANCHEITE

2шт.

1C

523-00012

MOTOR;FUEL TRANSFER PUMP

desc: . MOTEUR

1шт.

1D

407-00001

VANE KIT

desc: . KIT DE VANE

1шт.

1E

2401-1276KT

SEAL KIT

desc: . KIT D'ETANCHEITE

1шт.

2

195-01628

BRACKET;FUEL PUMP

desc: SUPPORT

1шт.

3

2120-2196D10

BOLT;SET M12X1.75X30

desc: BOULON A 6 PANS

3шт.

4

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

4шт.

5

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

6

2181-2104D6

ADAPTER

desc: RACCORD ADAPTEUR

1шт.

7

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

8

S8450023

CLAMP;HOSE

desc: COLLIER

3шт.

9

2185-1247D148

HOSE 3000L

desc: TUYAU FLEXIBLE

1шт.

10

120-00276

BOLT;SET M12X1.25X12

desc: BOULON A 6 PANS

2шт.

11

185-00167D3

HOSE ASS'Y

desc: TUYAU FLEXIBLE

1шт.

11A

2420-1258

VALVE;CHECK

desc: . CARTOUCHE DE VANNE

1шт.

11B

2471-1152

STRAINER

desc: . FILTRE

1шт.

11C

2160-1336

CAP;STRAINER

desc: . CHAPEAU

1шт.

12

195-01630

BRACKET

desc: SUPPORT

2шт.

13

2549-9096

SWITCH;TOGGLE

desc: INTERRUPTEUR

1шт.

14

2114-1683

WASHER;TOGGLE SWITCH

desc: RONDELLE ELASTIQUE

1шт.

15

190-00519

PLATE;NAME

desc: PLAQUE D'IDENTIFICATION

1шт.

16

124-00208D5

CLIP

desc: ATTACHE

2шт.

17

2120-2187

BOLT;STUD M8X1.25

desc: BOULON A 6 PANS

3шт.

18

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

4шт.

19

530-00214

HARNESS;TOGGLE SWITCH

desc: FAISCEAU

1шт.
