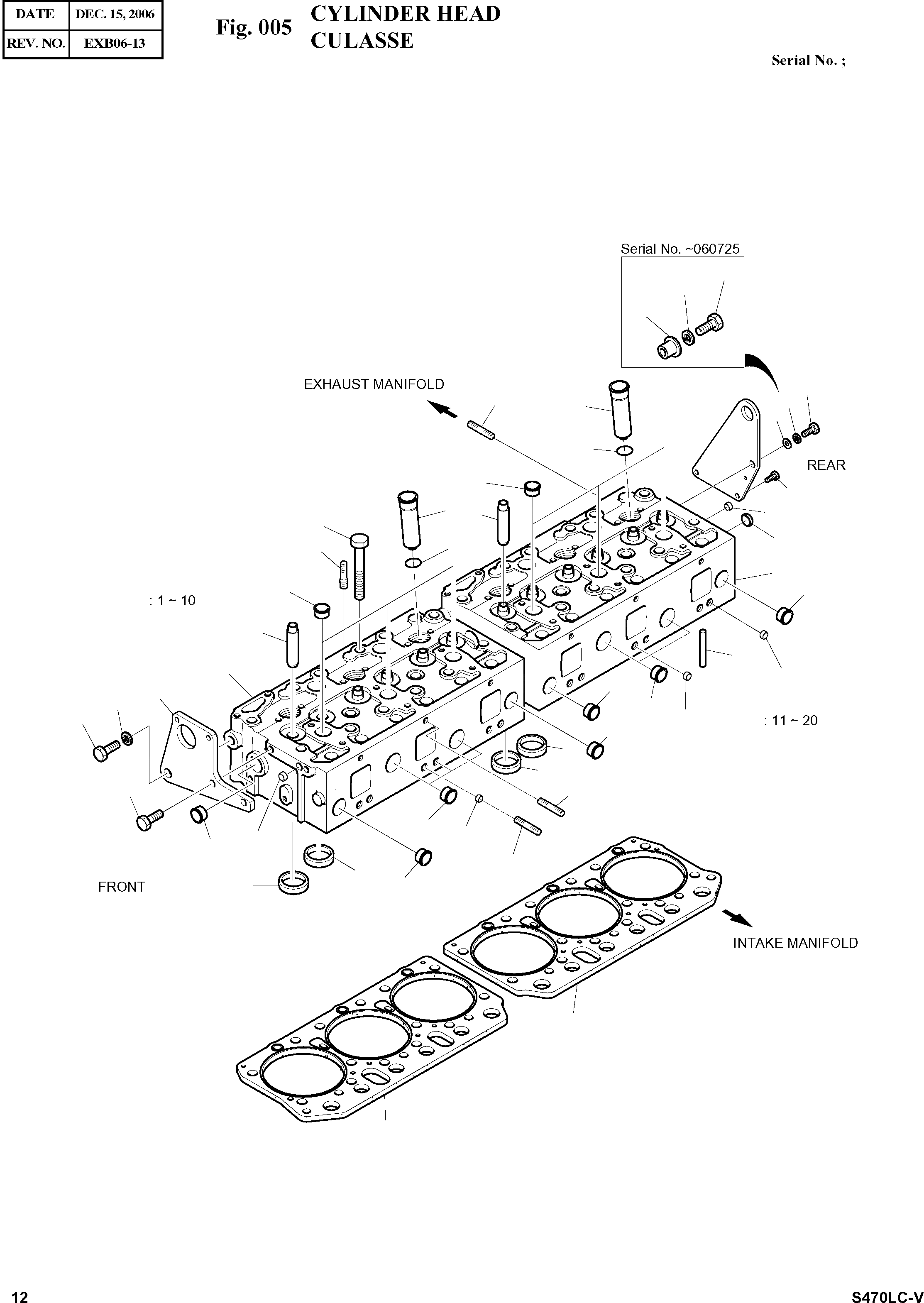

Запчасти Doosan Daewoo CYLINDER HEAD ENGINE PARTS

A

65.03101-6604C

CYLINDER HEAD ASS'Y

SERIAL: 011106

1шт.

A

65.03101-6604D

CYLINDER HEAD ASS'Y

SERIAL: 030409

1шт.

A

65.03101-6604E

CYLINDER HEAD ASS'Y(FR)

SERIAL: 040827

1шт.

A

65.03101-6084

CYLINDER HEAD ASS'Y

SERIAL: 040924

1шт.

A

65.03101-6084A

CYLINDER HEAD ASS'Y

SERIAL: 051130

1шт.

A

65.03101-6084B

CYLINDER HEAD ASS'Y

SERIAL: 051131

1шт.

1

65.03101-0003E

HEAD;CYLINDER

SERIAL: 011106

1шт.

1

65.03101-0003F

HEAD;CYLINDER

SERIAL: 030409

1шт.

1

65.03101-0003G

HEAD;CYLINDER

SERIAL: 040827

1шт.

1

65.03101-1064

HEAD;CYLINDER

SERIAL: 051130

1шт.

1

65.03101-1064A

HEAD;CYLINDER

SERIAL: 051131

1шт.

2

65.03205-0002

NOZZLE;TUBE

desc: . CONTUITES

3шт.

3

65.96501-0069

O-RING

desc: . JONT TORIQUE

3шт.

4

65.90302-0041

PLUG;CORE

desc: . BOUCHON DE DESSABLAGE

9шт.

5

65.91001-0002

PLUG;CORE

desc: . BOUCHON DE DESSABLAGE

1шт.

6

65.90302-0042

PLUG;CORE

desc: . BOUCHON DE DESSABLAGE

2шт.

7

65.03201-1008E

GUIDE;VALVE

SERIAL: 040924

6шт.

7

65.03201-1008F

GUIDE;VALVE

SERIAL: 040925

6шт.

8

65.03203-1044

RING;VALVE SEAT(EXHAUST)

SC: B

3шт.

9

65.03203-1043

RING;VALVE SEAT(INTAKE)

SC: B

3шт.

10

65.90302-0049

PLUG;CORE

desc: . BOUCHON

3шт.

B

65.03101-6605C

CYLINDER HEAD ASS'Y

SERIAL: 011106

1шт.

B

65.03101-6605D

CYLINDER HEAD ASS'Y

SERIAL: 030409

1шт.

B

65.03101-6605E

CYLINDER HEAD ASS'Y

SERIAL: 040827

1шт.

B

65.03101-6085

CYLINDER HEAD ASS'Y

SERIAL: 040924

1шт.

B

65.03101-6085A

CYLINDER HEAD ASS'Y

SERIAL: 051130

1шт.

B

65.03101-6085B

CYLINDER HEAD ASS'Y

SERIAL: 051131

1шт.

11

65.03101-0004E

HEAD;CYLINDER

SERIAL: 011106

1шт.

11

65.03101-0004F

HEAD;CYLINDER

SERIAL: 030409

1шт.

11

65.03101-0004G

HEAD;CYLINDER

SERIAL: 040828

1шт.

11

65.03101-1065

HEAD;CYLINDER

SERIAL: 051130

1шт.

11

65.03101-1065A

HEAD;CYLINDER

SERIAL: 051131

1шт.

12

65.03205-0002

NOZZLE;TUBE

desc: . CONTUITES

3шт.

13

65.96501-0069

O-RING

desc: . JONT TORIQUE

3шт.

14

65.90302-0041

PLUG;CORE

desc: . BOUCHON DE DESSABLAGE

9шт.

15

65.91001-0002

PLUG;CORE

desc: . BOUCHON DE DESSABLAGE

1шт.

16

65.90302-0042

PLUG;CORE

desc: . BOUCHON DE DESSABLAGE

2шт.

17

65.03201-1008E

GUIDE;VALVE

SERIAL: 040924

6шт.

17

65.03201-1008F

GUIDE;VALVE

SERIAL: 040925

6шт.

18

65.03203-1044

RING;VALVE SEAT(EXHAUST)

SC: B

3шт.

19

65.03203-1043

RING;VALVE SEAT(INTAKE)

SC: B

3шт.

20

65.90302-0049

PLUG;CORE

desc: . BOUCHON

3шт.

21

65.90201-0186

BOLT;STUD M6XM8

SERIAL: 020304

12шт.

21

65.90201-0106

BOLT;STUD M6XM8

SERIAL: 020305

12шт.

22

65.90021-0001

BOLT;COLLARED HEX

SERIAL: 011106

28шт.

22

65.90021-0001A

BOLT;COLLARED HEX

SERIAL: 031020

28шт.

22

65.90021-0005

BOLT;COLLARED HEX

SERIAL: 031021

28шт.

23

65.90201-0094

BOLT;STUD

desc: BOULON DE PLOT

6шт.

24

65.90201-0154

BOLT;STUD M12X1.5X10

desc: BOULON DE PLOT

6шт.

25

65.90201-0080

BOLT;STUD

desc: BOULON DE PLOT

2шт.

26

65.03901-0063

GASKET;CYLINDER HEAD(FRONT)

SERIAL: 020409

1шт.

26

65.03901-0063A

GASKET;CYLINDER HEAD(FRONT)

SERIAL: 031020

1шт.

26

REP_PNO: 65.90021-0005

-1шт.

26

65.03901-0063B

GASKET;CYLINDER HEAD(FRONT)

SERIAL: 051017

1шт.

26

65.03901-0072

GASKET;CYLINDER HEAD(FRONT)

SERIAL: 051018

1шт.

27

65.03901-0064

GASKET;CYLINDER HEAD(REAR)

SERIAL: 020409

1шт.

27

65.03901-0064A

GASKET;CYLINDER HEAD(REAR)

SERIAL: 031020

1шт.

27

65.03901-0064B

GASKET;CYLINDER HEAD(REAR)

SERIAL: 051017

1шт.

27

65.03901-0073

GASKET;CYLINDER HEAD(REAR)

SERIAL: 051018

1шт.

28

65.91001-0013

SEAL

SERIAL: 051130

2шт.

28

65.91001-0013A

SEAL

SERIAL: 051131

2шт.

29

06.22022-0907

PIN;DOWEL M6X10

SERIAL: 060725

4шт.

29

06.22022-0909

PIN;DOWEL M6X14

SERIAL: 060726

4шт.

30

65.19202-0035

HOOK;LIFTING

desc: CROCHET

1шт.

31

06.01913-3217

BOLT ASS'Y M10X30

desc: BOULON A 6PANS

1шт.

32

06.01734-4411

BOLT;HEX M14X1.5X30

desc: BOULON A 6PANS

1шт.

33

06.16731-2110

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

34

06.01494-4408

BOLT;HEX M14X1.5X45

SERIAL: 060725

1шт.

34

06.01494-4406

BOLT;HEX M14X1.5X35

SERIAL: 060726

1шт.

35

06.16731-2110

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

36

65.91701-0275

SPACER

SERIAL: 060725

1шт.

36

65.19202-0064

HOOK;LIFTING

SERIAL: 060726

1шт.

37

65.91001-0004

PIN;CORE

SERIAL: 051131

6шт.

38

65.91701-0246

SPACER

SERIAL: 060726

1шт.

39

06.01914-3215

BOLT ASS'Y M10X25

SERIAL: 060726

2шт.
