Запчасти Doosan Daewoo PILOT PIPING(2) BODY PARTS

-

400-00697

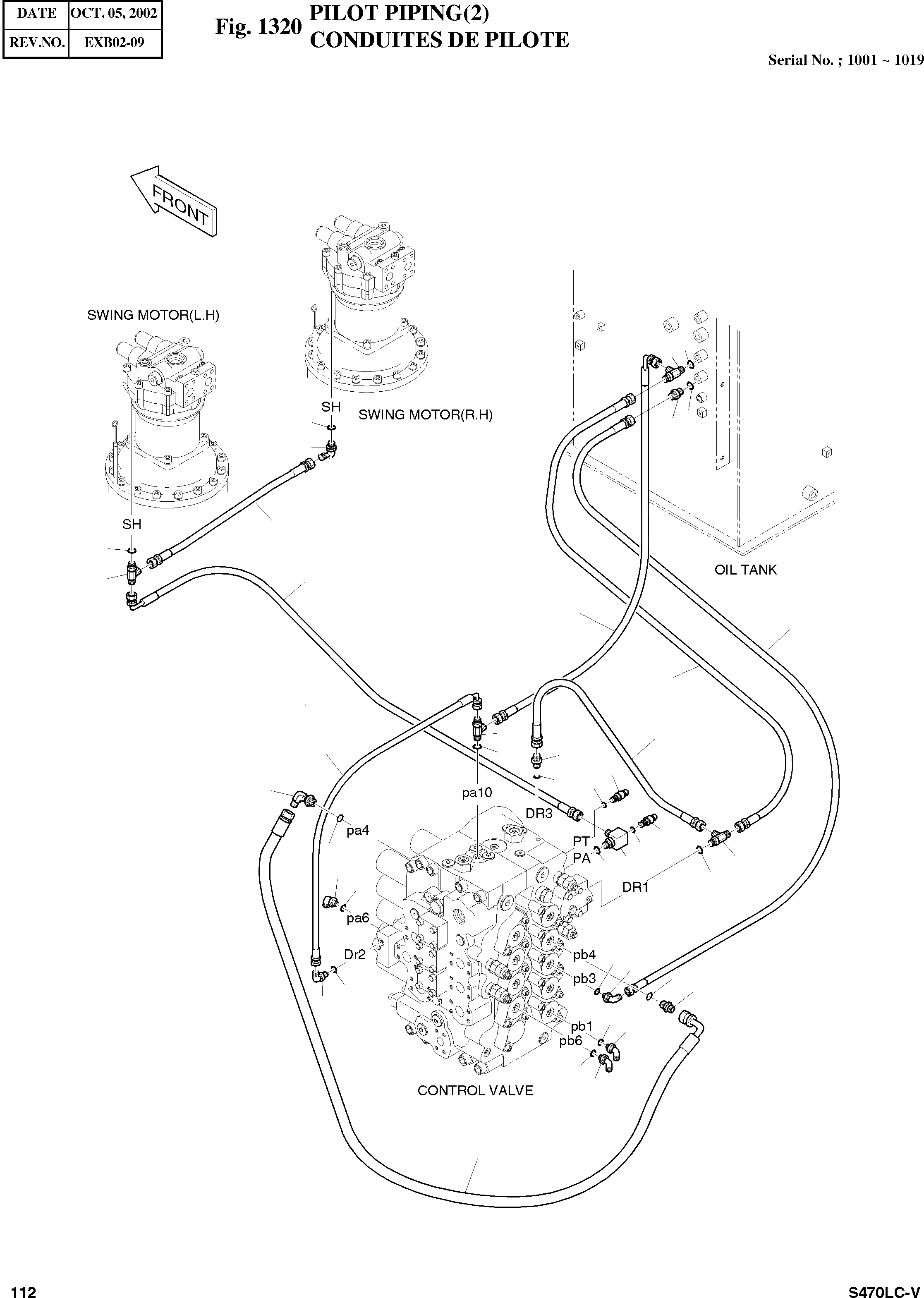

PILOT PIPING

SC: D

-2шт.

23

S8000111

O-RING

desc: JONT TORIQUE

9шт.

25

S8000141

O-RING

desc: JONT TORIQUE

8шт.

30

2181-1951D7

TEE PFO3/8-2PF1/4

desc: TE

1шт.

33

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: ADAPTEUR

2шт.

34

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTEUR

1шт.

35

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

3шт.

39

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

40

2181-1702D5

ELBOW PFO3/8-PF/8

desc: COUDE EN S

2шт.

42

2181-1951D1

TEE PFO1/4-2PF1/4

desc: TE

3шт.

47

2181-2760

TEE 2PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

49

2549-9112

SWITCH;PRESSURE

desc: INTERRUPTEUR

2шт.

59

2184-1060D48

HOSE PF1/4-1050L

desc: TUYAU FLEXIBLE

1шт.

72

2184-1045D42

HOSE PF1/4-420L

desc: TUYAU FLEXIBLE

1шт.

73

2184-1046D206

HOSE PF1/4-550L

desc: TUYAU FLEXIBLE

1шт.

74

2184-1046D133

HOSE PF1/4-625L

desc: TUYAU FLEXIBLE

1шт.

75

2184-1045D226

HOSE PF3/8-570L

desc: TUYAU FLEXIBLE

1шт.

76

2184-1060D69

HOSE PF1/4-400L

desc: TUYAU FLEXIBLE

1шт.

77

2184-1046D197

HOSE PF1/4-300L

desc: TUYAU FLEXIBLE

1шт.

78

2184-1046D237

HOSE PF3/8-1100L

desc: TUYAU FLEXIBLE

1шт.
