Запчасти Doosan Daewoo PROPELLING PIPING TRACK PARTS

-

2400-2180A

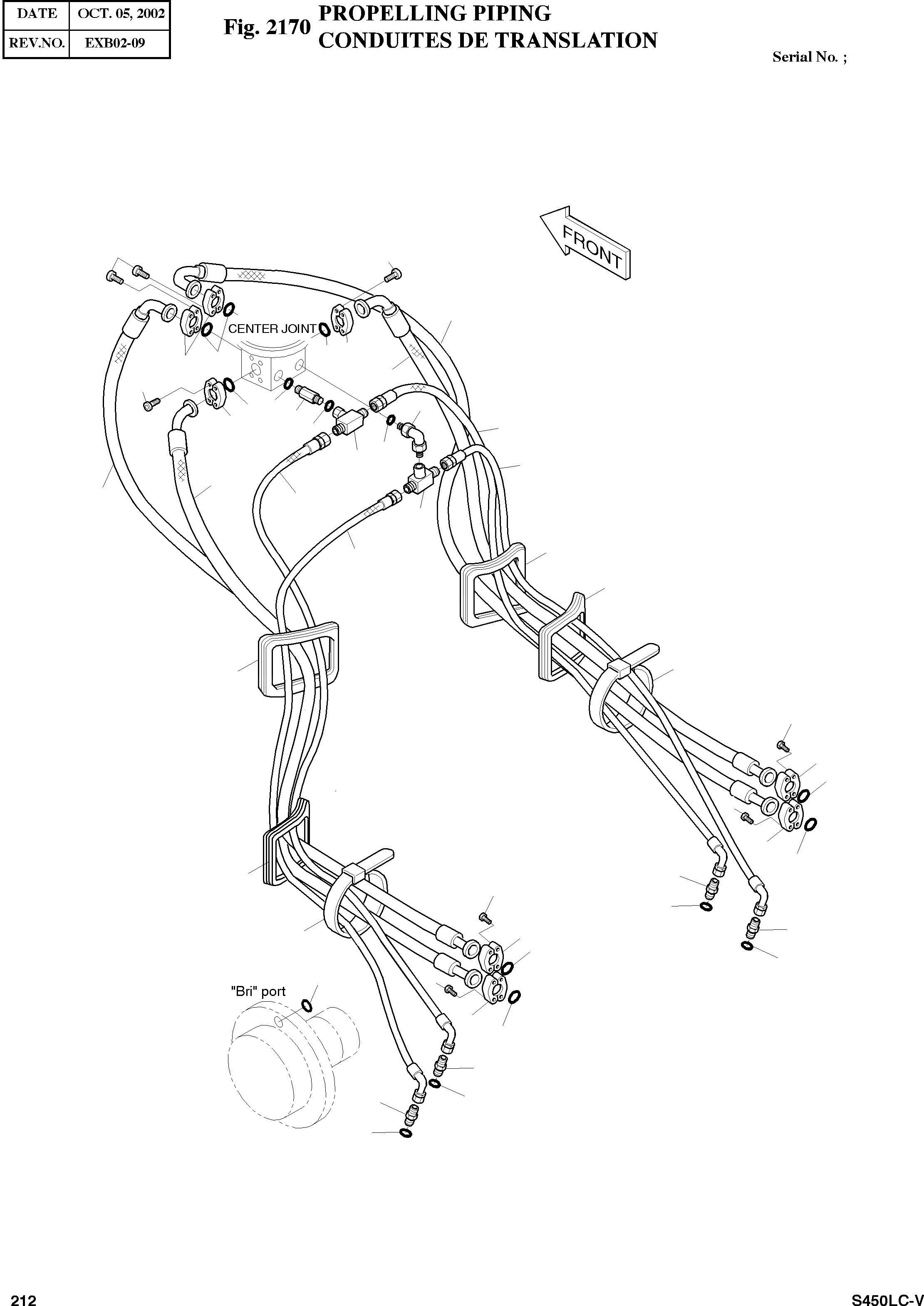

PROPELLING PIPING

SC: D

-2шт.

1

2184-1100D203

HOSE

desc: TUYAU FLEXIBLE

2шт.

2

2184-1098D77

HOSE

desc: TUYAU FLEXIBLE

2шт.

3

2184-1036D292

HOSE PF1/2-2800L

desc: TUYAU FLEXIBLE

2шт.

4

2184-1036D23

HOSE PF3/8-2800L

desc: TUYAU FLEXIBLE

2шт.

5

2160-4023

BUSHING;RUBBER

desc: MANCHON

4шт.

6

2181-9081

FLANGE;SPLIT

desc: BRIDE

8шт.

7

2181-9086

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.

8

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.

9

2180-1026D23

O-RING

desc: JOINT TORIQUE

4шт.

10

S8000231

O-RING

desc: JOINT TORIQUE

1шт.

11

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

12

S8030041

O-RING

desc: JOINT TORIQUE

2шт.

13

S8180441

SEAL;RING

desc: RONDELLE

2шт.

14

S8180211

SEAL;RING

desc: RONDELLE

2шт.

15

2181-1702D70

ELBOW PFO3/4XPF1/2

desc: COUDE

1шт.

16

2181-4124

TEE PF1/2

desc: TE

1шт.

17

2181-2281D13

TEE PFO3/8X2PF3/8

desc: TE

1шт.

18

2181-1917D49

ADAPTER M26X1.5-PF1/2

desc: RACCORD

2шт.

19

2181-4245

ADAPTER M14X1.5-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

20

S2215461

BOLT;SOCKET M12X1.75X40

SERIAL: 1001-1064

16шт.

20

S2215466

BOLT;SOCKET M12X1.75X40

SERIAL: 1065

16шт.

21

S2218461

BOLT;SOCKET M14X2.0X40

SERIAL: 1001-1064

16шт.

21

S2218466

BOLT;SOCKET M14X2.0X40

SERIAL: 1065

16шт.

22

2124-1084D1

BAND;CLIP

desc: CLIP

10шт.

23

2181-2337D12

REDUCER PFO3/8XPF3/8

desc: REDUCTEUR

1шт.
