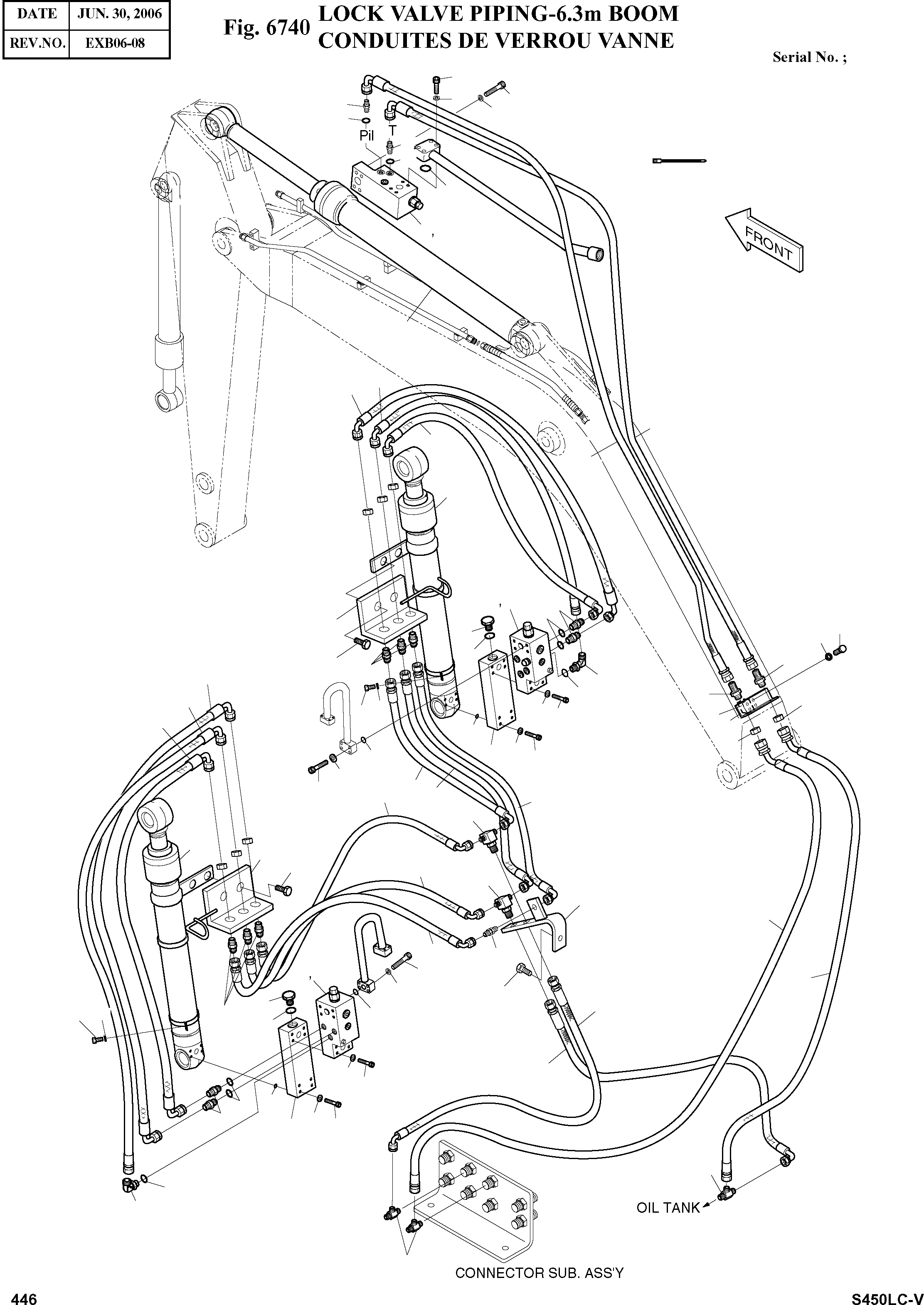

Запчасти Doosan Daewoo LOCK VALVE PIPING-6.3M BOOM OPTION PARTS

-

400-00200

LOCK VALVE PIPING-6.3m BOOM

SC: D

-2шт.

1

420-00004A

VALVE;LOCK

desc: VANNE

2шт.

1A

K9000999

SEAL KIT

desc: . KIT DE JOINT

1шт.

2

420-00021A

VALVE;LOCK

desc: CONDUITES DE VERROU VANNE

1шт.

2A

K9001000

SEAL KIT

desc: . KIT DE JOINT

1шт.

3

S2215766

BOLT;SOCKET M12X1.75X55

desc: BOULON A 6PANS

16шт.

4

S5110703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

24шт.

5

S2218966

BOLT;SOCKET M14X2.0X65

desc: BOULON A 6 PANS

4шт.

6

S8000341

O-RING

desc: JONT TORIQUE

2шт.

7

181-00008

TEE

desc: TE

2шт.

8

S5110803

WASHER

desc: RONDELLE ELASTIQUE

8шт.

9

S2218966

BOLT;SOCKET M14X2.0X65

desc: BOULON A 6 PANS

4шт.

10

S8000401

O-RING

desc: JONT TORIQUE

1шт.

11

2181-1702D4

ELBOW 2PF1/4

desc: COUDE

2шт.

12

S8000111

O-RING

desc: JONT TORIQUE

8шт.

13

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTEUR

6шт.

14

181-00078D5

ADAPTER

desc: ADAPTEUR

2шт.

15

195-00163

BRACKET

desc: SUPPORT

1шт.

16

S0563366

BOLT M14X2.0X70

desc: BOULON A 6 PANS

2шт.

17

S5102803

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

18

2181-1951D16

TEE

desc: TE

1шт.

19

2124-1084D2

CLIP;BAND 150L

desc: ATTACHE

30шт.

20

181-00020

ADAPTER

desc: ADAPTEUR

7шт.

21

S0561753

BOLT M12X1.75X100

desc: BOULON A 6PANS

1шт.

22

2114-1180D20

SHIM

desc: CALE

1шт.

23

195-00340

BRACKET

desc: SUPPORT

1шт.

24

195-00329

BRACKET

desc: SUPPORT

1шт.

25

S0515353

BOLT M12X1.75X35

desc: BOULON A 6PANS

4шт.

26

2184-1046D269

HOSE PF1/4-6100L

desc: TUYAU FLEXIBLE

2шт.

27

2184-1046D35

HOSE PF1/4-680L

desc: TUYAU FLEXIBLE

2шт.

28

2184-1061D336

HOSE PF1/4-580L

desc: TUYAU FLEXIBLE

2шт.

29

2184-1060D221

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

2шт.

30

2184-1060D48

HOSE PF1/4-1050L

desc: TUYAU FLEXIBLE

2шт.

31

2184-1060D45

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

2шт.

32

2184-1060D151

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

33

2184-1060D147

HOSE PF3/8-2200L

desc: TUYAU FLEXIBLE

1шт.

34

2184-1060D155

HOSE PF3/8-1550L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1060D147

HOSE PF3/8-2200L

desc: TUYAU FLEXIBLE

1шт.

36

440-00086

CYLINDER;BOOM(R.H)

desc: VERIN DE FLECHE

1шт.

37

440-00087

CYLINDER;BOOM(L.H)

desc: VERIN DE FLECHE

1шт.

38

440-00089

CYLINDER;ARM

desc: VERIN DE BALANCIER

1шт.

39

423-00030

BLOCK;VALVE

desc: BLOC

2шт.

40

S2215966

BOLT;SOCKET

desc: BOULON A 6 PANS

8шт.

41

2181-1890D6

PLUG

desc: BOUCHON

2шт.

42

S8000291

O-RING

desc: JONT TORIQUE

2шт.

43

2180-1026D19

O-RING

desc: JONT TORIQUE

2шт.

44

195-00335

BRACKET

desc: SUPPORT

1шт.

45

S0515053

BOLT M12X1.75X25

desc: BOULON A 6PANS

2шт.

46

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

47

2184-1061D335

HOSE PF1/4-680L

desc: TUYAU FLEXIBLE

2шт.

48

121-00010D1

NUT

desc: ECROU

2шт.

49

DS2458001

TEE

desc: TE

2шт.
