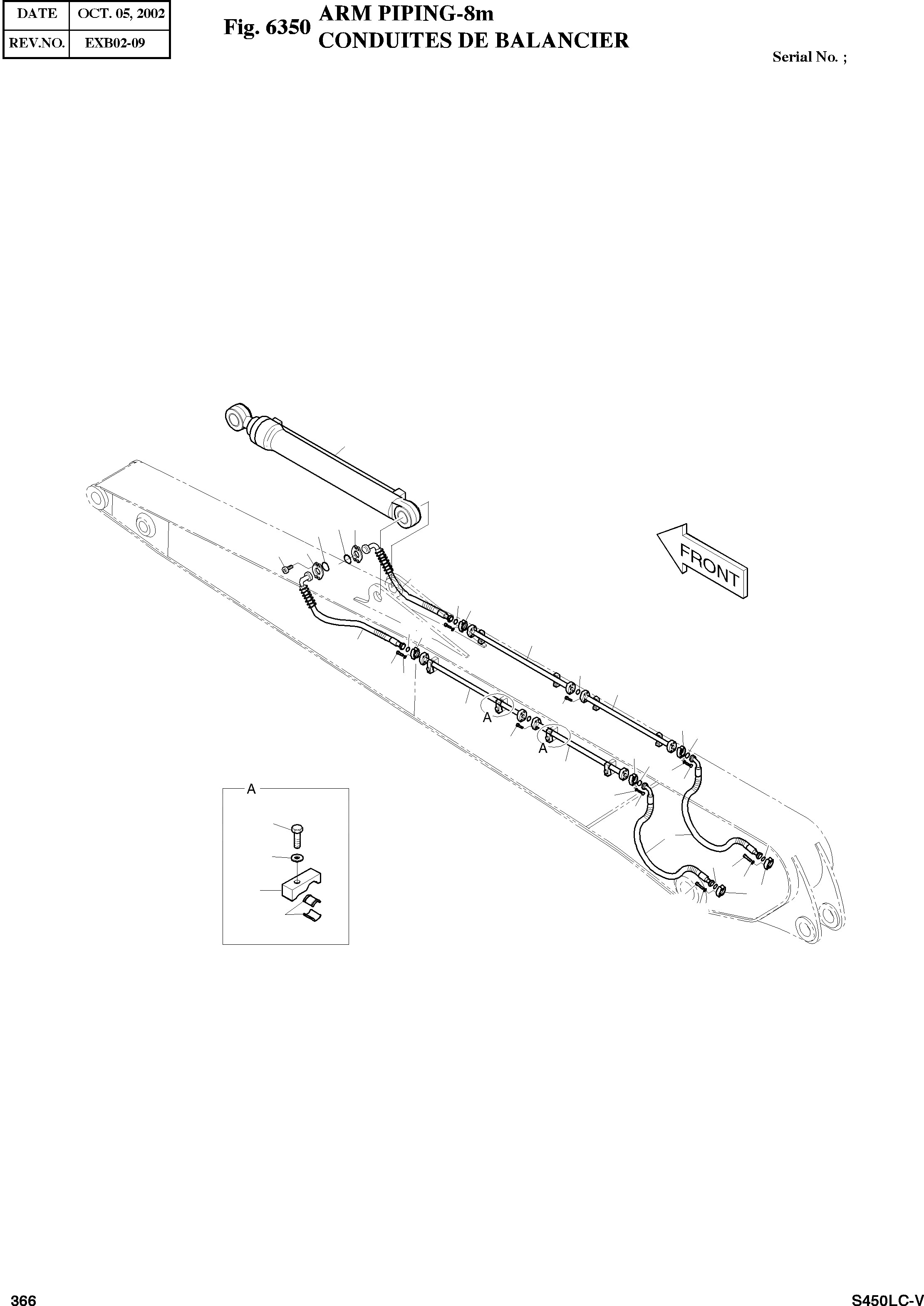

Запчасти Doosan Daewoo ARM PIPING-8M OPTION PARTS

-

400-00187A

ARM PIPING

SC: D

-2шт.

1

DS2040271

HOSE

desc: TUYAU FLEXIBLE

2шт.

2

140-00106

PIPE

desc: TUYAU

2шт.

3

DS2040273

HOSE

desc: TUYAU FLEXIBLE

2шт.

4

440-00059

CYLINDER;BUCKET

desc: VERIN DE GODET

1шт.

5

2181-9079

FLANGE

desc: FLASQUE EN DEUX PARTIES

4шт.

6

2181-9081

FLANGE;SPLIT

desc: BRIDE

8шт.

7

2181-9086

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.

8

S2212361

BOLT;SOCKET M10X1.5X35

SERIAL: 1001-1064

8шт.

8

S2212366

BOLT;SOCKET M10X1.5X35

SERIAL: 1065

8шт.

9

S2215361

BOLT;SOCKET M12X1.75X35

SERIAL: 1001-1064

24шт.

9

S2215366

BOLT;SOCKET M12X1.75X35

SERIAL: 1065

24шт.

10

S2218761

BOLT;SOCKET M14X2.0X55

SERIAL: 1001-1064

8шт.

10

S2218766

BOLT;SOCKET M14X2.0X55

SERIAL: 1065

8шт.

11

S0565661

BOLT M16X2.0X70

SERIAL: 1001-1064

8шт.

11

S0565666

BOLT M16X2.0X70

SERIAL: 1065

8шт.

12

S5110701

WASHER;SPRING

SERIAL: 1001-1064

16шт.

12

S5110703

WASHER;SPRING

SERIAL: 1065

16шт.

13

S5110801

WASHER;SPRING

SERIAL: 1001-1064

8шт.

13

S5110803

WASHER;SPRING

SERIAL: 1065

8шт.

14

S5102901

WASHER;SPRING

SERIAL: 1001-1064

8шт.

14

S5102903

WASHER;SPRING

SERIAL: 1065

8шт.

15

2180-1026D2

O-RING

desc: JOINT TORIQUE

2шт.

16

2180-1026D19

O-RING

desc: JOINT TORIQUE

6шт.

17

2180-1026D23

O-RING

desc: JOINT TORIQUE

2шт.

18

2124-1586A

CLAMP;PIPE

desc: ATTACHE DE TUBE

8шт.

19

161-00102

RUBBER

desc: CAOUTCHOUC

16шт.

20

140-00790

PIPE

desc: TUYAU

2шт.
