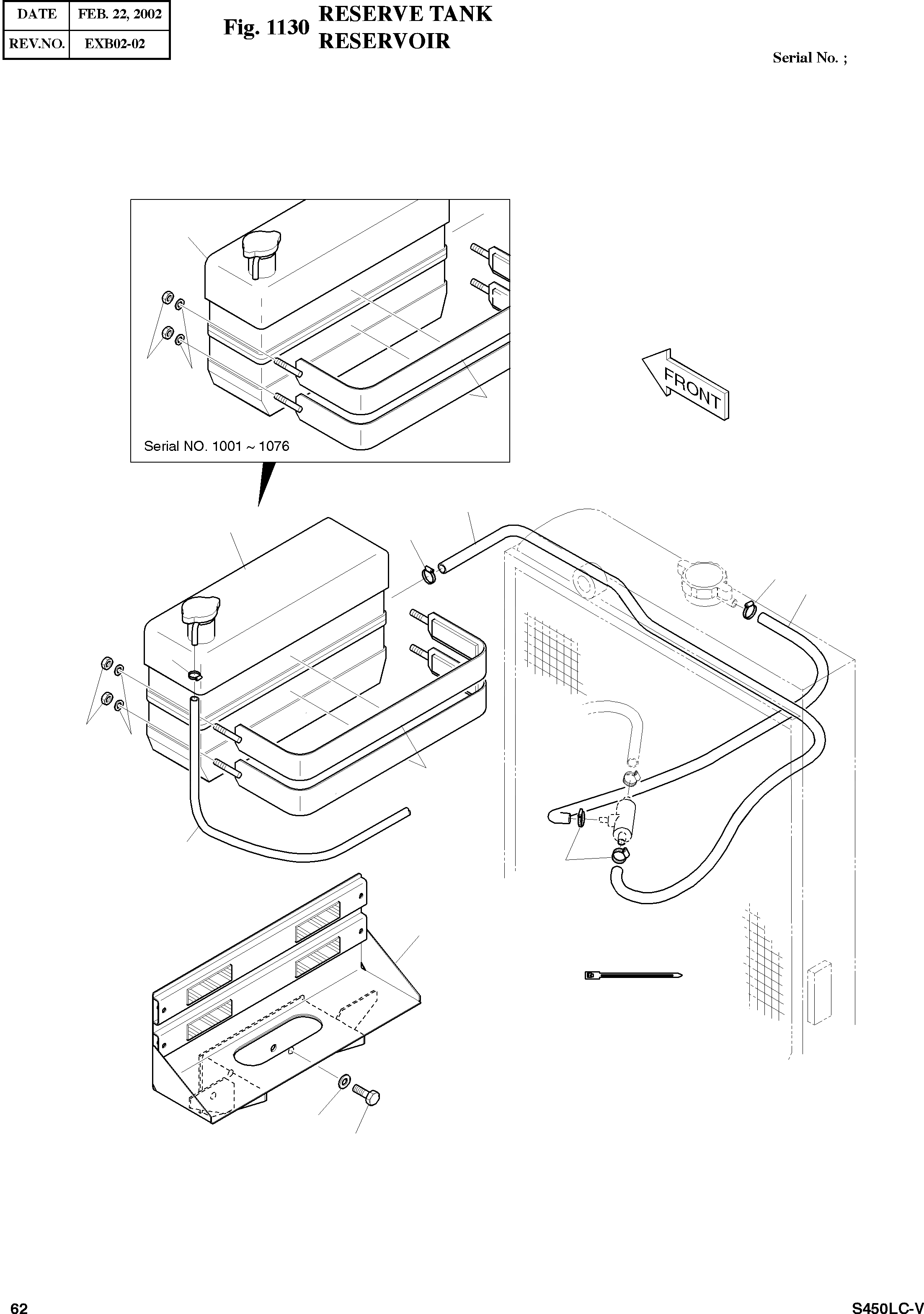

Запчасти Doosan Daewoo RESERVE TANK BODY PARTS

-

201-00001A

ENGINE ASS'Y

SC: D

-2шт.

32

2470-9012A

TANK;SURGE

desc: RESERVOIR

1шт.

33

2195-4610A

BRACKET;STRIP

desc: SUPPORT

2шт.

34

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

4шт.

35

S4012333

NUT M6X1.0

desc: ECROU

4шт.

41

2124-1084D2

CLIP;BAND PFO38/-2PF3/8

desc: ATTACHE

2шт.

42

2185-1247D73

HOSE;WATER

desc: TUYAU D'EAU

1шт.

43

S8450012

CLAMP;HOSE

SERIAL: 1001-1076

4шт.

43

S8450012

CLAMP;HOSE

SERIAL: 1077

5шт.

44

2185-1247D82

HOSE;WATER

SERIAL: 1001-1076

1шт.

44

2185-1247D82

HOSE;WATER

SERIAL: 1077

2шт.

45

197-00017A

BRACKET

SERIAL: 1001-1076

1шт.

45

197-00017B

BRACKET

SERIAL: 1077

1шт.

46

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

4шт.

47

S5010613

WASHER M10

desc: RONDELLE

4шт.
