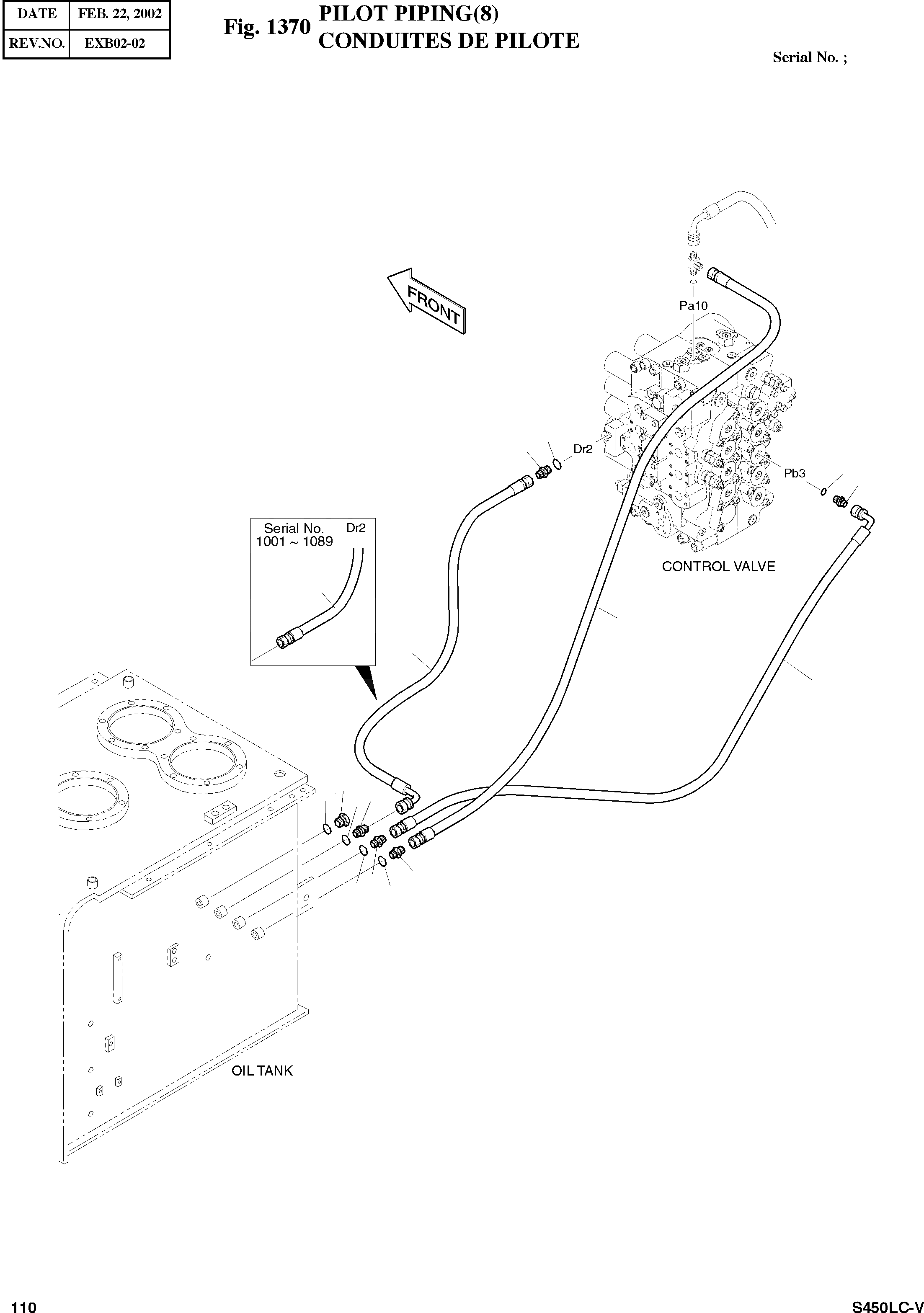

Запчасти Doosan Daewoo PILOT PIPING(8) BODY PARTS

-

400-00001A

PILOT PIPING

SC: D

-2шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

3шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

3шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

3шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD

2шт.

107

2184-1046D233

HOSE PF3/8-730L

desc: TUYAU FLEXIBLE

1шт.

111

2184-1045D71

HOSE PF1/4-860L

SERIAL: 1001-1089

1шт.

111

2184-1046D144

HOSE PF1/4-630L

SERIAL: 1090

1шт.

112

2184-1045D201

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

121

2181-1950D2

PLUG PFO3/8

desc: BOUCHON

1шт.
