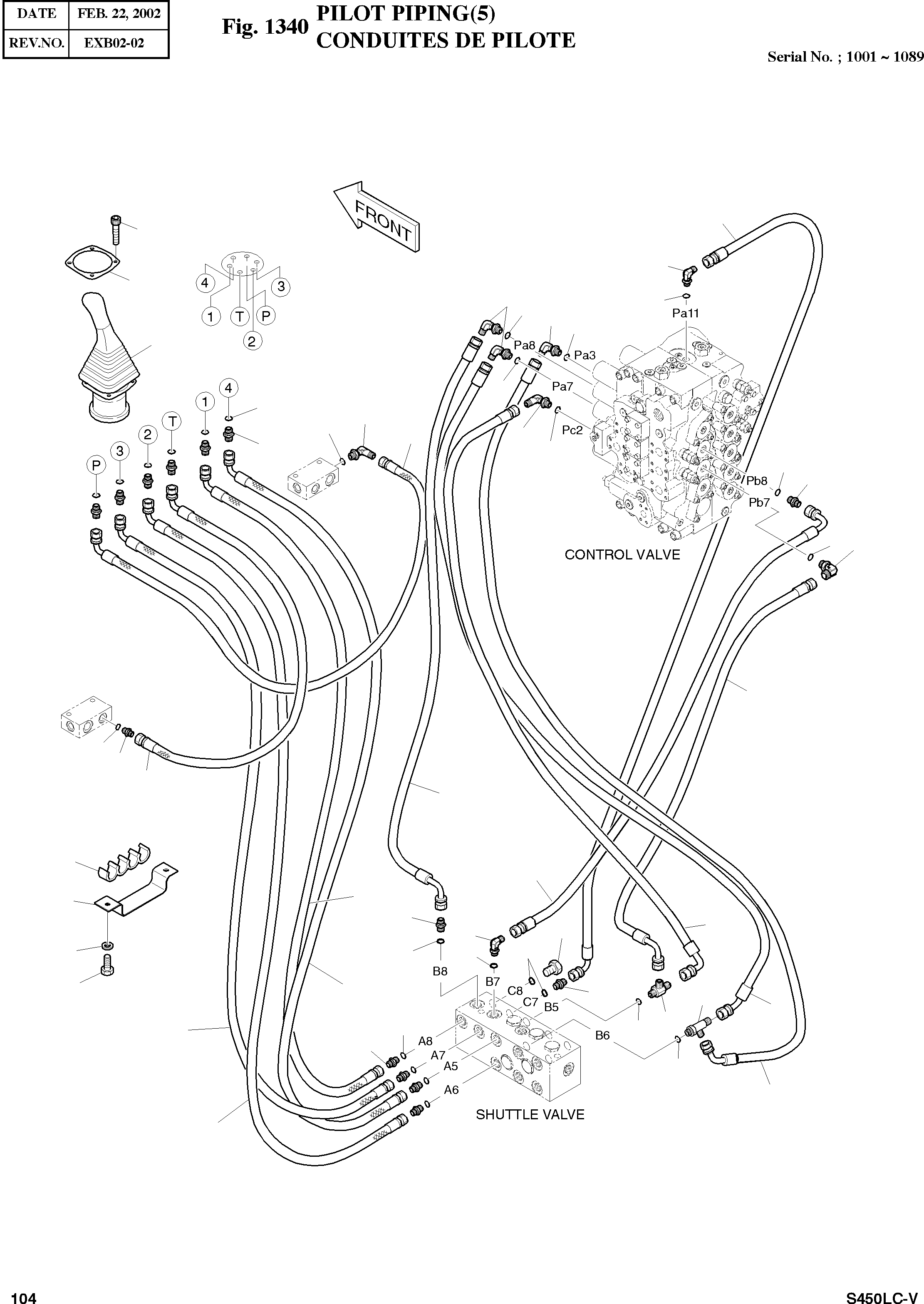

Запчасти Doosan Daewoo PILOT PIPING(5) BODY PARTS

-

400-00001A

PILOT PIPING

SERIAL: 1001-1089

-2шт.

2

2420-9517

VALVE;REMOCON(R.H)

desc: VANNE DE COMMANDE A DISTANCE

1шт.

3

S2205061

BOLT;SOCKET M6X1.5X25

desc: BOULON A 6 PANS

4шт.

18

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

1шт.

19

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

1шт.

20

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

2шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

17шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD

7шт.

30

2181-1126D36

ADAPTER PFO3/8-PF1/4

desc: RACCORD

1шт.

31

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD

6шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

34

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE EN S

6шт.

36

2181-2375D11

TEE PFO3/8-PF1/4-PF3/8

desc: TE

1шт.

44

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

45

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

57

2184-1060D151

HOSE PF3/8X1950L

desc: TUYAU FLEXIBLE

1шт.

58

2184-1060D151

HOSE PF3/8X1950L

desc: TUYAU FLEXIBLE

1шт.

59

2184-1060D149

HOSE PF3/8X2800L

desc: TUYAU FLEXIBLE

1шт.

60

2184-1060D149

HOSE PF3/8X2800L

desc: TUYAU FLEXIBLE

1шт.

61

2184-1060D149

HOSE PF3/8X2800L

desc: TUYAU FLEXIBLE

1шт.

62

2184-1060D149

HOSE PF3/8X2800L

desc: TUYAU FLEXIBLE

1шт.

85

2184-1036D64

HOSE PF1/4X450L

desc: TUYAU FLEXIBLE

1шт.

86

2184-1060D220

HOSE PF3/8X1100L

desc: TUYAU FLEXIBLE

1шт.

88

2184-1060D211

HOSE PF3/8X770L

desc: TUYAU FLEXIBLE

1шт.

89

2184-1060D213

HOSE PF3/8X940L

desc: TUYAU FLEXIBLE

1шт.

90

2184-1046D237

HOSE PF3/8X1100L

desc: TUYAU FLEXIBLE

1шт.

91

2184-1046D117

HOSE PF1/4X1700L

desc: TUYAU FLEXIBLE

1шт.

92

2184-1046D125

HOSE PF3/8X750L

desc: TUYAU FLEXIBLE

1шт.

115

2181-1951D16

TEE PFO3/8-2PF3/8

desc: TE

1шт.

121

2181-1950D2

PLUG

desc: BOUCHON

1шт.
