Запчасти Doosan Daewoo PILOT PIPING(2) BODY PARTS

-

400-00001A

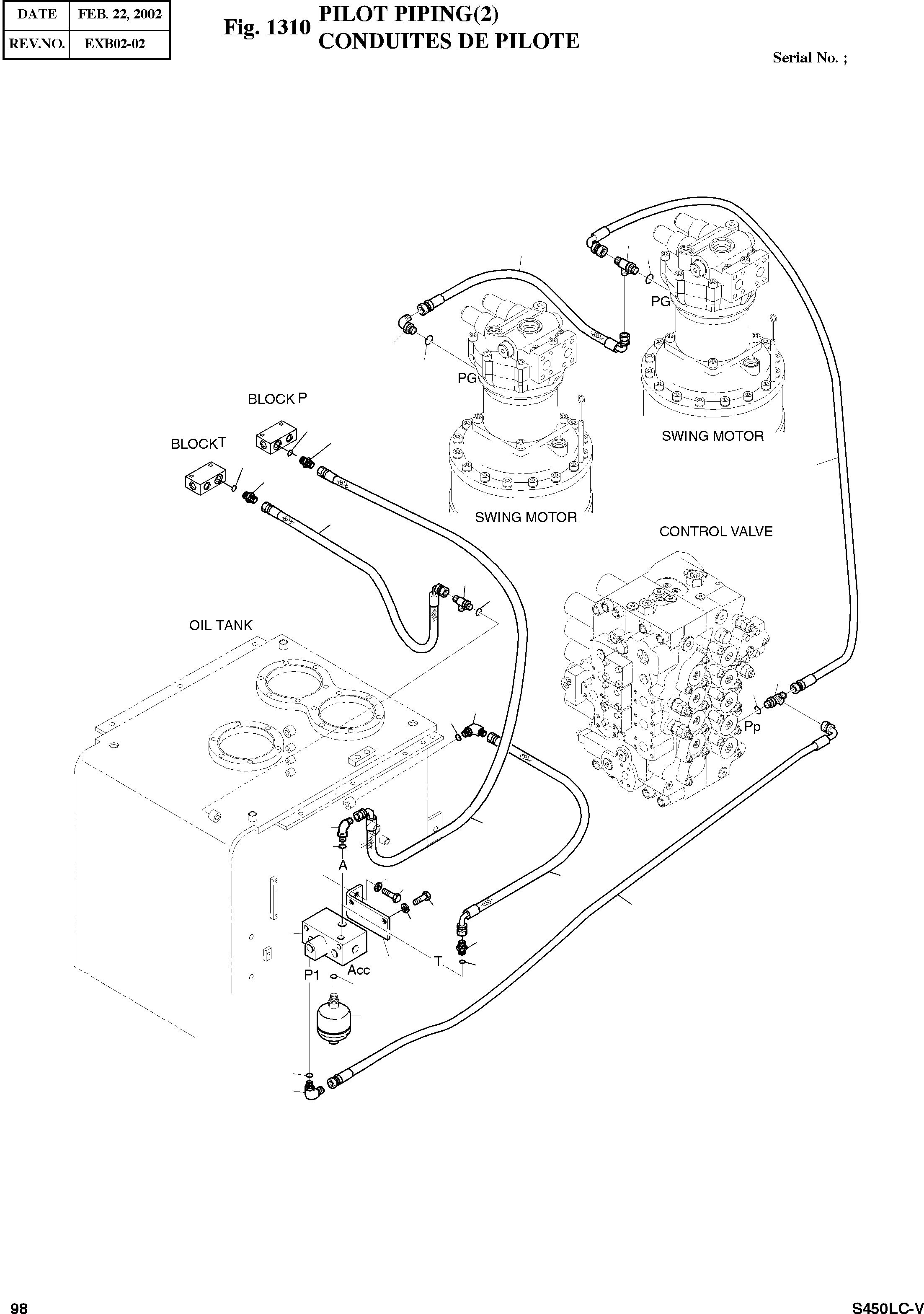

PILOT PIPING

SC: D

-2шт.

6

S0512053

BOLT M10X1.5XX25

desc: BOULON A 6 PANS

4шт.

7

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

10

2426-9039B

VALVE;PILOT

desc: VANNE

1шт.

21

2460-9057

ACCUMULATOR

SERIAL: 1001-1104

1шт.

21

2460-9057A

ACCUMULATOR

SERIAL: 1105

1шт.

24

S8000181

O-RING

desc: JOINT TORIQUE

7шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

4шт.

29

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: RACCORD ADAPTATEUR

2шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

35

2181-1702D2

ELBOW PFO1/2-PF1/2

desc: COUDE

2шт.

38

2181-1915D1

TEE PFO1/4-2PF1/4

desc: TE

2шт.

39

2471-1135

FILTER;ADAPTER PFO1/2-PF1/2

desc: FILTRE

1шт.

49

2181-1951D13

TEE PFO1/2-PF1/2-PF3/8

desc: TE

1шт.

70

2184-1036D410

HOSE PF1/2-3450L

desc: TUYAU FLEXIBLE

1шт.

72

2184-1046D159

HOSE PF1/2-2250L

desc: TUYAU FLEXIBLE

1шт.

94

2184-1046D52

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

95

2184-1046D177

HOSE PF1/4-2300L

desc: TUYAU FLEXIBLE

1шт.

104

2184-1036D100

HOSE PF1/2-800L

desc: TUYAU FLEXIBLE

1шт.

105

2184-1046D63

HOSE PF1/4-500L

desc: TUYAU FLEXIBLE

1шт.

116

2891-1244A

PLATE

desc: PLAQUE

1шт.
