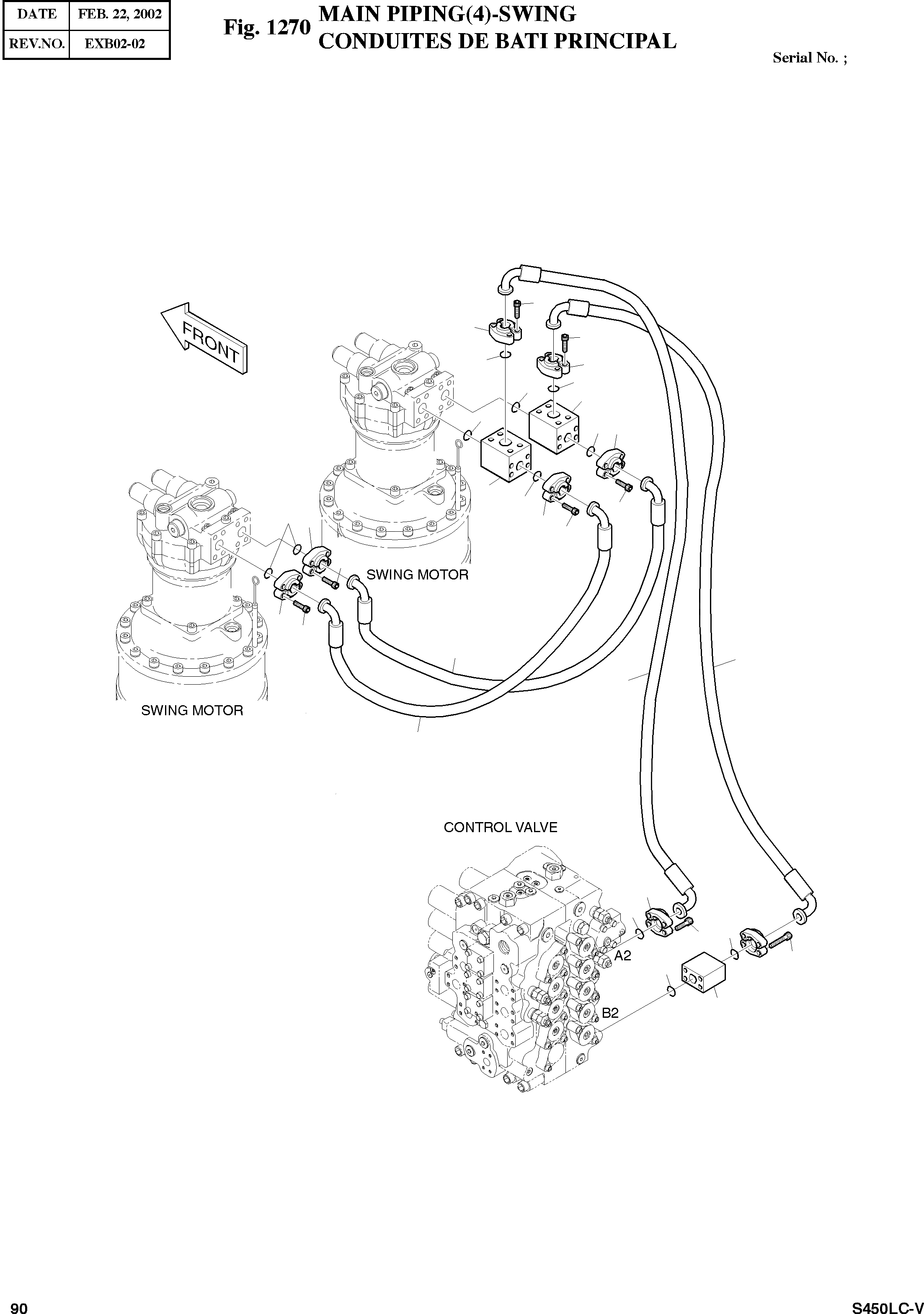

Запчасти Doosan Daewoo MAIN PIPING(4)-SWING BODY PARTS

-

2400-2169B

MAIN PIPING

SC: D

-2шт.

4

2423-1570

BLOCK

desc: BLOC

2шт.

6

2181-9081

FLANGE;SPLIT

desc: BRIDE

6шт.

8

2181-9084A

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

2шт.

9

2181-9079

FLANGE

desc: FLASQUE EN DEUX PARTIES

8шт.

13

2180-1026D19

O-RING

desc: JOINT TORIQUE

5шт.

15

2180-1026D2

O-RING

desc: JOINT TORIQUE

6шт.

19

423-00015

BLOCK;VALVE

desc: BLOC

1шт.

26

2184-1124D192

HOSE 680L

desc: TUYAU FLEXIBLE

1шт.

27

2184-1124D191

HOSE 520L

desc: TUYAU FLEXIBLE

1шт.

28

2184-1124D60

HOSE 1075L

desc: TUYAU FLEXIBLE

1шт.

42

S2215461

BOLT;SOCKET M12X1.75X40

SERIAL: 1001-1064

12шт.

42

S2215466

BOLT;SOCKET M12X1.75X40

SERIAL: 1065

12шт.

43

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1001-1064

8шт.

43

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1065

8шт.

50

2184-1124D197

HOSE 1075L

desc: TUYAU FLEXIBLE

1шт.

52

S2213861

BOLT;SOCKET M10X1.5X110

SERIAL: 1001-1064

8шт.

52

S2213866

BOLT;SOCKET M10X1.5X110

SERIAL: 1065

8шт.

53

S2217061

BOLT;SOCKET M12X1.75X120

SERIAL: 1001-1064

4шт.

53

S2217066

BOLT;SOCKET M12X1.75X120

SERIAL: 1065

4шт.
