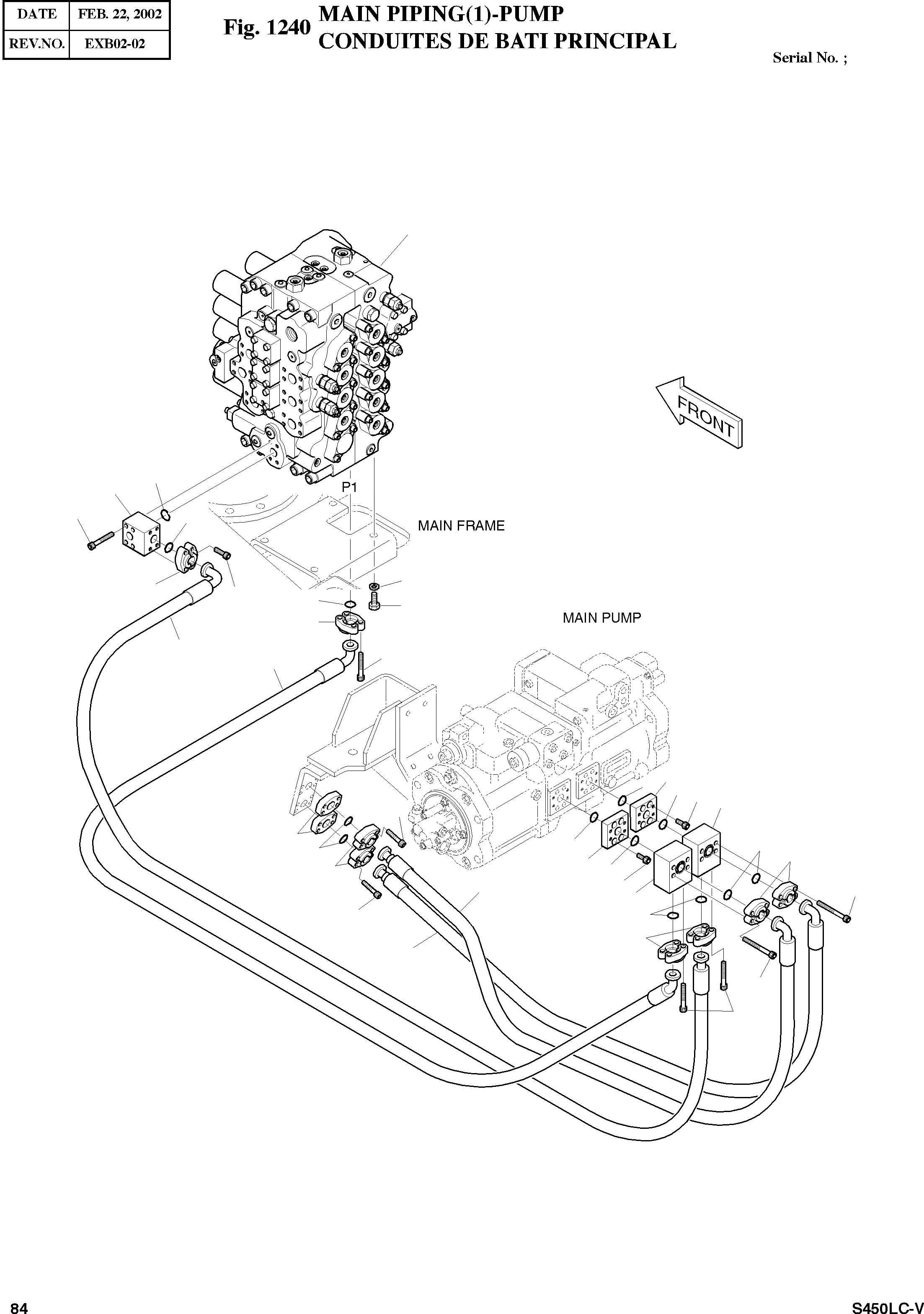

Запчасти Doosan Daewoo MAIN PIPING(1)-PUMP BODY PARTS

-

2400-2169B

MAIN PIPING

SC: D

-2шт.

1

2420-9637

CONTROL VALVE

SERIAL: 1001-1104

1шт.

1

2420-9637A

CONTROL VALVE

SERIAL: 1105

1шт.

2

2423-1402

BLOCK

desc: BLOC

2шт.

3

2423-1541

BLOCK

desc: BLOC

2шт.

6

2181-9081

FLANGE;SPLIT

desc: BRIDE

12шт.

7

2181-9078

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.

13

2180-1026D19

O-RING

desc: JOINT TORIQUE

13шт.

17

423-00005

BLOCK;ELBOW

desc: BLOC

1шт.

20

2184-1094D69

HOSE 2050L

desc: TUYAU FLEXIBLE

1шт.

21

2184-1100D190

HOSE 1800L

desc: TUYAU FLEXIBLE

1шт.

33

2184-1100D232

HOSE 1150L

desc: TUYAU FLEXIBLE

2шт.

35

S0527561

BOLT M20X2.5X45

SERIAL: 1001-1064

4шт.

35

S0527566

BOLT M20X2.5X45

SERIAL: 1065

4шт.

37

S2216261

BOLT;SOCKET M12X1.75X80

SERIAL: 1001-1064

4шт.

37

S2216266

BOLT;SOCKET M12X1.75X80

SERIAL: 1065

4шт.

39

S2215261

BOLT;SOCKET M12X1.75X30

SERIAL: 1001-1064

8шт.

39

S2215266

BOLT;SOCKET M12X1.75X30

SERIAL: 1065

8шт.

40

S2216861

BOLT;SOCKET M12X1.75X110

SERIAL: 1001-1064

8шт.

40

S2216866

BOLT;SOCKET M12X1.75X110

SERIAL: 1065

8шт.

41

S2212761

BOLT;SOCKET M10X1.5X55

SERIAL: 1001-1064

8шт.

41

S2212766

BOLT;SOCKET M10X1.5X55

SERIAL: 1065

8шт.

42

S2215461

BOLT;SOCKET M12X1.75X40

SERIAL: 1001-1064

16шт.

42

S2215466

BOLT;SOCKET M12X1.75X40

SERIAL: 1065

16шт.

46

S5103103

WASHER;SPRING M20

desc: RONDELLE ELASTIQUE

4шт.

51

2181-2532D2

FLANGE;COVER

desc: BRIDE

2шт.
