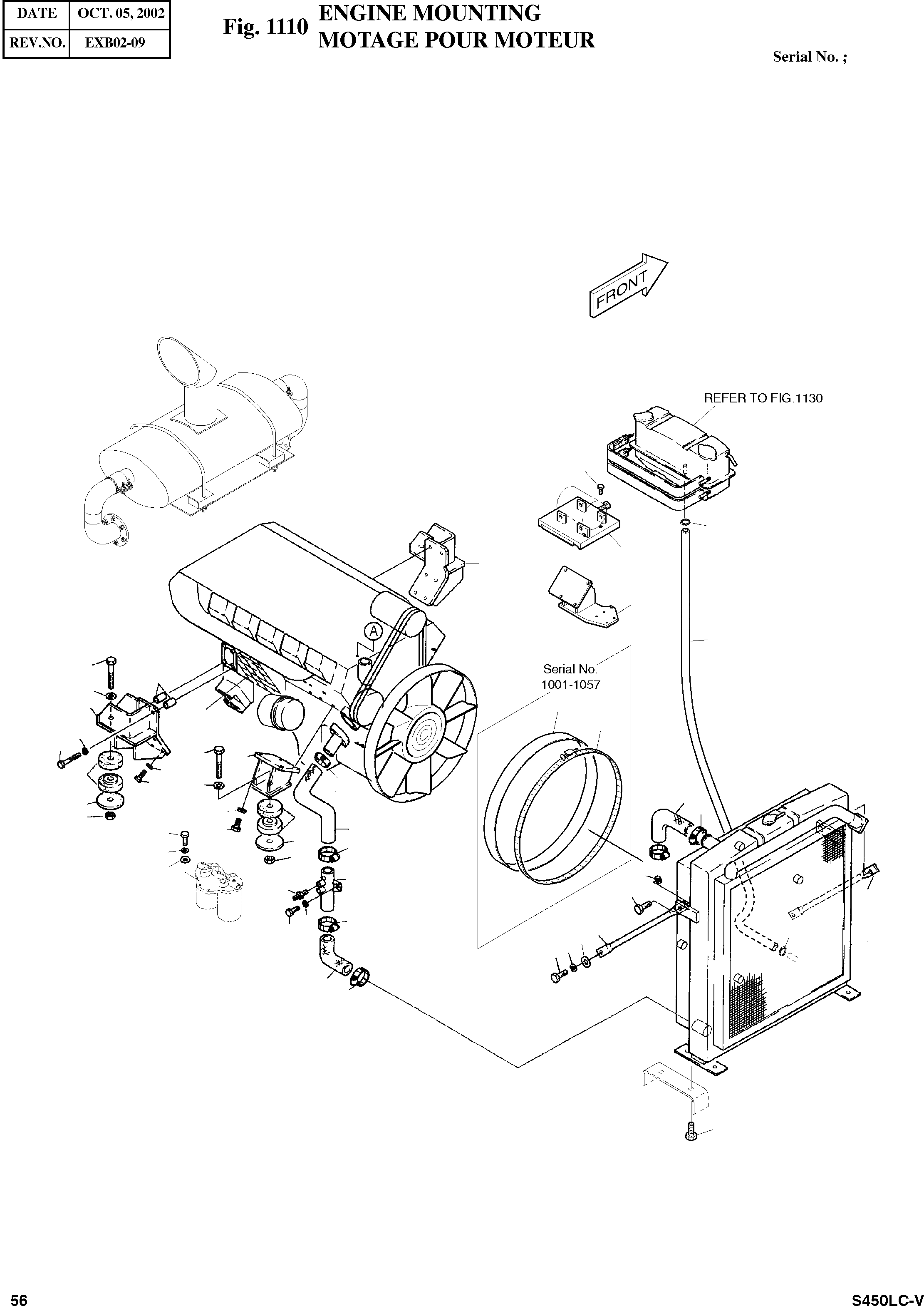

Запчасти Doosan Daewoo ENGINE MOUNTING BODY PARTS

-

201-00001A

ENGINE ASS'Y

SC: D

-2шт.

1

201-00008

ENGINE ASS'Y

SERIAL: 1001-1057

1шт.

1

201-00093

ENGINE ASS'Y(TROPICAL)

SERIAL: 1058

1шт.

2

2197-2689

BRACKET

desc: SUPPORT

1шт.

3

197-00040A

BRACKET

desc: SUPPORT

1шт.

4

2114-4094

SPACER

desc: BAGUE D'ECARTEMENT

4шт.

5

2161-9066

RUBBER;REAR

desc: CAOUTCHOUC

4шт.

6

2114-1929

WASHER

desc: RONDELLE PLATE

4шт.

7

S0771261

BOLT M20X1.5X120

SERIAL: 1001-1079

4шт.

7

S0771461

BOLT M20X1.5X130

SERIAL: 1080

4шт.

8

2114-9012

WASHER;HARDEN

desc: RONDELLE ELASTIQUE

4шт.

9

S4033133

NUT M20X1.5

SERIAL: 1001-1047

4шт.

9

121-00066

NUT M20X1.5

SERIAL: 1048

4шт.

10

S0762853

BOLT M14X1.5X45

desc: BOULON A 6 PANS

8шт.

11

S5102803

WASHER;SPRING M14

desc: RONDELLE ELASTIQUE

8шт.

12

S0766261

BOLT M16X1.5X100

desc: BOULON A 6 PANS

4шт.

13

S5102901

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

8шт.

14

2161-9065

RUBBER;FRONT

desc: CAOUTCHOUC

4шт.

15

197-00041

BRACKET

desc: SUPPORT

1шт.

16

197-00042

BRACKET

desc: SUPPORT

1шт.

17

120-00050

BOLT M16X2.0X45

SERIAL: 1001-1174

4шт.

17

120-00050A

BOLT M16X2.0X45

SERIAL: 1175

4шт.

18

2114-1058D23

WASHER

desc: RONDELLE

2шт.

19

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

10шт.

21

124-00148

CLAMP;FAN COVER

SERIAL: 1001-1057

1шт.

22

2160-9025

COVER;FAN

SERIAL: 1001-1057

1шт.

23

2182-4017

PIPE;WATER

desc: CONDUITE D'EAU

1шт.

24

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS

2шт.

25

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

26

2185-4049

HOSE;WATER

SERIAL: 1001-1057

1шт.

26

185-00252A

HOSE;WATER

SERIAL: 1058

1шт.

27

S8450066

CLAMP;HOSE

desc: COLLIER

6шт.

28

2185-1611

HOSE;WATER

desc: FLEXIBLE D'EAU

1шт.

29

2181-4252

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

30

2185-1247D71

HOSE;WATER

desc: TUYAU D'EAU

1шт.

31

S8450018

CLAMP;HOSE

desc: COLLIER

2шт.

36

2185-1610A

HOSE;WATER

desc: TUYAU FLEXIBLE

1шт.

37

621-00096A

SLIDING PLATE ASS'Y

desc: PLAQUE

1шт.

38

S5010713

WASHER;PLAIN M12

desc: RONDELLE

2шт.

39

S0560553

BOLT M12X1.75X40

desc: BOULON A 6 PANS

2шт.

40

145-00004A

STAY

desc: ENTRETOISE

2шт.

48

S0521361

BOLT M16X2.0X35

desc: BOULON A 6 PANS

4шт.

50

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

8шт.

51

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

5шт.
