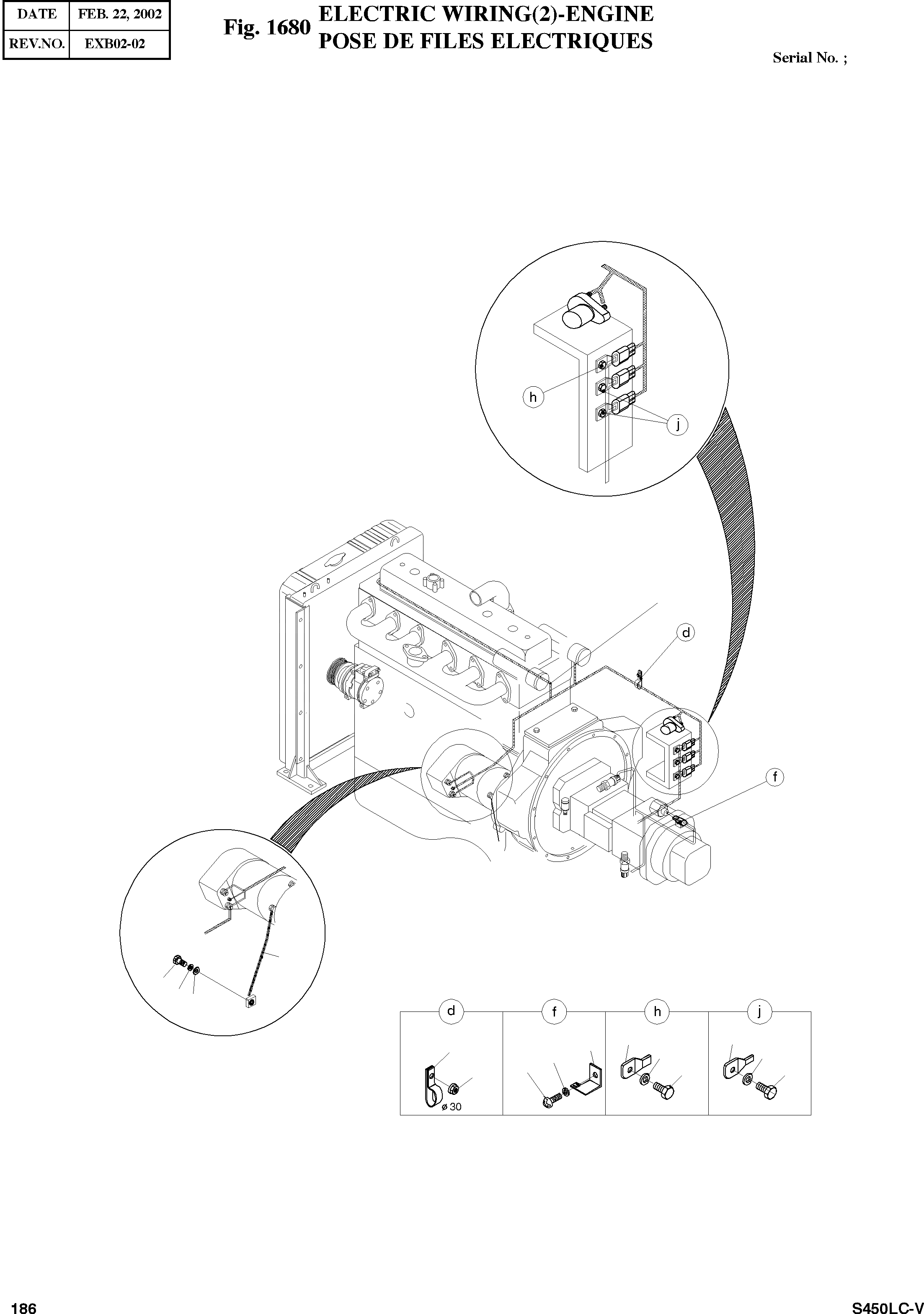

Запчасти Doosan Daewoo ELECTRIC WIRING(2)-ENGINE BODY PARTS

-

500-00004

ELECTRIC PARTS

SC: D

-2шт.

3

530-00006A

HARNESS;ENGINE

SERIAL: 1001-1075

1шт.

3

530-00006B

HARNESS;ENGINE

SERIAL: 1076

1шт.

14

2553-1261D28

CABLE;ENGINE EARTH 85BX600L

desc: CABLE BATTERIE

1шт.

16

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS

1шт.

17

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

1шт.

18

S5010613

WASHER;PLAIN M10

desc: RONDELLE

1шт.

19

2195-3500

BRACKET;HOUSING

desc: SUPPORT

1шт.

20

S3450953

SCREW M6X1.0X12

desc: VIS

1шт.

21

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

1шт.

22

2197-1660

BRACKET;HOUSING

desc: SUPPORT

1шт.

23

2197-1661

BRACKET;HOUSING

desc: SUPPORT

2шт.

24

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

3шт.

25

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

3шт.

29

2124-1509D4

CLIP ©Є30XM8

desc: ATTACHE

1шт.

31

2121-1305

NUT M8X1.25

desc: ECROU

1шт.
