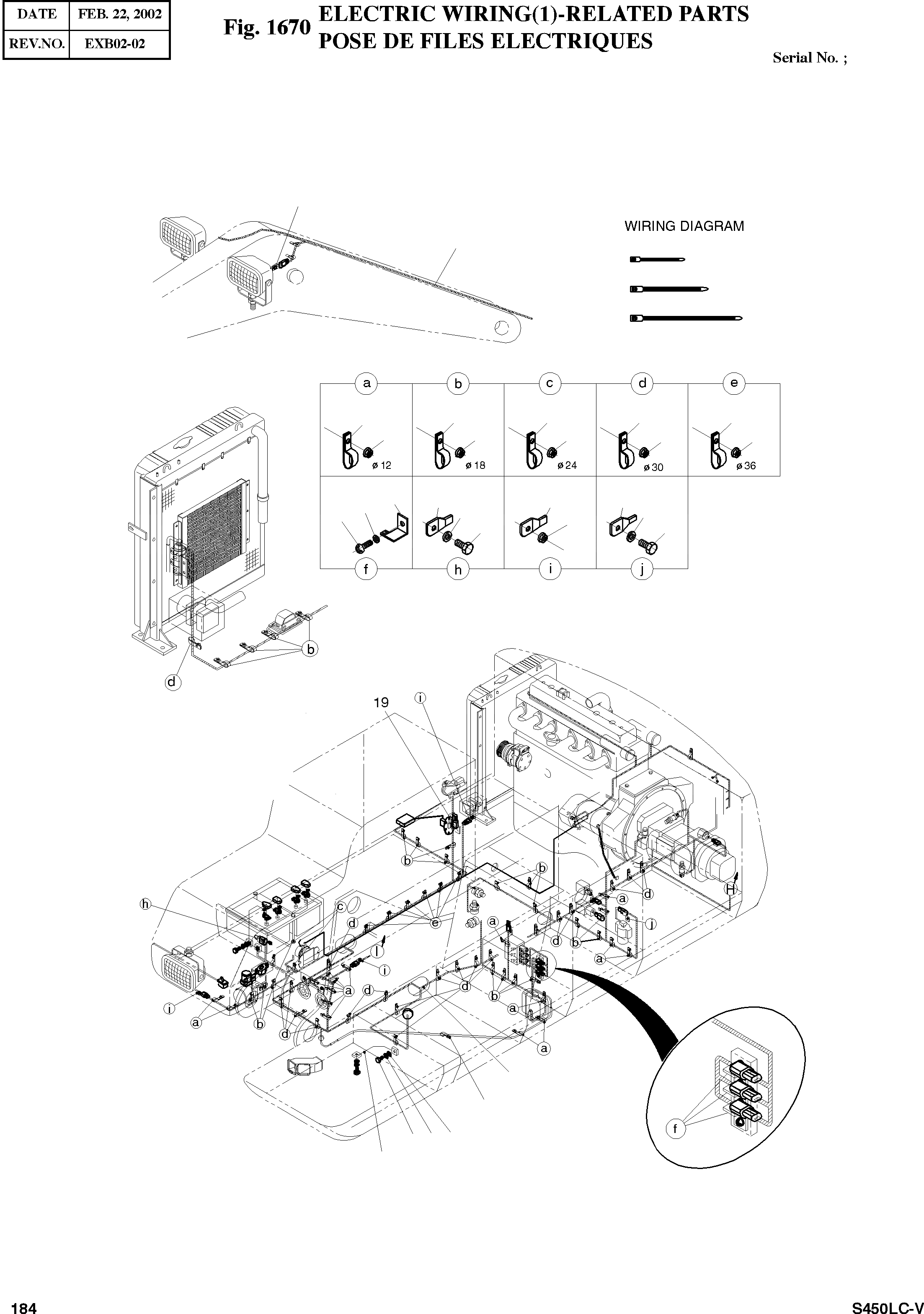

Запчасти Doosan Daewoo ELECTRIC WIRING(1)-RELATED PARTS BODY PARTS

-

500-00004

ELECTRIC PARTS

SC: D

-2шт.

1

599-00002A

WIRING DIAGRAM

desc: FAISCEAU

1шт.

2

530-00031A

HARNESS;MAIN

desc: FAISCEAU

1шт.

4

530-00041A

HARNESS;WORKING LAMP

desc: FAISCEAU

1шт.

15

2553-1275D5

CABLE;FLOOR PL EARTH 60B-300L

desc: FAISCEAU

1шт.

16

S0511653

BOLT M10X1.5X16L

desc: BOULON A 6 PANS

2шт.

17

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

18

S5010613

WASHER;PLAIN M10

desc: RONDELLE

2шт.

19

2195-3500

BRACKET;HOUSING

desc: SUPPORT

4шт.

20

S3450953

SCREW M6X1.0X12

desc: VIS

3шт.

21

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

3шт.

22

2197-1660

BRACKET;HOUSING

desc: SUPPORT

8шт.

23

2197-1661

BRACKET;HOUSING

desc: SUPPORT

1шт.

24

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

25

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

26

2124-1509D1

CLIP ©Є12XM8

desc: ATTACHE

17шт.

27

2124-1509D2

CLIP ©Є18XM8

desc: ATTACHE

22шт.

28

2124-1509D3

CLIP ©Є24XM8

desc: ATTACHE

2шт.

29

2124-1509D4

CLIP ©Є30XM8

desc: ATTACHE

20шт.

30

2124-1509D5

CLIP ©Є36XM8

desc: ATTACHE DE TUYAU

6шт.

31

2121-1305

NUT M8X1.25

desc: ECROU

69шт.

32

2124-1622D1

CLIP;BAND 150L

desc: ATTACHE

10шт.

33

2124-1622D2

CLIP;BAND 200L

desc: ATTACHE

30шт.

34

2124-1622D3

CLIP;BAND 280L

desc: ATTACHE

10шт.
