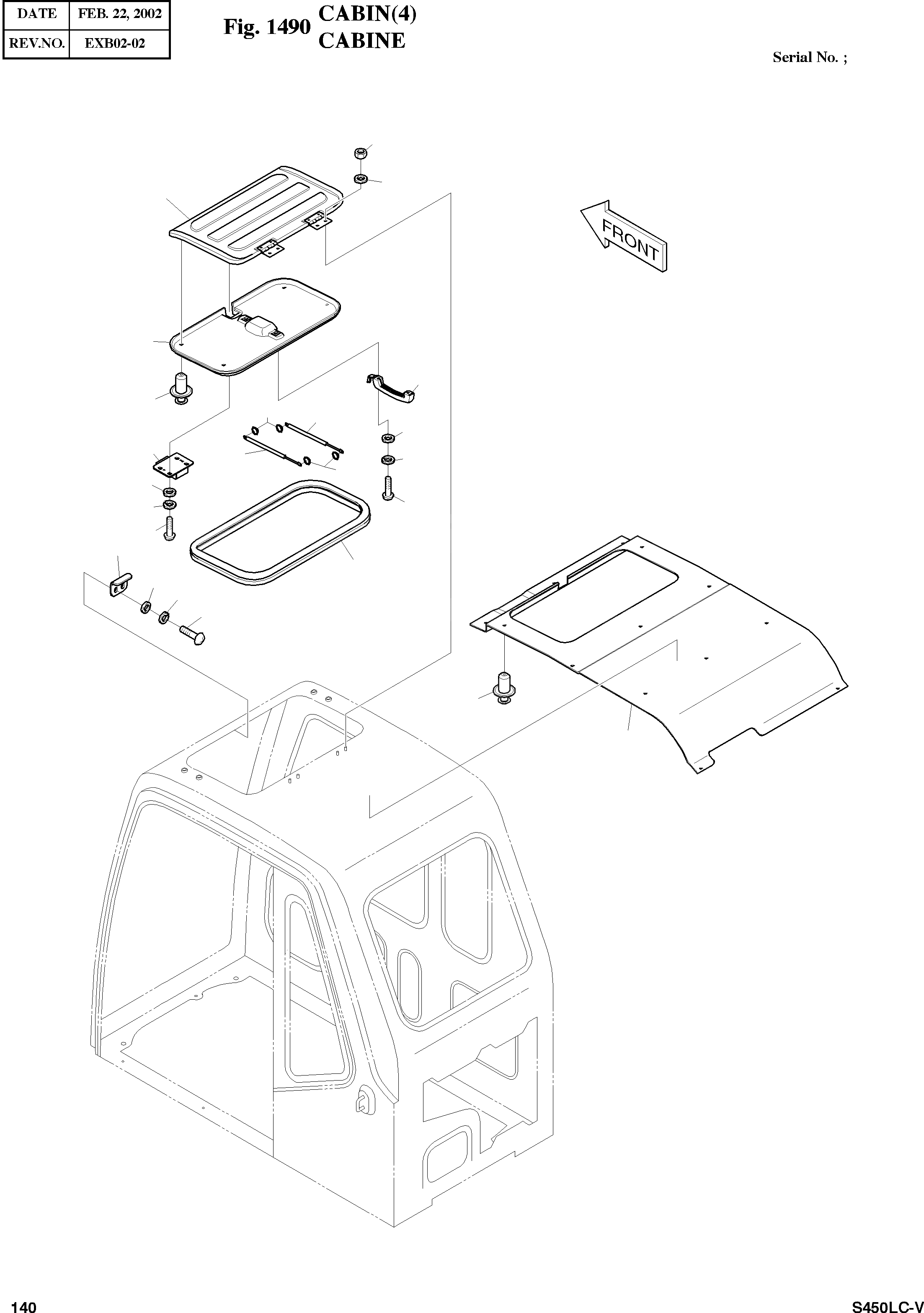

Запчасти Doosan Daewoo CABIN(4) BODY PARTS

-

622-00080C

CABIN ASS'Y

SERIAL: 1001-1037

1шт.

-

622-00080E

CABIN ASS'Y

SERIAL: 1038-1052

1шт.

-

622-00080H

CABIN ASS'Y

SERIAL: 1053

1шт.

1-9

2621-3767A

PANEL ASM;COVER ROOF

desc: . PORTE

1шт.

1-10

S4012533

NUT M8X1.25

desc: . ECROU

4шт.

1-11

S5010513

WASHER;PLAIN M8

desc: . RONDELLE

4шт.

24

2162-1065

STRIP WEATHER

desc: TAMPON

1шт.

37

S3450973

SCREW M6X1.0X16

desc: VIS

2шт.

38

S5010313

WASHER;PLAIN M6

desc: RONDELLE

4шт.

39

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

4шт.

57

S3450833

SCREW M5X0.8X12

desc: VIS

4шт.

58

S5010213

WASHER;PLAIN M5

desc: RONDELLE

4шт.

59

S5102203

WASHER;SPRING M5

desc: RONDELLE ELASTIQUE

4шт.

72

2161-2198

PAD;ROOF

desc: CAOUTCHOUC

1шт.

73

2161-2199

PAD;ROOF COVER

desc: CAOUTCHOUC

1шт.

85

2172-1112

HANDLE;PULL

desc: POIGNER

1шт.

86

S3450993

SCREW M6X1.0X25

desc: VIS

2шт.

97

2125-9057

CATCH

desc: VERROU

1шт.

98

2142-1122A

STRIKER;COVER ROOF

desc: FRAPPER

1шт.

99

2440-9251

SPRING;GAS

desc: RESSORT

2шт.

100

S6540600

RING;RETAINING

desc: BAGUE CIRCLIPS

4шт.

153

2120-2174

SCRIVET

desc: RIVET

19шт.
