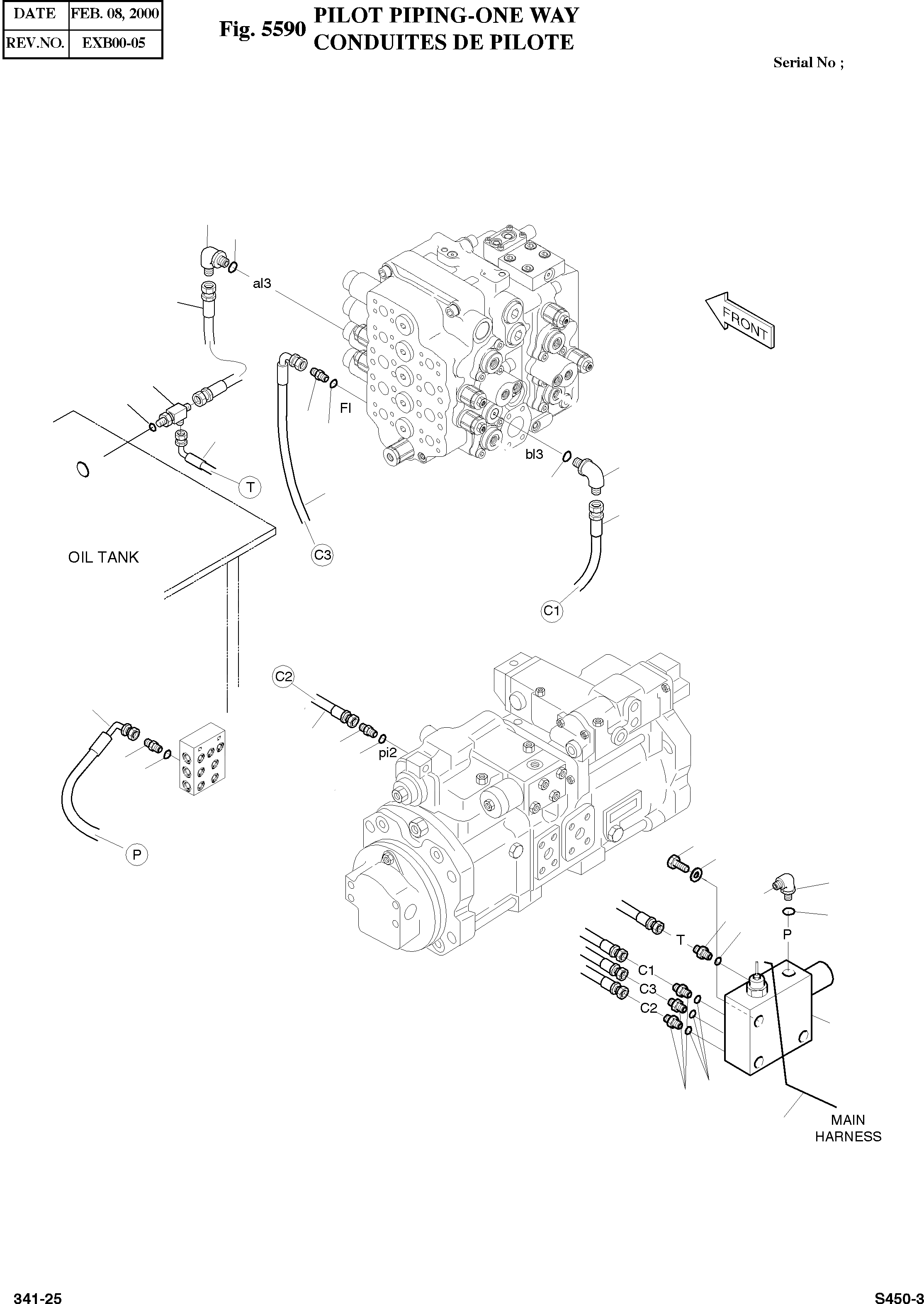

Запчасти Doosan Daewoo PILOT PIPING-ONE WAY OPTION PARTS

-

400-00066

PILOT PIPING

SC: D

-2шт.

1

2420-9227A

VALVE;BREAKER

desc: SOUPAPE A SOLENOIDE

1шт.

2

S0558953

BOLT

desc: BOULON A 6 PANS

3шт.

3

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE M10

3шт.

4

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

6шт.

5

2181-1126D36

ADAPTER PFO3/8-PF1/4

desc: RACCORD

1шт.

6

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

1шт.

7

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

2шт.

8

S8000111

O-RING

desc: JOINT TORIQUE

7шт.

9

S8000141

O-RING

desc: JOINT TORIQUE

3шт.

10

2181-1951D9

TEE

desc: TE

1шт.

11

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

12

2184-1045D157

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1046D188

HOSE PF1/4-2400L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1045D104

HOSE PF1/4-2400L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1045D90

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1046D135

HOSE PF1/4-2500L

desc: TUYAU FLEXIBLE

1шт.

17

2184-1046D214

HOSE PF1/4-3800L

desc: TUYAU FLEXIBLE

1шт.

30

530-00015

HARNESS

desc: FAISCEAU

1шт.
