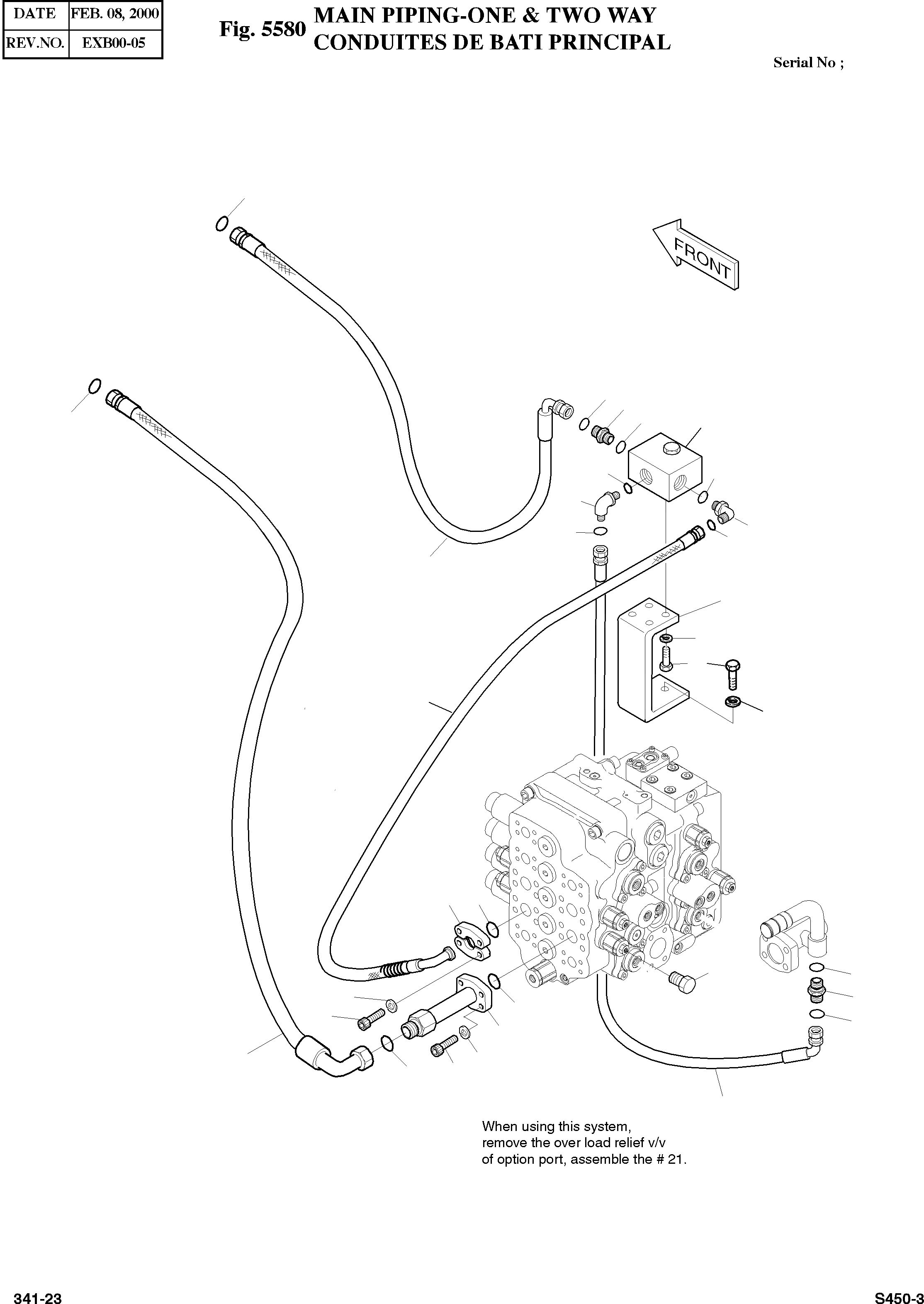

Запчасти Doosan Daewoo MAIN PIPING-ONE & TWO WAY OPTION PARTS

-

400-00064

MAIN PIPING

SC: D

-2шт.

1

2197-2673

BRACKET

desc: SUPPORT

1шт.

2

2420-9633

VALVE;SWITCH

desc: VANNE

1шт.

3

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

4шт.

4

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE M12

4шт.

5

2181-4133D6

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

6

S8030161

O-RING

desc: JOINT TORIQUE

7шт.

7

S8000291

O-RING

desc: JOINT TORIQUE

3шт.

8

2181-9078

FLANGE

desc: FLASQUE EN DEUX PARTIES

2шт.

9

S2212361

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX M10X1.5X35

4шт.

10

2180-1026D19

O-RING

desc: JOINT TORIQUE

2шт.

11

2184-1197D108

HOSE PF1-1800L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1197D109

HOSE PF1-2100L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1197D112

HOSE PF1-2100L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1200D53

HOSE PF1-1350L

desc: TUYAU FLEXIBLE

1шт.

15

2181-2815D1

ELBOW

desc: COUDE

2шт.

16

140-00041

PIPE

desc: TUYAU

1шт.

17

S5110601

WASHER;SPRING

desc: RONDELLE ELASTIQUE

8шт.

18

S2212361

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX M10X1.5X35

4шт.

19

2181-4133D36

ADAPTER

desc: RACCORD ADAPTEUR

1шт.

20

S8000381

O-RING

desc: JOINT TORIQUE

1шт.

21

181-00168

PLUG

desc: BOUCHONE

2шт.
