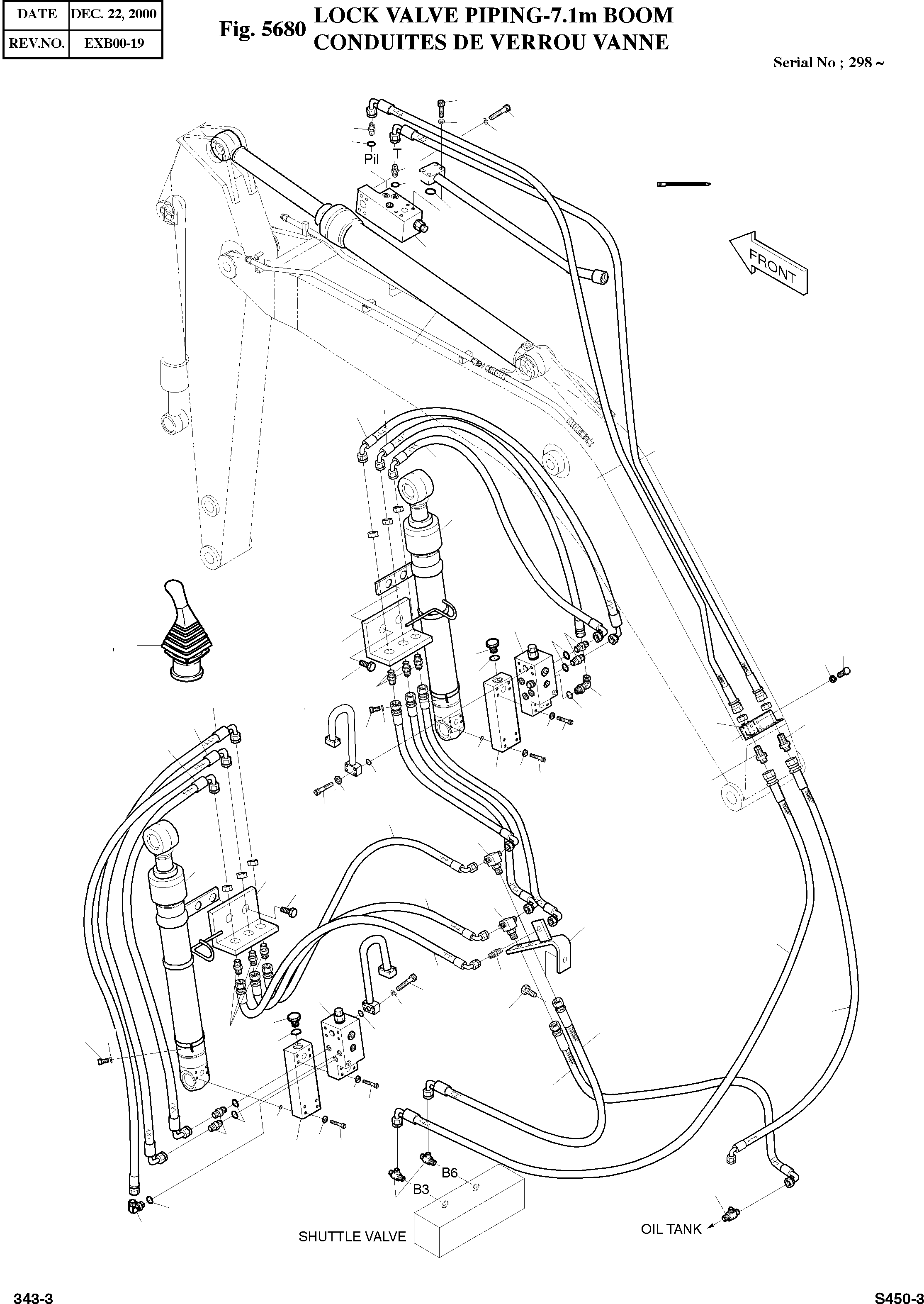

Запчасти Doosan Daewoo LOCK VALVE PIPING-7.1M BOOM OPTION PARTS

-

400-00134A

PIPING;LOCK VALVE

SERIAL: 298

-2шт.

1

420-00004

VALVE;LOCK

desc: VERROU VANNE

2шт.

2

420-00021A

VALVE;LOCK

desc: VERROU VANNE

1шт.

3

S2215761

BOLT;SOCKET M12X1.75X55

desc: BOULON A 6 PANS CREUX

16шт.

4

S5110701

WASEHR;SPRING M12

desc: RONDELLE ELASTIQUE

24шт.

5

S2218961

BOLT;SOCKET M14X2.0X65

desc: BOULON A 6 PANS CREUX

4шт.

6

S8000341

O-RING

desc: JOINT TORIQUE

2шт.

7

181-00008

TEE PF1/4-PF1/4-PF3/8

desc: TE

2шт.

8

S5110801

WASHER;SPRING M14

desc: RONDELLE ELASTIQUE

8шт.

9

S2218961

BOLT;SOCKET M14X2.0X65

desc: BOULON A 6 PANS CREUX

4шт.

10

S8000401

O-RING

desc: JOINT TORIQUE

1шт.

11

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

12

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

13

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD

6шт.

15

195-00163

BRACKET

desc: SUPPORT

1шт.

16

S0563361

BOLT M14X2.0X70

desc: BOULON A 6 PANS

2шт.

17

S5102801

WASHER;SPRING M14

desc: RONDELLE ELASTIQUE

2шт.

18

2181-1951D16

TEE PFO3/8-PF3/8-PF3/8

desc: TE

2шт.

19

2181-1951D31

TEE PFO1/2-PF3/8-PF3/8

desc: TE

1шт.

20

2124-1084D2

CLIP;BAND

desc: ATTACHE DE TUYAU

30шт.

21

181-00020

ADAPTER PF1/4-PF1/4

desc: RACCORD

7шт.

22

S0561753

BOLT M12X1.75X100

desc: BOULON A 6 PANS

1шт.

23

2114-1180D20

SHIM

desc: CALE

1шт.

24

195-00340

BRACKET

desc: SUPPORT

1шт.

25

2184-1045D263

HOSE PF1/4-6700L

desc: TUYAU FLEXIBLE

2шт.

27

2184-1061D335

HOSE PF1/4-680L

desc: TUYAU FLEXIBLE

2шт.

28

2184-1046D35

HOSE PF1/4-680L

desc: TUYAU FLEXIBLE

2шт.

29

2184-1061D336

HOSE PF1/4-580L

desc: TUYAU FLEXIBLE

2шт.

30

2184-1060D221

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

2шт.

31

2184-1060D48

HOSE PF1/4-1050L

desc: TUYAU FLEXIBLE

2шт.

32

2184-1060D45

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

2шт.

33

2184-1046D123

HOSE PF3/8-1500L

desc: TUYAU FLEXIBLE

1шт.

34

2184-1060D151

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1046D227

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

36

2184-1046D116

HOSE PF3/8-2000L

desc: TUYAU FLEXIBLE

1шт.

37

195-00329

BRACKET

desc: SUPPORT

1шт.

38

S0515351

BOLT M12X1.75X35

desc: BOULON A 6 PANS

4шт.

39

440-00061A

CYLINDER;BOOM(L.H)

desc: VERIN DE FLECHE GAUCHE

1шт.

40

440-00062A

CYLINDER;BOOM(R.H)

desc: VERIN DE FLECHE GAUCHE

1шт.

41

440-00063

CYLINDER;ARM

desc: VERIN DE BALANCIER

1шт.

42

195-00335

BRACKET

desc: SUPPORT

1шт.

43

S2215961

BOLT;SOCKET M12X1.75X65

desc: BOULON A 6 PANS CREUX

8шт.

44

2180-1026D19

O-RING

desc: JOINT TORIQUE

2шт.

45

423-00030

BLOCK;VALVE

desc: BLOC

2шт.

46

2181-1890D6

PLUG

desc: BOUCHON

2шт.

47

S8000291

O-RING

desc: JOINT TORIQUE

2шт.

48

S0515053

BOLT M12X1.75X25

desc: BOULON A 6 PANS

2шт.

49

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

53

2420-9516

VALVE;REMOCON(L)

desc: VANNE DE COMMANDE A DISTANCE

1шт.

54

2420-9517

VALVE;REMOCON(R)

desc: VANNE DE COMMANDE A DISTANCE

1шт.

55

181-00007

ADAPTER PF1/4-PF3/8

desc: RACCORD

2шт.
