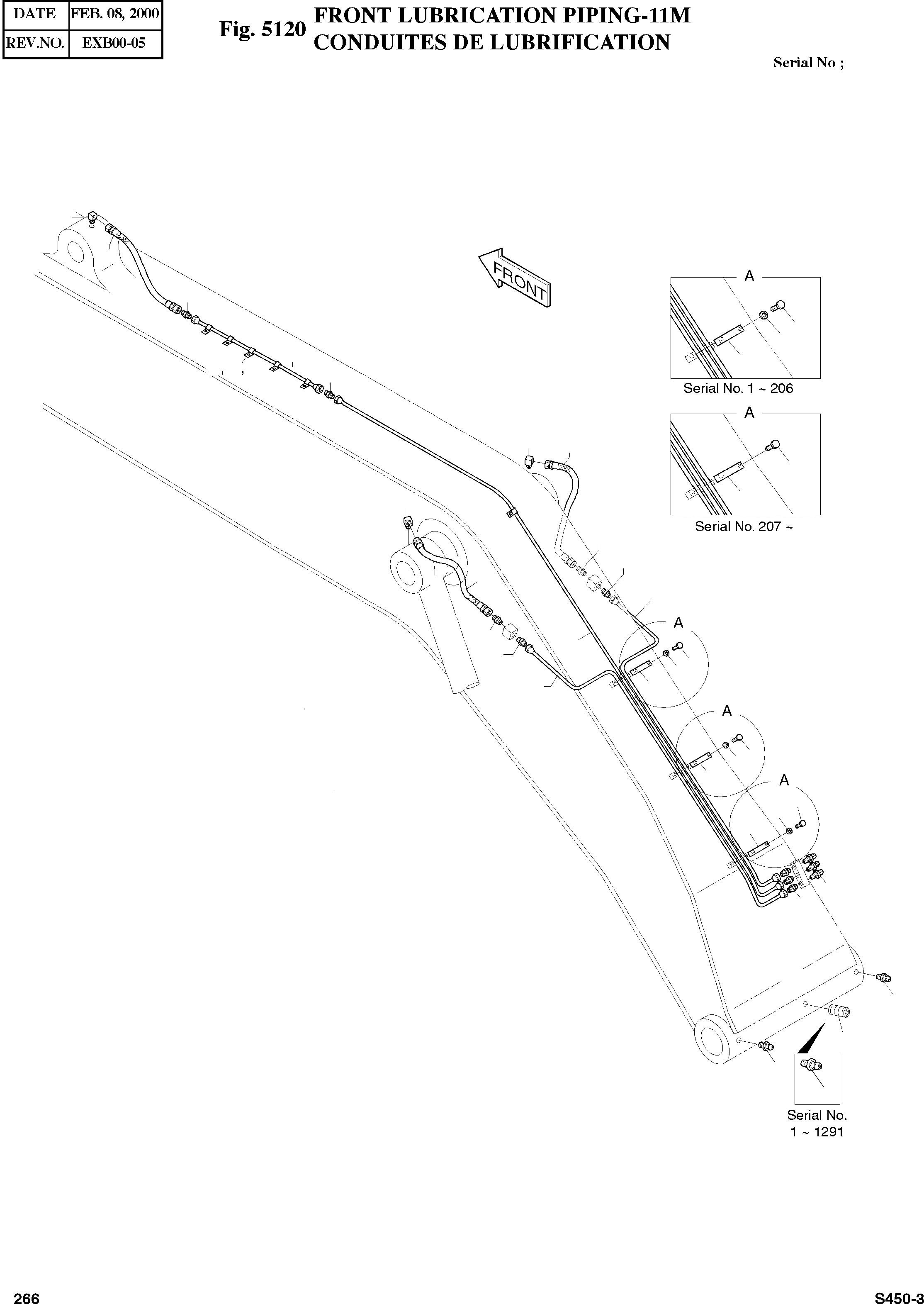

Запчасти Doosan Daewoo FRONT LUBRICATION PIPING-11M OPTION PARTS

-

2400-1746

PIPING;LUBRICATION-OPTION

SC: D

-2шт.

1

S6710052

NIPPLE;GREASE

SERIAL: 1-291

6шт.

1

S6710052

NIPPLE;GREASE

SERIAL: 292

5шт.

2

2181-1919D10

ADAPTER PT1/9.M14X1.5

desc: RACCORD

7шт.

3

2183-3925

PIPE

desc: TUYAU

1шт.

4

2183-3926

PIPE

desc: TUYAU

1шт.

5

2183-3927

PIPE

desc: TUYAU

1шт.

6

2181-1110D1

ADAPTER PT. PF1/4

desc: RACCORD

2шт.

7

2184-1045D99

HOSE PF1/4-550L

desc: TUYAU FLEXIBLE

3шт.

8

S0512253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

6шт.

9

2181-1186D12

ELBOW PT1/.PF1/4

desc: COUDE

3шт.

10

2124-1353D1

CLIP

desc: ATTACHE

6шт.

11

S0511553

BOLT M10X1.5X14

desc: BOULON A 6 PANS

6шт.

12

S5102603

WASHER;SPRING M10

SERIAL: 1-206

12шт.

12

S5102603

WASHER;SPRING M10

SERIAL: 207

6шт.

13

2124-1006

CLAMP

desc: ATTACHE DE TUYAU

3шт.

14

2181-1923D9

ADAPTER M14X1.5. PF1/4

desc: RACCORD

1шт.

15

2181-1935D5

ADAPTER M14X1.5-M14X1.5

desc: RACCORD

1шт.

16

2183-3928A

PIPE

desc: TUYAU

1шт.

17

S3524403

SCREW;SET

SERIAL: 292

1шт.
