Запчасти Doosan Daewoo ARM PIPING-8M OPTION PARTS

-

2400-1592

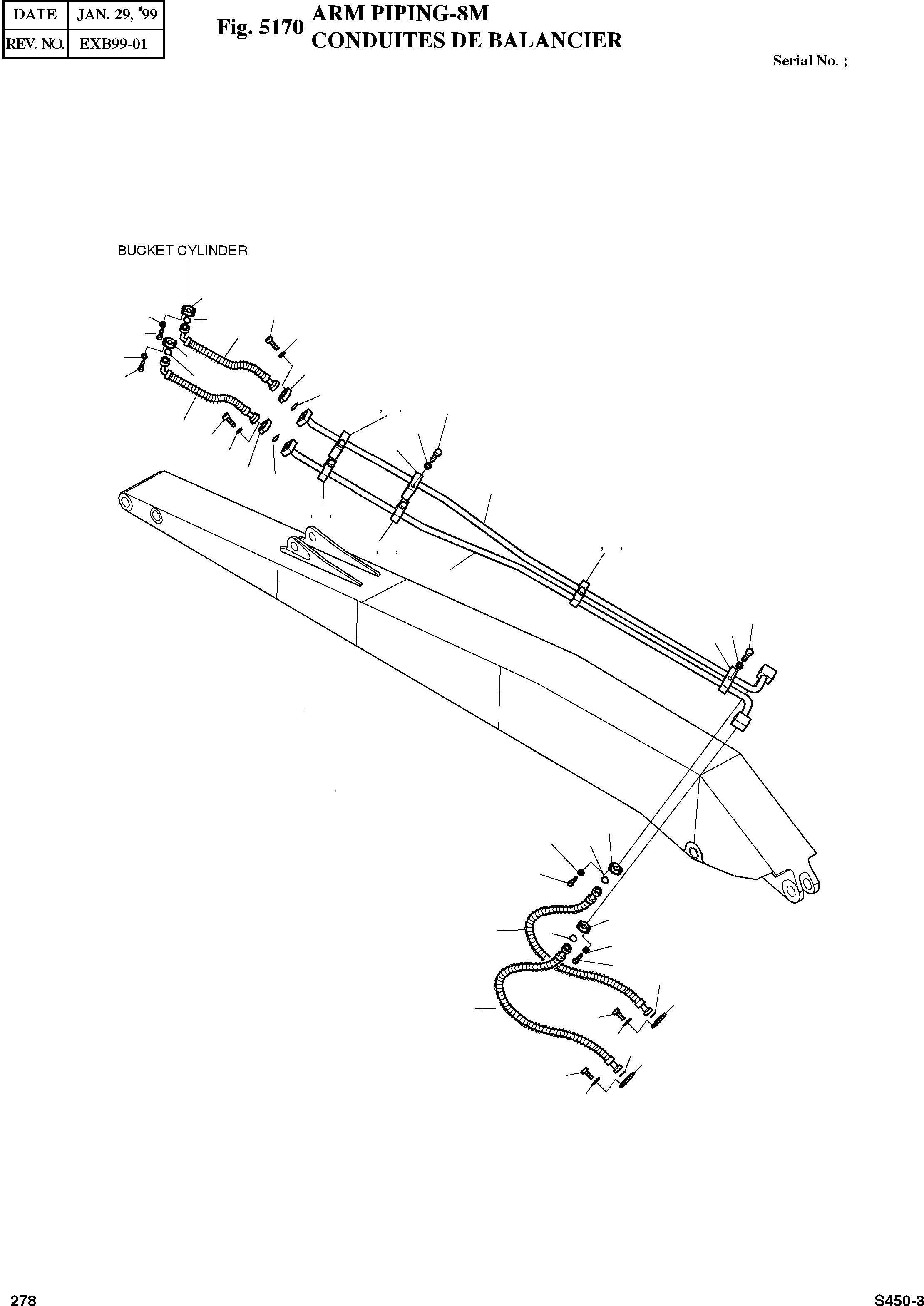

ARM PIPING-8M

SC: D

-2шт.

1

2184-1081D6

HOSE 2-1"6000PSI-1625L

desc: TUYAU FLEXIBLE

2шт.

2

2183-3921

PIPE

desc: TUYAU

1шт.

3

2183-3922

PIPE

desc: TUYAU

1шт.

4

2184-1100D62

HOSE 3/4"6000PSI+1"6000PSI-1030L

desc: TUYAU FLEXIBLE

1шт.

5

2184-1100D63

HOSE 2-1"6000PSI-1030L

desc: TUYAU FLEXIBLE

1шт.

6

2181-9081

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

14шт.

7

2180-1026D19

O-RING SAE 1 "

desc: JOINT TORIQUE

7шт.

8

S2215561

BOLT;SOCKET M12X1.75X45

desc: BOULON A 6 PANS CREUX

28шт.

9

S5110701

WASHER;SPRING M12

REP_PNO: 8131-009

28шт.

10

2181-9080

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

2шт.

11

2180-1026D2

O-RING SAE 3/4"

desc: JOINT TORIQUE

1шт.

12

S2212361

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

4шт.

13

S5110601

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

14

2124-1506

CLAMP;PIPE

desc: ATTACHE DE TUYAU

4шт.

15

2124-1505

CLAMP;PIPE

desc: ATTACHE DE TUYAU

2шт.

16

S0565661

BOLT M16X2.0X70

desc: BOULON A 6 PANS

6шт.

17

S5102901

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

6шт.
