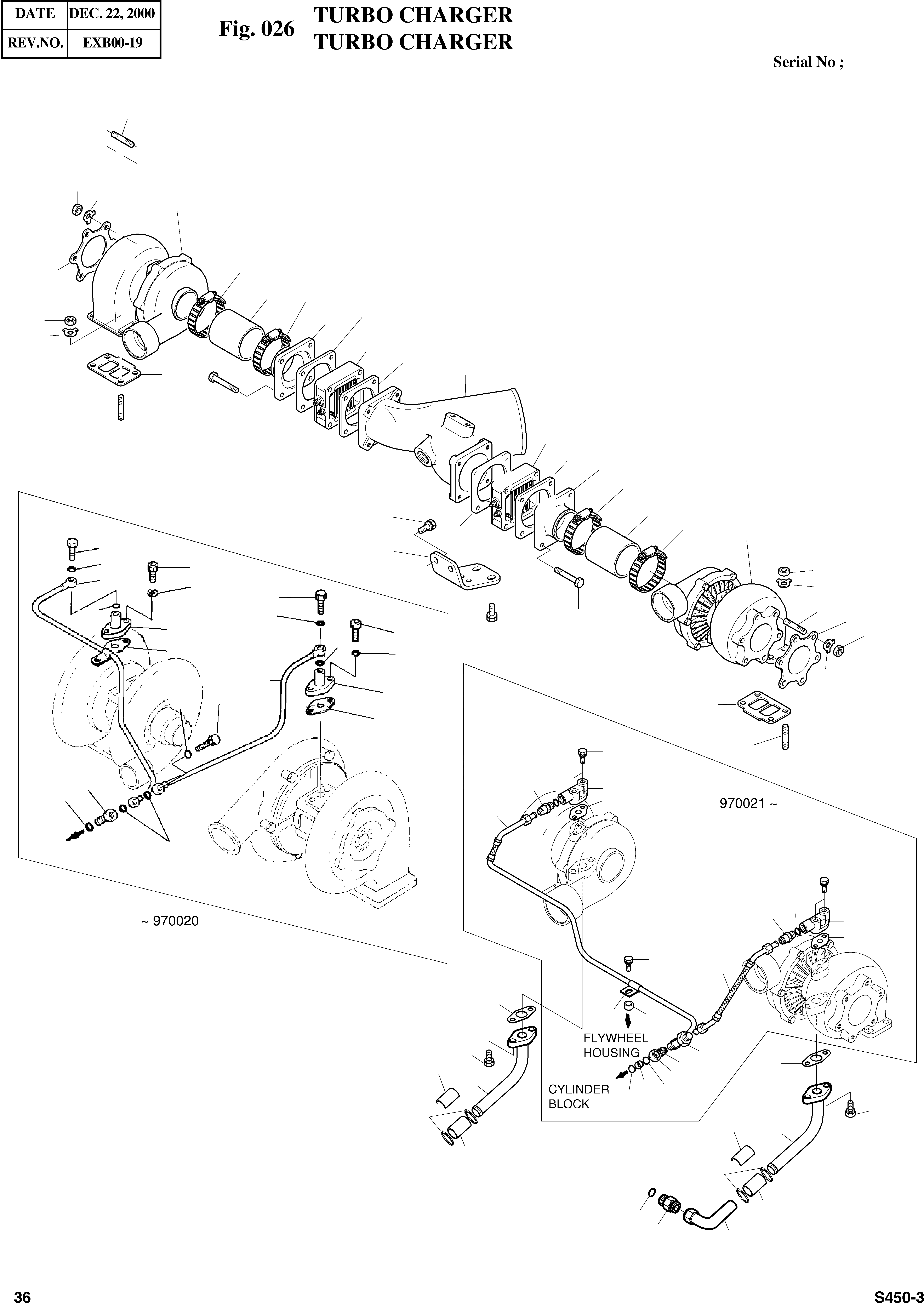

Запчасти Doosan Daewoo TURBO CHARGER ENGINE PARTS

101

65.09100-7087

TURBO;CHARGER(RH)

desc: TURBO CHARGER

1шт.

102

65.09100-7088

TURBO;CHARGER(LH)

desc: TURBO CHARGER

1шт.

103

65.09901-0021

GASKET

SERIAL: 960426

2шт.

103

65.09901-0018A

GASKET

SERIAL: 960427

2шт.

104

65.90201-0070

BOLT;STUD

SERIAL: 690618

8шт.

104

65.90201-0073

BOLT.STUD

SERIAL: 690619

8шт.

105

06.11024-9202

NUT(M10X1.25)

desc: ECROU

8шт.

106

65.90201-0069

BOLT;STUD

SERIAL: 690618

12шт.

106

65.90201-0072

BOLT;STUD

SERIAL: 690619

12шт.

107

06.11063-8215

NUT;HEX. M10

desc: ECROU

12шт.

108

06.16030-8208

WASHER;DOUBLE TAB

desc: RONDELLE

20шт.

109

65.09901-0007

GASKET

SERIAL: 960528

2шт.

109

65.09901-0012

GASKET

SERIAL: 960529

2шт.

111

65.08202-0238

STAKE;INTAKE

desc: COLLECTEUR

1шт.

112

65.08240-0018

BRACKET

SERIAL: 960528

1шт.

112

65.08240-0012

BRACKET

SERIAL: 960529

1шт.

114

06.01923-3215

HEX. BOLT ASS'Y M10X25

desc: BOULON A 6 PANS

4шт.

115

65.96301-0179

HOSE;RUBBER

desc: FLEXIBLE CAOUTCHOUC

2шт.

116

06.67020-0112

CLAMP;HOSE

desc: COLLIER A DURITE NWS5748

4шт.

117

65.08202-0239

STAKE;INTAKE(FLANGE)

desc: COLLECTEUR

2шт.

118

65.26803-7024

HEATER;AIR

desc: CHAUFFAGE

2шт.

119

65.08904-0001

GASKET

SERIAL: 970726

4шт.

119

65.08904-0002

GASKET

SERIAL: 970727

4шт.

120

06.01923-3122

BOLT;HEX. M8X55

desc: BOULON A 6 PANS

8шт.

201

65.05701-5270

OIL DEL. PIPE ASS'Y T/C(R.H.)

SERIAL: 970020

1шт.

201

65.05701-6077

OIL DEL. PIPE ASS'Y T/C(R.H.)

SERIAL: 970021

1шт.

202

65.05701-5208

OIL DEL. PIPE ASS'Y T/C(L.H.)

SERIAL: 970020

1шт.

202

65.05701-6063

OIL DEL. PIPE ASS'Y T/C(L.H.)

SERIAL: 970021

1шт.

203

65.98131-5003

FLANGE

SERIAL: 970020

2шт.

203

65.05715-0031B

FLANGE

SERIAL: 970021

2шт.

204

65.96601-0180

GASKET

desc: JOINT

2шт.

205

06.02090-0410

BOLT;SOCKET HEAD

SERIAL: 970020

4шт.

205

06.01923-3119

BOLT;HEX M8X40

SERIAL: 970021

4шт.

206

06.15010-2311

WASHER

SERIAL: 970020

4шт.

207

06.78144-2403

SCREW;HOLLOW

desc: VIS CREUSE

2шт.

208

06.56190-0704

RING;SEAL A12X18

SERIAL: 970020

2шт.

208

06.56190-0706

RING;SEAL A12X20

SERIAL: 970021

2шт.

209

65.98130-0079

ADAPTER

SERIAL: 970020

1шт.

209

65.98150-0044A

SCREW;HOLLOW

SERIAL: 970021

1шт.

210

06.56190-0705

RING;SEAL A14X18

SERIAL: 970020

1шт.

210

06.56190-0706

RING;SEAL A12X20

SERIAL: 970021

3шт.

211

65.98150-0031

SCREW;HOLLOW

SERIAL: 970020

1шт.

211

65.98103-0024

UNION;BANJO

SERIAL: 970021

1шт.

212

06.56190-0704

RING;SEAL A12X18

SERIAL: 970020

3шт.

213

65.05701-5207

PIPE;OIL RETURN

desc: TUYAU

1шт.

214

65.05701-5206

PIPE;OIL RETURN

desc: TUYAU

1шт.

215

65.05701-5175

PIPE;OIL TETURN

desc: TUYAU

1шт.

216

65.98130-0068

NIPPLE

desc: GRAISSEUR

1шт.

217

06.56190-0728

RING;SEAL A26X32

desc: BAGUE D'ETANCHEITE

1шт.

218

51.96330-0346

HOSE;RUBBER

desc: FLEXIBLE CAOUTCHOUC

2шт.

219

65.08150-0001

LAGGING

desc: LAGGING

2шт.

220

06.67020-0106

CLAMP;HOSE

desc: COLLIER

4шт.

221

65.96601A0030

GASKET

desc: JOINT

2шт.

222

06.01913-3114

BOLT;HEX. M8X22

desc: BOULON A 6 PANS

4шт.

223

65.97401-0110A

CLIP;PIPE

SERIAL: 970020

2шт.

223

65.97401-0110A

CLIP;PIPE

SERIAL: 970021

1шт.

224

65.91701-0086

SPACER

SERIAL: 970021

1шт.

225

65.98131-0070

NIPPLE;UNION

SERIAL: 970021

2шт.

228

65.90710-0250A

WASHER

SERIAL: 970021

1шт.

229

06.01923-3214

BOLT;HEX. M8X65

SERIAL: 970021

1шт.
