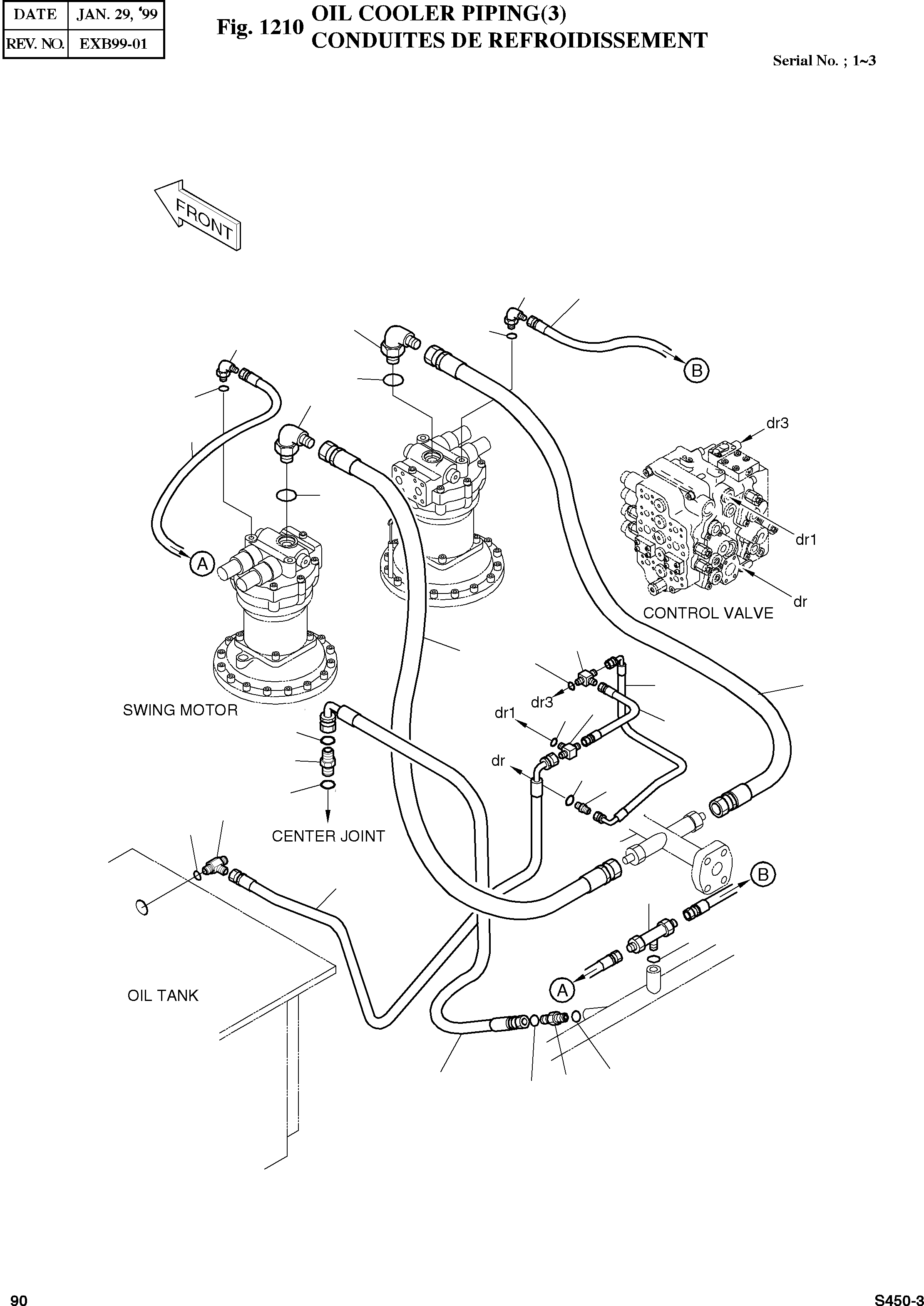

Запчасти Doosan Daewoo OIL COOLER PIPING(3) BODY PARTS

-

2400-1671

OIL COOLER PIPING ASS'Y

SC: D

-2шт.

8

2181-4133D5

ADAPTER;PF3/4-1 3/16ORS

desc: RACCORD

1шт.

9

S8000241

O-RING P24

desc: JOINT TORIQUE

2шт.

10

S8030121

O-RING F12

desc: JOINT TORIQUE

2шт.

29

2184-1061D61

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

1шт.

30

2184-1026D328

HOSE PF3/8-350L

desc: TUYAU FLEXIBLE

1шт.

31

2184-1036D190

HOSE PF1/2-1600L

SERIAL: 1-3

1шт.

31

2184-1026D24

HOSE PF1/2-1300L

SERIAL: 4

1шт.

32

S8000111

O-RING P11

REP_PNO: 8202-009

3шт.

33

2181-1126D34

ADAPTER;LONG PF1/4

desc: RACCORD

1шт.

34

2181-1951D14

TEE PFO1/4. PF/14. PF3/8

desc: TE

1шт.

35

2181-2281D6

TEE PFO1/4. PF3/8. PF1/2

desc: TE

1шт.

36

S8000181

O-RING P18

SERIAL: 1-3

1шт.

36

S8000181

O-RING P18

SERIAL: 4

2шт.

37

2181-1951D8

TEE PFO1/2. PF1/2. PF1/4

desc: TE

1шт.

38

2184-1036D301

HOSE PF1-1100L

desc: TUYAU FLEXIBLE

2шт.

39

S8000291

O-RING P29

REP_PNO: 8202-023

2шт.

40

2181-1702D11

ELBOW PF1

desc: COUDE

2шт.

41

2184-1026D129

HOSE PF3/8-1350L

SERIAL: 4

2шт.

42

2181-2281D13

TEE PF3/8-PF3/8

SERIAL: 4

1шт.

43

S8000141

O-RING P14

SERIAL: 1-3

3шт.

43

S8000141

O-RING P14

SERIAL: 4

2шт.

44

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE EN S

2шт.

45

2184-1196D23

HOSE 1 3/16DRS-2150L

SERIAL: 1-3

1шт.

45

2184-1197D59

HOSE 1 3/16DRS-2500L

SERIAL: 4

1шт.

46

2181-2438

ADAPTER;LONG PF3/4-1 3/16 D

desc: RACCORD

1шт.
