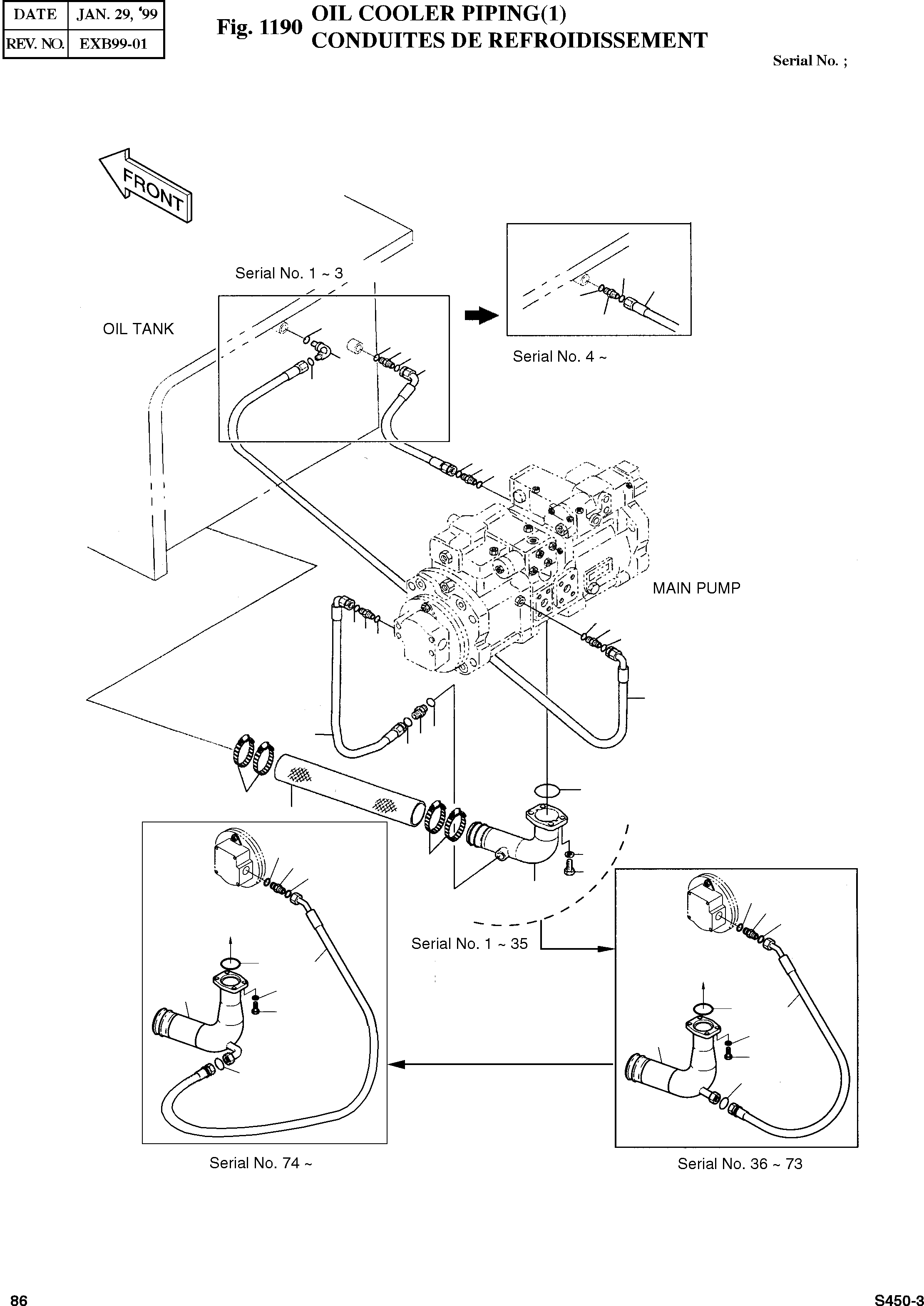

Запчасти Doosan Daewoo OIL COOLER PIPING(1) BODY PARTS

-

2400-1671

PIPING;OIL COOLER

SC: D

-2шт.

1

2140-1065

PIPE;SUCTION

SERIAL: 1-3

1шт.

1

2140-1206

PIPE;SUCTION

SERIAL: 4-35

1шт.

1

2140-1206A

PIPE;SUCTION

SERIAL: 36-73

1шт.

1

2140-1206B

PIPE;SUCTION

SERIAL: 74

1шт.

2

2180-1026D32

O-RING;SAE3"

desc: JOINT TORIQUE

1шт.

3

S5110901

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

4шт.

4

S2221461

BOLT;SOCKET M16X2.0X40

desc: BOULON A 6 PANS CREUX

4шт.

5

2185-1002D54

HOSE;SUCTION 89.1-106.1-800L

SERIAL: 1-3

1шт.

5

2185-1002D88

HOSE;SUCTION 114.3-135-800L

SERIAL: 4

1шт.

6

S8450095

CLAMP 95- 115

SERIAL: 1-3

4шт.

6

S8450127

CLAMP;HOSE

SERIAL: 4

4шт.

7

2184-1197D34

HOSE;SUCTION 1 3/16"-12UN-2B-800L

SERIAL: 1-35

1шт.

7

2184-1212D5

HOSE(45D-S) 1 3/16"-12UN-2B-1000L

SERIAL: 36

1шт.

8

2181-4133D5

ADAPTER;PF3/4-1 3/16ORS

SERIAL: 1-3

4шт.

8

2181-4133D5

ADAPTER;PF3/4-1 3/16ORS

SERIAL: 4

3шт.

9

S8000241

O-RING P24

SERIAL: 1-3

5шт.

9

S8000241

O-RING P24

SERIAL: 4

4шт.

10

S8030121

O-RING F12

SERIAL: 1-3

6шт.

10

S8030121

O-RING F12

SERIAL: 4

5шт.

11

2184-1197D39

HOSE;RETURN 1 3/16"-12UN-2B-1250L

SERIAL: 1-3

1шт.

11

2184-1197D31

HOSE;RETURN 1 3/16"-12UN-2B-950L

SERIAL: 4

1шт.

12

2181-2294D2

ELBOW PFO3/4-1 3/16ORS

desc: COUDE

1шт.

13

2184-1196D52

HOSE;RETURN 1 3/16"-12UN-2B-550L

SERIAL: 1-3

1шт.
