Запчасти Doosan Daewoo MAIN PIPING(4) BODY PARTS

-

2400-1677

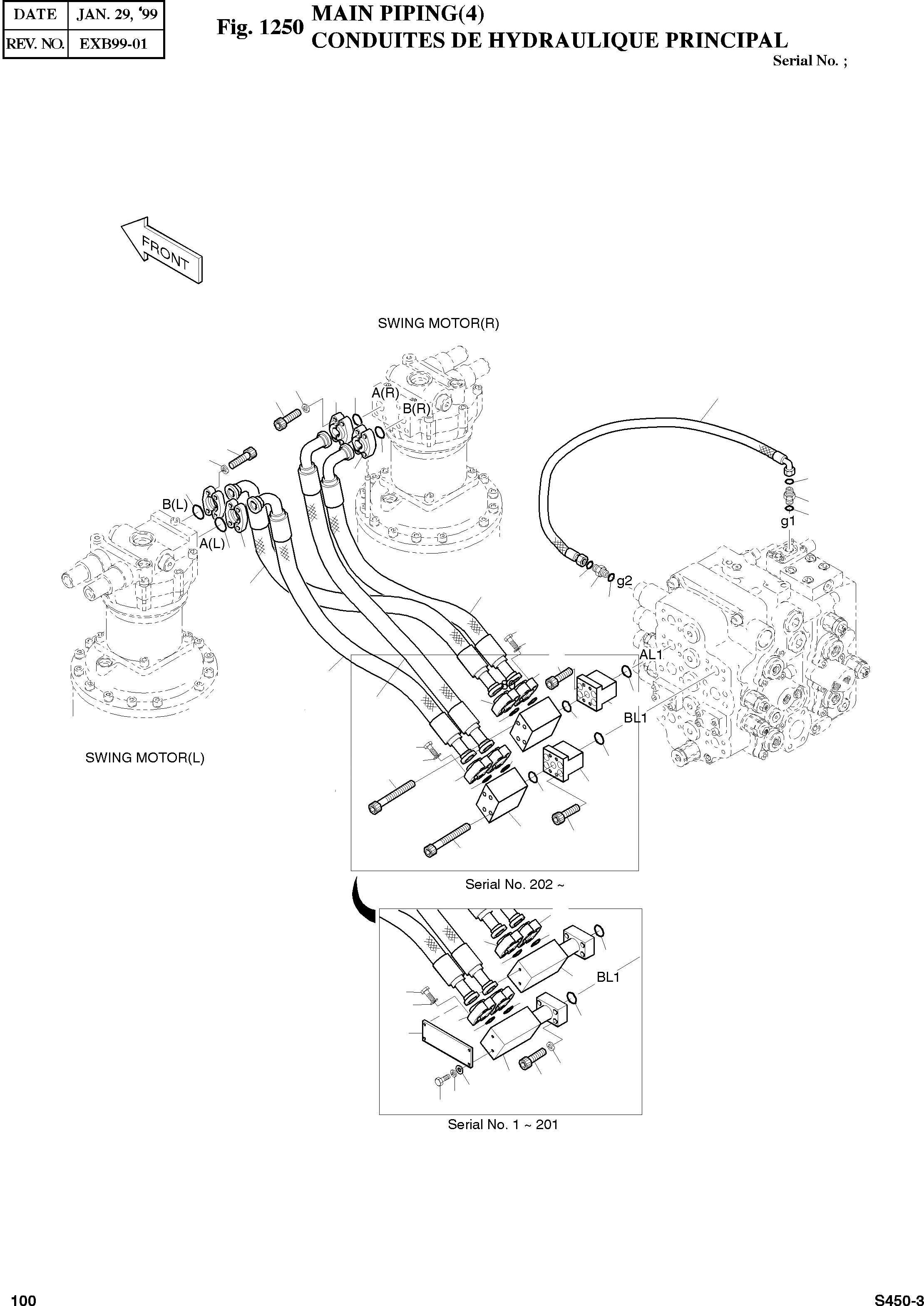

MAIN PIPING(4)

SC: D

-2шт.

3

2181-4133D2

ADAPTER PF3/8-ORFS3/8

desc: RACCORD

2шт.

4

2423-1445

BLOCK;SWING

SERIAL: 1-201

2шт.

4

2423-1546

BLOCK;SWING

SERIAL: 202

2шт.

10

S8030061

O-RING ORFS

desc: JOINT TORIQUE

2шт.

11

S8000141

O-RING P14

REP_PNO: 8202-011

2шт.

12

2180-1026D2

O-RING SAE 3/4"

SERIAL: 1-201

8шт.

12

2180-1026D2

O-RING SAE 3/4"

SERIAL: 202

10шт.

13

2180-1026D19

O-RING SAE 1"

desc: JOINT TORIQUE

2шт.

26

2184-1100D87

HOSE PF3/4-900L

desc: TUYAU FLEXIBLE

1шт.

31

2184-1100D88

HOSE PF3/4-1000L

desc: TUYAU FLEXIBLE

1шт.

34

2184-1100D87

HOSE PF3/4-900L

SERIAL: 1-3

1шт.

34

2184-1100D95

HOSE PF2-3/4-850L

SERIAL: 4

1шт.

35

2184-1100D88

HOSE PF3/4-1000L

SERIAL: 1-3

1шт.

35

2184-1100D96

HOSE PF2-3/4 5000PSI-1100L

SERIAL: 4

1шт.

38

2184-1197D53

HOSE PF11/16 16UN-2B-860L

desc: TUYAU FLEXIBLE

1шт.

42

S2212561

BOLT;SOCKET M10X1.5X45

SERIAL: 1-201

8шт.

42

S2213161

BOLT;SOCKET M10X1.5X75

SERIAL: 202

8шт.

55

S5110601

WASHER;SPRING M10

SERIAL: 1-201

32шт.

55

S5110601

WASHER;SPRING M10

SERIAL: 202

24шт.

67

2191-3718

PLATE;CLAMP

SERIAL: 1-3

1шт.

67

2191-3718A

PLATE;CLAMP

SERIAL: 4-201

1шт.

68

S0504553

BOLT M6X1.0X14

SERIAL: 1-63

4шт.

68

S0504653

BOLT M6X1.0X16

SERIAL: 64-201

4шт.

69

S5102303

WASHER;SPRING M6

SERIAL: 1-201

4шт.

70

2181-9079

FLANGE 3/4-5000PSI

desc: FLASQUE EN DEUX PARTIES

16шт.

71

S2212261

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

32шт.

76

2114-1058D52

WASHER

SERIAL: 64-201

4шт.

80

2423-1547

BLOCK

SERIAL: 202

2шт.

81

S2214161

BOLT;SOCKET M10X1.5X125

SERIAL: 202

8шт.
