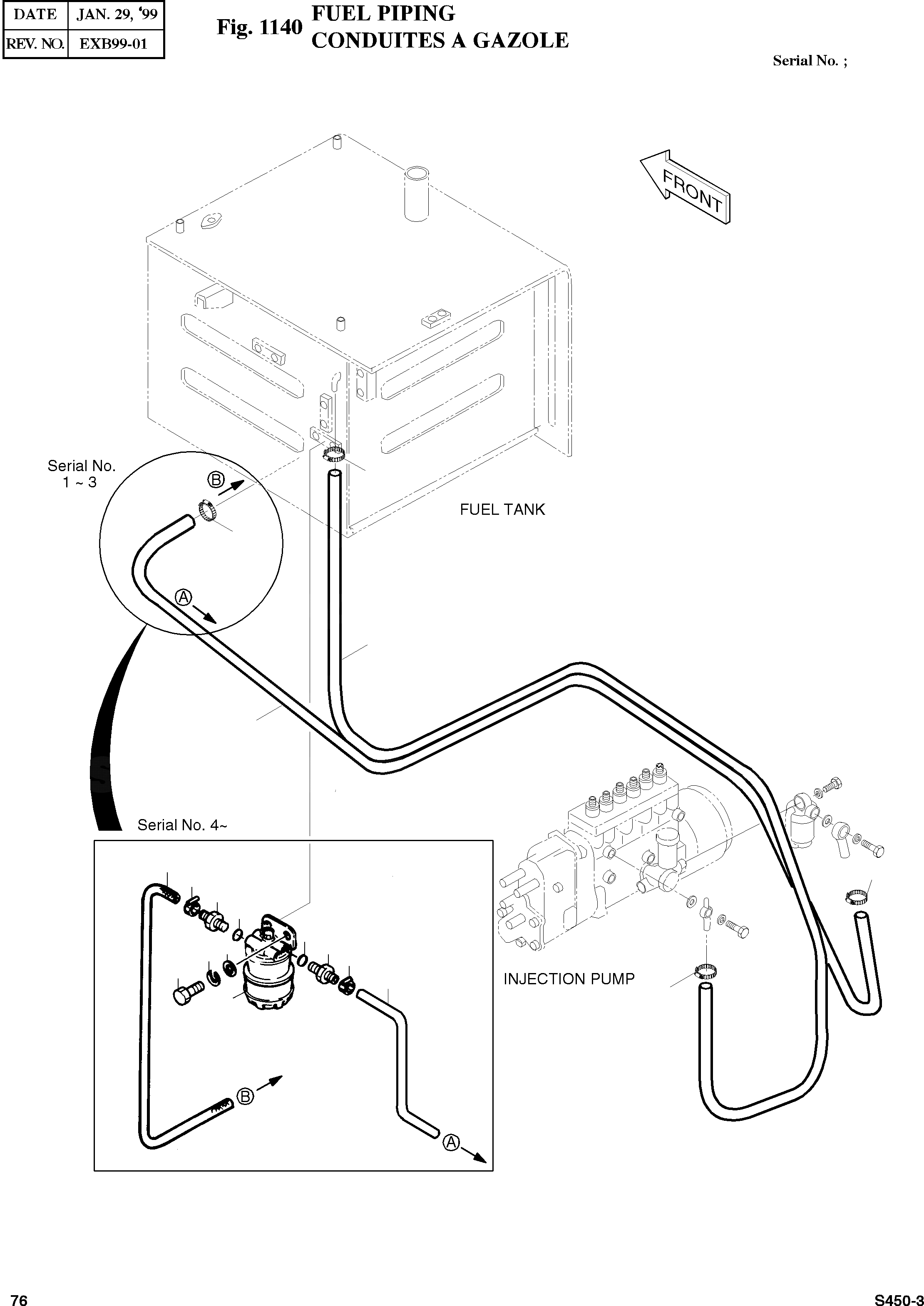

Запчасти Doosan Daewoo FUEL PIPING BODY PARTS

-

2470-2035

FUEL TANK ASS'Y

desc: ENSEMBLE RESERVOIR DE GAZOLE

1шт.

9

2185-1247D69

HOSE 9.53-15.88-1600L

SERIAL: 4-73

1шт.

9

2185-1247D74

HOSE 9.53-15.88-1450L

SERIAL: 74

1шт.

11

S8450012

CLAMP;HOSE

SERIAL: 1-3

4шт.

11

S8450012

CLAMP;HOSE

SERIAL: 4

6шт.

12

2185-1247D103

HOSE 9.53-15.88-3800L

SERIAL: 1-3

1шт.

12

2185-1247D70

HOSE 9.53-15.88-3500L

SERIAL: 4

1шт.

19

2185-1247D68

HOSE 11.11-18.26-3500L

desc: TUYAU FLEXIBLE

1шт.

24

2474-9403

SEDIMENTOR

SERIAL: 4

1шт.

25

S8180211

SEAL;RING

SERIAL: 4

2шт.

26

2181-4123

PIPE;FUEL

SERIAL: 4

2шт.

27

S0555953

BOLT M8X1.25X30

SERIAL: 4

2шт.

28

S5010513

WASHER;PLAIN M8

SERIAL: 4

2шт.

29

S5102503

WASHER;SPRING M8

SERIAL: 4

2шт.
