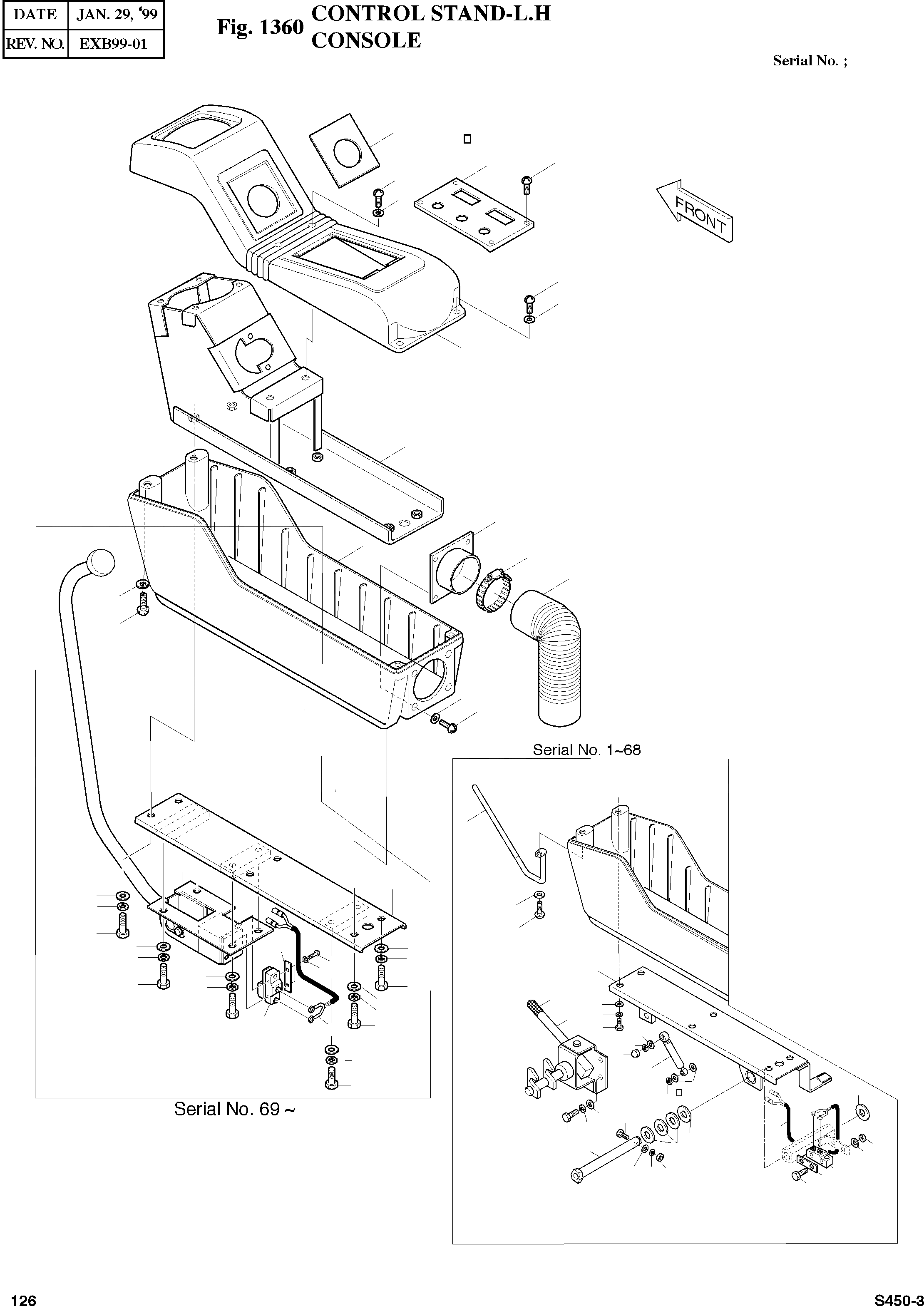

Запчасти Doosan Daewoo CONTROL STAND-L.H BODY PARTS

-

2197-1176

CONTROL STAND ASS'Y

SERIAL: 1-68

-2шт.

-

2197-1749

CONTROL STAND ASS'Y

SERIAL: 69

-2шт.

2

2133-1997A

LEVER ASS'Y

desc: LEVIER

1шт.

7

2125-1078B

CASE;UPPER

desc: CARTER

1шт.

8

2125-1079

CASE;LOWER

desc: CARTER

1шт.

10

2621-2747A

COVER;SWITCH(L)

desc: COUVERCLE

1шт.

11

2190-2724

PLATE;NAME

desc: PLAQUE SIGNALETIQUES

1шт.

13

2440-9178

SPRING;GAS

SERIAL: 1-68

1шт.

15

2195-3772

BRACKET

desc: SUPPORT

1шт.

24

S5000113

WASHER;PLAIN M4

SERIAL: 1-68

2шт.

25

S3458843

SCREW M5X0.8X14

desc: VIS

6шт.

26

S5000213

WASHER;PLAIN M5

desc: RONDELLE PLATE

8шт.

29

2133-1923B

LEVER;SAFETY

SERIAL: 1-68

1шт.

30

S5020313

WASHER;PLAIN M6

SERIAL: 1-68

1шт.

31

S5110303

WASHER;SPRING M6

SERIAL: 1-68

1шт.

36

S5010513

WASHER;PLAIN M8

SERIAL: 1-68

11шт.

36

S5010513

WASHER;PLAIN M8

SERIAL: 69

12шт.

37

S5102503

WASHER;SPRING M8

SERIAL: 1-68

11шт.

37

S5102503

WASHER;SPRING M8

SERIAL: 69

12шт.

38

S3450623

SCREW

SERIAL: 69

2шт.

41

S5102103

WASHER;SPRING M4

desc: RONDELLE ELASTIQUE

2шт.

42

2195-3763B

BRACKET

desc: SUPPORT

1шт.

44

2549-1134

SWITCH;MICRO

desc: COMMUTATEUR MICRO

1шт.

48

2158-1017D2

HOSE

desc: TUYAU FLEXIBLE

1шт.

49

S8450053

CLAMP;HOSE

desc: COLLIER

2шт.

50

2133-1916C

LEVER ASS'Y

SERIAL: 1-68

1шт.

51

S0508953

BOLT M8X1.25X22

desc: BOULON A 6 PANS

10шт.

53

S5020513

WASHER;PLAIN M8

SERIAL: 1-68

2шт.

54

2132-1103

GRIP

SERIAL: 1-68

1шт.

55

2123-1868B

PIN

SERIAL: 1-68

1шт.

56

2114-4129

WASHER

SERIAL: 1-68

2шт.

58

S4402532

NUT;CAP M8X1.25

SERIAL: 1-68

1шт.

59

S6540500

RING;RETAINING

SERIAL: 1-68

1шт.

60

2197-1477A

BRACKET(L)

desc: SUPPORT

1шт.

62

S0508653

BOLT M8X1.25X16

SERIAL: 69

2шт.

63

2114-1059D31

SHIM 0.4T

SERIAL: 1-68

3шт.

64

S3458863

SCREW M5X0.8X20

desc: VIS

4шт.

66

S3458353

SCREW M3X0.5X12

desc: VIS

4шт.

67

2530-1438

HARNESS;MICRO S/W

SERIAL: 1-68

1шт.

67

2530-1586

HARNESS;MICRO S/W

SERIAL: 69

1шт.

68

S0151313

BOLT M4X0.7X25

SERIAL: 1-68

2шт.

69

S4012133

NUT M4X0.7

SERIAL: 1-68

2шт.

70

2191-3314

PLATE

desc: PLAQUE

1шт.

71

S0553553

BOLT M6X1.0X45

SERIAL: 1-68

1шт.

72

S4012333

NUT M6X1.0

SERIAL: 1-68

1шт.
