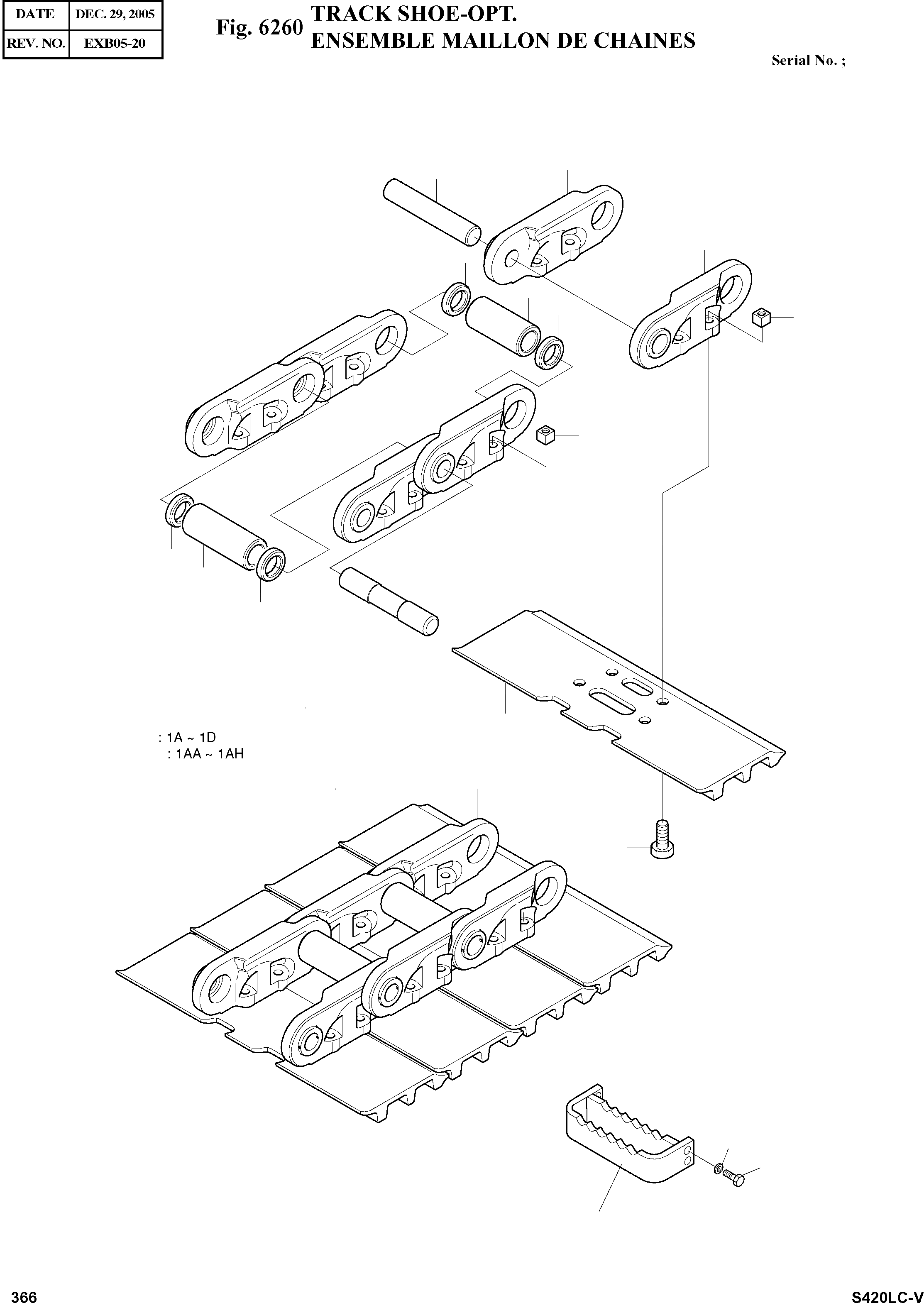

Запчасти Doosan Daewoo TRACK SHOE-OPT OPTION PARTS

-

2273-7078

TRACK SHOE ASS'Y

SC: D

-2шт.

-

2273-7079

TRACK SHOE ASS'Y

SC: D

-2шт.

-

2273-7080

TRACK SHOE ASS'Y

SC: D

-2шт.

1

2273-6071D1

TRACK SHOE ASS'Y-750G

desc: ENSEMBLE MAILLON DE CHAINES

2шт.

1

2273-6071D2

TRACK SHOE ASS'Y-800G

SERIAL: 1001-1449

2шт.

1

K1011429

TRACK SHOE ASS'Y-800G

SERIAL: 1450

2шт.

1

2273-6071D3

TRACK SHOE ASS'Y-900G

SERIAL: 1001-1399

2шт.

1

K1012127

TRACK SHOE ASS'Y-900G

SERIAL: 1400

2шт.

1A

2272-6185

TRACK LINK ASS'Y

desc: . ENSEMBLE MAILLON DE CHAINES

1шт.

1AA

2272-6188

LINK(R.H)

desc: .. PIECE DE JONCTION

50шт.

1AB

2272-6187

LINK(L.H)

desc: .. PIECE DE JONCTION

50шт.

1AC

2110-6079

BUSHING

desc: .. COUSSINET

49шт.

1AD

2110-6080

BUSHING;MASTER

desc: .. DOUILLE PRINCIPALE

1шт.

1AE

2123-6105

PIN

desc: .. GOUPILLE

49шт.

1AF

2123-6106

PIN;MASTER

desc: .. GOUPILLE

1шт.

1AG

2114-6048

SPACER

desc: .. BAGUE

2шт.

1AH

2180-6091

SEAL;DUST

desc: .. BAGUE

98шт.

1B

2273-6073D1

SHOE;TRACK-750mm 20t

desc: . SABOT

50шт.

1B

2273-6073D2

SHOE;TRACK-800mm 20t

desc: . SABOT

50шт.

1B

2273-6073D3

SHOE;TRACK-900mm 20t

desc: . SABOT

50шт.

1C

2120-6030

BOLT;TRACK M22X1.5

desc: . BOULON A 6 PANS

200шт.

1D

2121-6037

NUT;TRACK M22X1.5

desc: . ECROU

200шт.

2

2625-1220D6

BRACKET-750G

desc: SUPPORT

4шт.

2

2625-1220D7

BRACKET-800G

desc: SUPPORT

4шт.

2

2625-1220D8

BRACKET-900G

desc: SUPPORT

4шт.

4

S0558253

BOLT M10X1.5X35

desc: BOULON A 6 PANS

16шт.

5

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

16шт.
