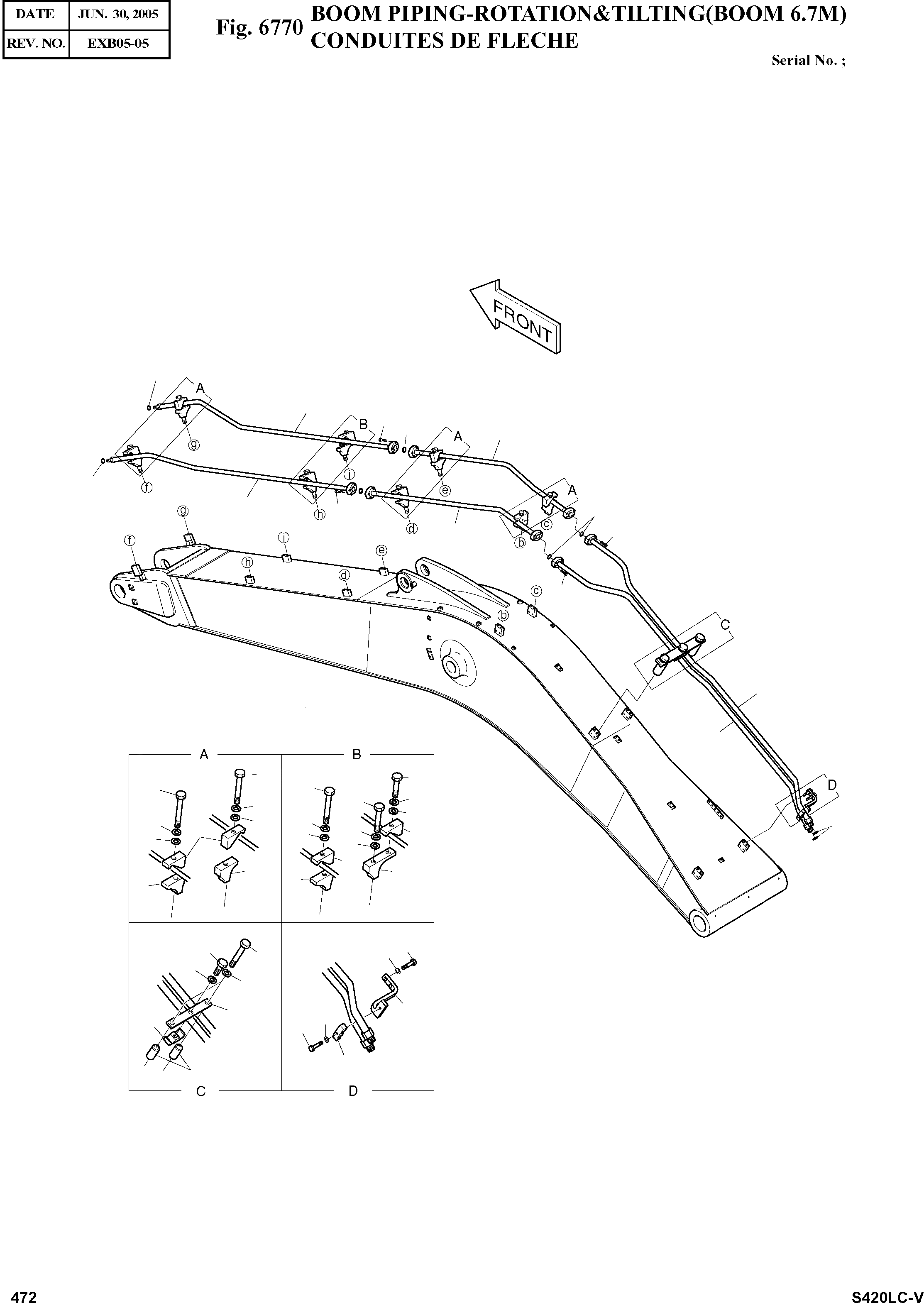

Запчасти Doosan Daewoo BOOM PIPING-ROTATION&TILTING(BOOM 6.7M) OPTION PARTS

-

K1007848

BOOM PIPING-ROTATION & TILTING(BOOM 6.7m

SC: D

-2шт.

1

K1007859

PIPE;BOOM

desc: TUYAU

1шт.

2

K1007860

PIPE;BOOM

desc: TUYAU

1шт.

3

K1007861

PIPE;BOOM-M(LH)

desc: TUYAU

1шт.

4

K1007862

PIPE;BOOM-M(RH)

desc: TUYAU

1шт.

5

K1007863

PIPE;BOOM2(LH)

desc: TUYAU

1шт.

6

K1007864

PIPE;BOOM2(RH)

desc: TUYAU

1шт.

7

124-00258

CALMP;PIPE

desc: ATTACHE DE TUYAU

7шт.

8

124-00212

CLAMP

desc: ATTACHE DE TUYAU

8шт.

9

K1001988

PLATE

desc: PLAQUE

1шт.

10

124-00256

CLAMP

desc: ATTACHE DE TUYAU

1шт.

11

114-00526

SPACER

desc: BAGUE D'ECARTEMENT

2шт.

12

K1007876

BRACKET

desc: SUPPORT

1шт.

13

2124-1025D2

CLAMP;PIPE

desc: ATTACHE DE TUYAU

1шт.

14

S0562866

BOLT M14X2.0X45

desc: BOULON A 6PANS

2шт.

15

S0563466

BOLT M14X2.0X75

desc: BOULON A 6PANS

2шт.

16

S0564166

BOLT M14X2.0X110

desc: BOULON A 6PANS

7шт.

17

S5102803

WASHER;SPRING M14

desc: RONDELLE ELASTIQUE

13шт.

18

S5010813

WASHER M14

desc: RONDELLE

9шт.

19

S0558453

BOLT M10X1.5X45

desc: BOULON A 6PANS

2шт.

20

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

21

S2209466

BOLT;SOCKET M8X1.25X40

desc: BOULON A 6PANS

16шт.

22

2180-1026D30

O-RING

desc: JOINT TORIQUE

4шт.

23

S8030081

O-RING

desc: JOINT TORIQUE

4шт.

24

S0563266

BOLT M14X2.0X65

desc: BOULON A 6PANS

1шт.

25

S0563866

BOLT M14X2.0X95

desc: BOULON A 6PANS

1шт.

26

K1007877

CLAMP;PIPE

desc: ATTACHE DE TUYAU

1шт.
