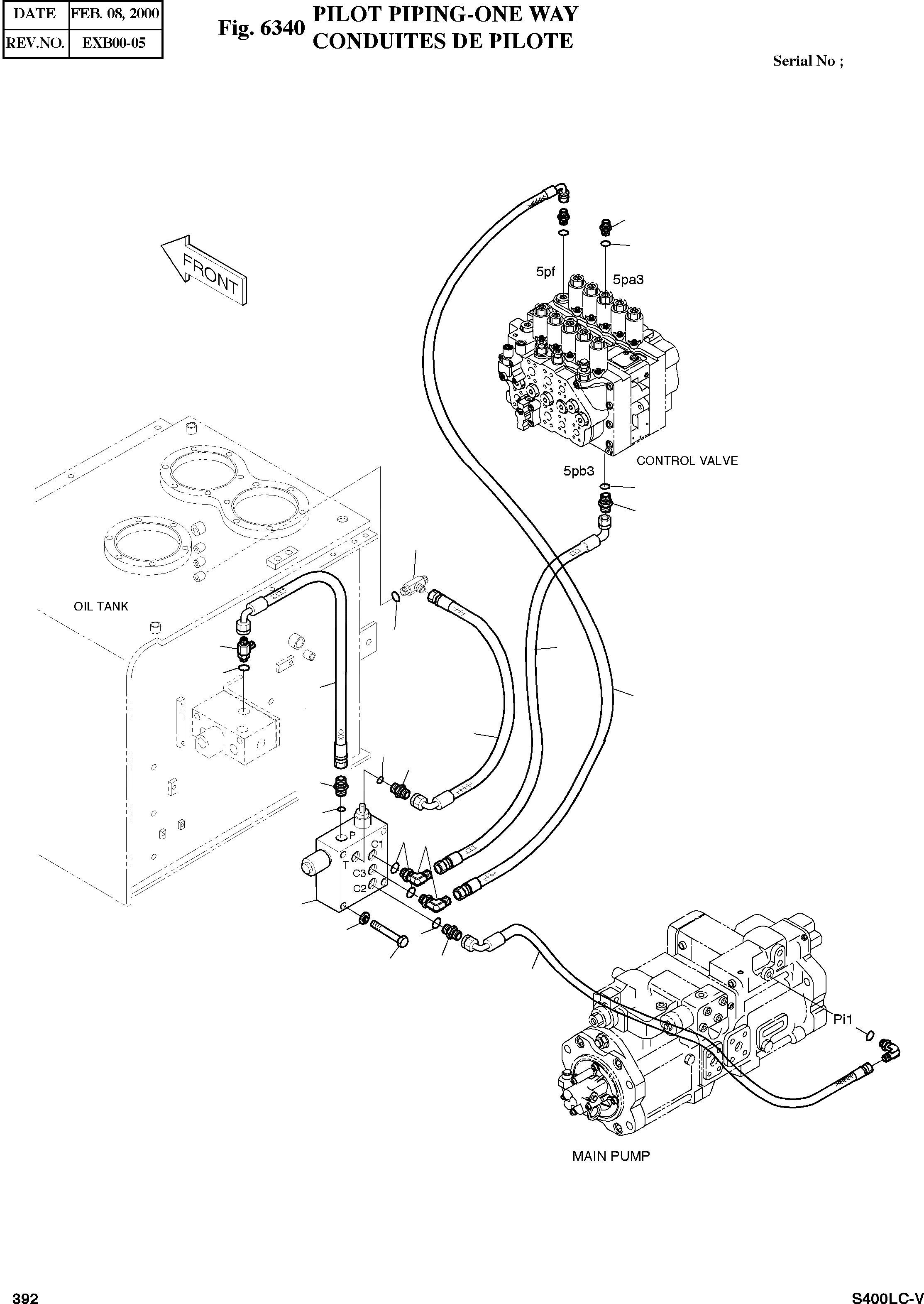

Запчасти Doosan Daewoo PILOT PIPING-ONE WAY OPTION PARTS

-

400-00023

PILOT PIPING-ONE WAY

SC: D

-2шт.

1

2420-9227A

VALVE;BREAKER

desc: SOUPAPE A SOLENOIDE

1шт.

2

S0558953

BOLT

desc: BOULON A 6 PANS

3шт.

3

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

3шт.

4

2181-1126D14

ADAPTER

desc: RACCORD ADAPTATEUR

3шт.

5

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

6

2181-1702D4

ELBOW

desc: COUDE

2шт.

7

2181-2375D5

TEE

desc: TE

1шт.

8

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

9

2184-1046D108

HOSE PF1/4-1300L

desc: TUYAU FLEXIBLE

1шт.

10

2184-1045D104

HOSE PF1/4-2400L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1046D108

HOSE PF1/4-1300L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1046D63

HOSE PF1/4-500L

SERIAL: 1001-1074

1шт.

12

2184-1046D195

HOSE PF1/4-510L

SERIAL: 1075

1шт.

13

2184-1046D84

HOSE PF1/4-1050L

desc: TUYAU FLEXIBLE

1шт.

14

2181-1126D7

ADAPTER PFO3/8XPF3/8

desc: RACCORD ADAPTATEUR

1шт.

15

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

16

2181-1126D36

ADAPTER PFO3/8XPF1/4

desc: RACCORD ADAPTATEUR

1шт.

17

2181-1951D1

TEE PFO1/4X2-PF1/4

desc: TE

1шт.
