Запчасти Doosan Daewoo MAIN PIPING-ONE & TWO WAY OPTION PARTS

-

400-00006

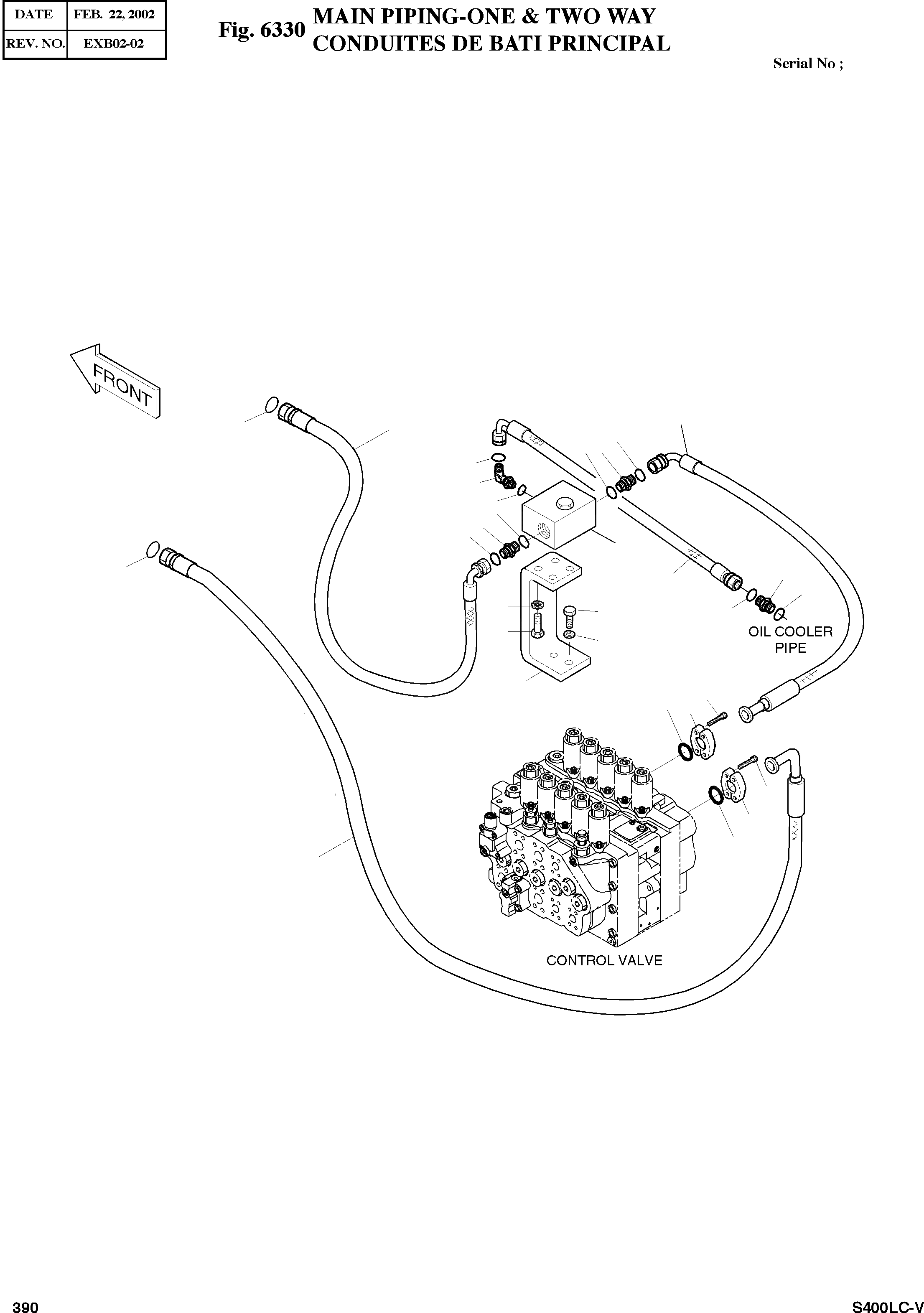

MAIN PIPING-ONE & TWO WAY

SC: D

-2шт.

1

2197-2673

BRACKET

desc: SUPPORT

1шт.

2

2420-9633

VALVE;SWITCH

SERIAL: 1001-1160

1шт.

2

2420-9633A

VALVE;SWITCH

SERIAL: 1161

1шт.

3

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

4шт.

4

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

5

2181-4133D6

ADAPTER PFO1-UNF 1 7/16-12

desc: RACCORD ADAPTATEUR

3шт.

6

S8030161

O-RING

desc: JOINT TORIQUE

6шт.

7

S8000291

O-RING

desc: JOINT TORIQUE

4шт.

8

2181-9078

FLANGE

desc: FLASQUE EN DEUX PARTIES

4шт.

9

S2212361

BOLT;SOCKET M10X1.5X35

SERIAL: 1001-1170

8шт.

9

S2212366

BOLT;SOCKET M10X1.5X35

SERIAL: 1171

8шт.

10

2180-1026D19

O-RING

desc: JOINT TORIQUE

2шт.

11

2184-1197D102

HOSE PF1-1400L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1200D51

HOSE PF1-2600L

SERIAL: 1001-1145

1шт.

12

DS2018053

HOSE PF1-2300L

SERIAL: 1146

1шт.

13

2184-1197D103

HOSE PF1-940L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1201D29

HOSE PF1-700L

desc: TUYAU FLEXIBLE

1шт.

15

2181-2815D1

ELBOW

desc: COUDE

1шт.
