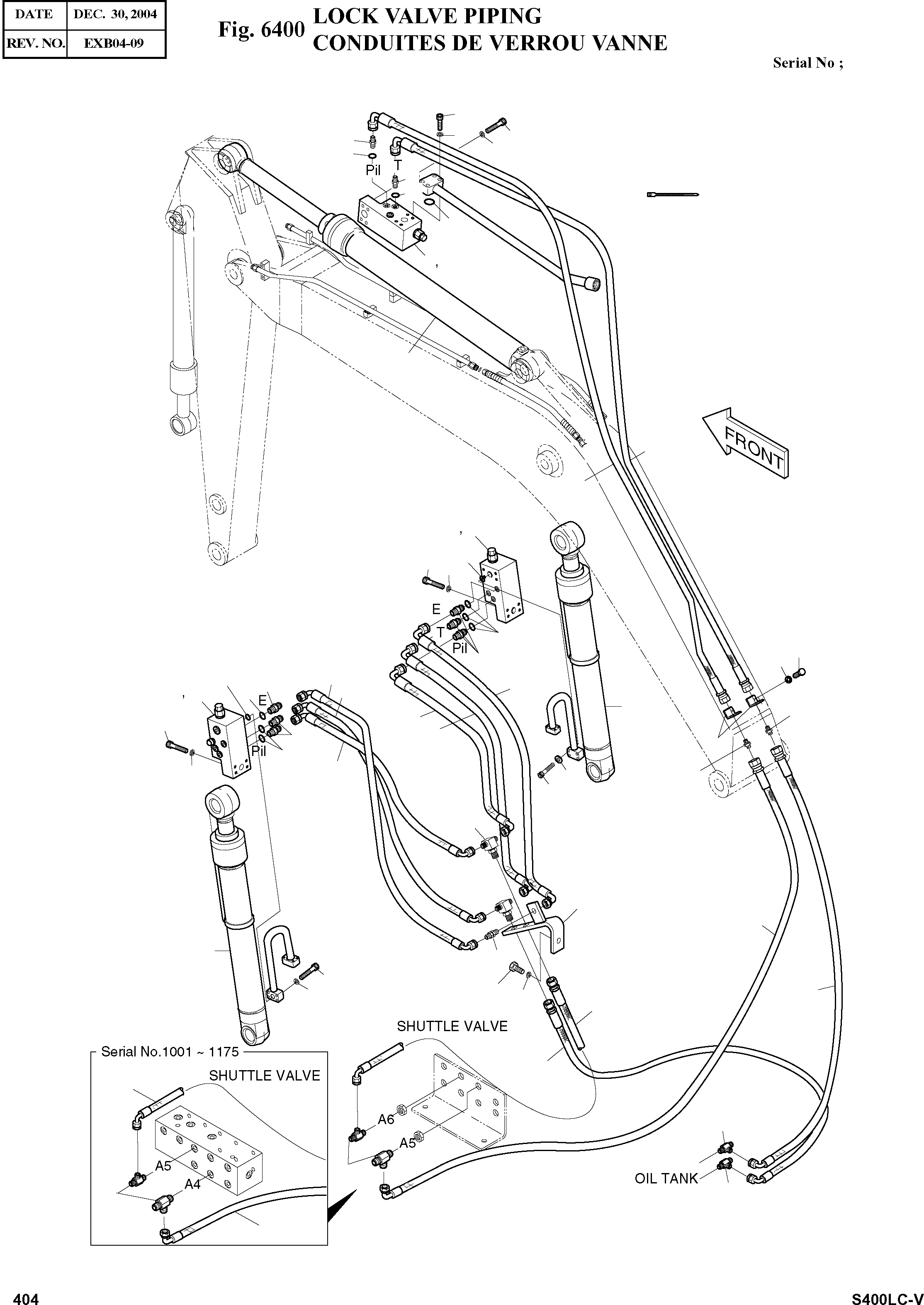

Запчасти Doosan Daewoo LOCK VALVE PIPING OPTION PARTS

-

400-00110

LOCK VALVE PIPING

SC: D

-2шт.

1

420-00004A

VALVE;LOCK

desc: VERROU VANNE

2шт.

1A

K9000999

SEAL KIT

desc: . KIT DE JOINT

1шт.

2

420-00021A

VALVE;LOCK

desc: CONDUITES DE VERROU VANNE

1шт.

2A

K9001000

SEAL KIT

desc: . KIT DE JOINT

1шт.

3

S2215761

BOLT;SOCKET

SERIAL: 1001-1194

8шт.

3

S2215766

BOLT;SOCKET

SERIAL: 1195

8шт.

4

S5110701

WASHER;SPRING

SERIAL: 1001-1194

16шт.

4

S5110706

WASHER;SPRING

SERIAL: 1195

16шт.

5

S2215861

BOLT;SOCKET

SERIAL: 1001-1194

8шт.

5

S2215866

BOLT;SOCKET

SERIAL: 1195

8шт.

6

S8000341

O-RING

desc: JOINT TORIQUE

2шт.

7

181-00008

TEE

desc: TE

2шт.

8

S5110801

WASHER;SPRING

SERIAL: 1001-1194

8шт.

8

S5110803

WASHER;SPRING

SERIAL: 1195

8шт.

9

S2218961

BOLT;SOCKET

SERIAL: 1001-1194

8шт.

9

S2218966

BOLT;SOCKET

SERIAL: 1195

8шт.

10

S8000401

O-RING

desc: JOINT TORIQUE

1шт.

11

2181-1126D34

ADAPTER

desc: RACCORD ADAPTATEUR

6шт.

12

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

13

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

14

181-00007

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

15

197-00021

BRACKET

desc: SUPPORT

2шт.

16

S0565861

BOLT

SERIAL: 1001-1194

2шт.

16

S0565866

BOLT

SERIAL: 1195

2шт.

17

S5102901

WASHER;SPRING

SERIAL: 1001-1194

2шт.

17

S5102903

WASHER;SPRING

SERIAL: 1195

2шт.

18

2181-1951D16

TEE

SERIAL: 1001-1175

2шт.

18

DS2458001

TEE

SERIAL: 1176

2шт.

19

2181-1951D14

TEE

desc: TE

2шт.

20

2124-1084D2

CLIP;BAND

desc: ATTACHE

30шт.

21

181-00020

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

22

S0562453

BOLT

desc: BOULON A 6 PANS

1шт.

23

2114-1058D60

WASHER

desc: RONDELLE PLATE

1шт.

24

195-00130

BRACKET

desc: SUPPORT

1шт.

25

2184-1046D262

HOSE PF1/4-6300L

desc: TUYAU FLEXIBLE

1шт.

26

2184-1046D259

HOSE PF1/4-6000L

desc: TUYAU FLEXIBLE

1шт.

27

2184-1076D125

HOSE PF1/4-950L

desc: TUYAU FLEXIBLE

2шт.

28

2184-1076D126

HOSE PF1/4-900L

SERIAL: 1001-1121

2шт.

28

2184-1062D20

HOSE PF1/4-900L

SERIAL: 1122

2шт.

29

2184-1076D126

HOSE PF1/4-900L

SERIAL: 1001-1121

2шт.

29

2184-1062D20

HOSE PF1/4-900L

SERIAL: 1122

2шт.

30

2184-1036D245

HOSE PF3/8-2200L

desc: TUYAU FLEXIBLE

1шт.

31

2184-1036D28

HOSE PF3/8-2000L

SERIAL: 1001-1121

1шт.

31

2184-1046D116

HOSE PF3/8-2000L

SERIAL: 1122

1шт.

32

2184-1060D190

HOSE PF3/8-1910L

desc: TUYAU FLEXIBLE

1шт.

33

2184-1036D26

HOSE PF3/8-2950L

desc: TUYAU FLEXIBLE

1шт.

34

440-00055

CYLINDER;BOOM(L.H)

desc: VERIN DE FLECHE

1шт.

35

440-00056

CYLINDER;BOOM(R.H)

desc: VERIN DE FLECHE

1шт.

36

440-00057

CYLINDER;ARM

desc: VERIN DE BALANCIER

1шт.
