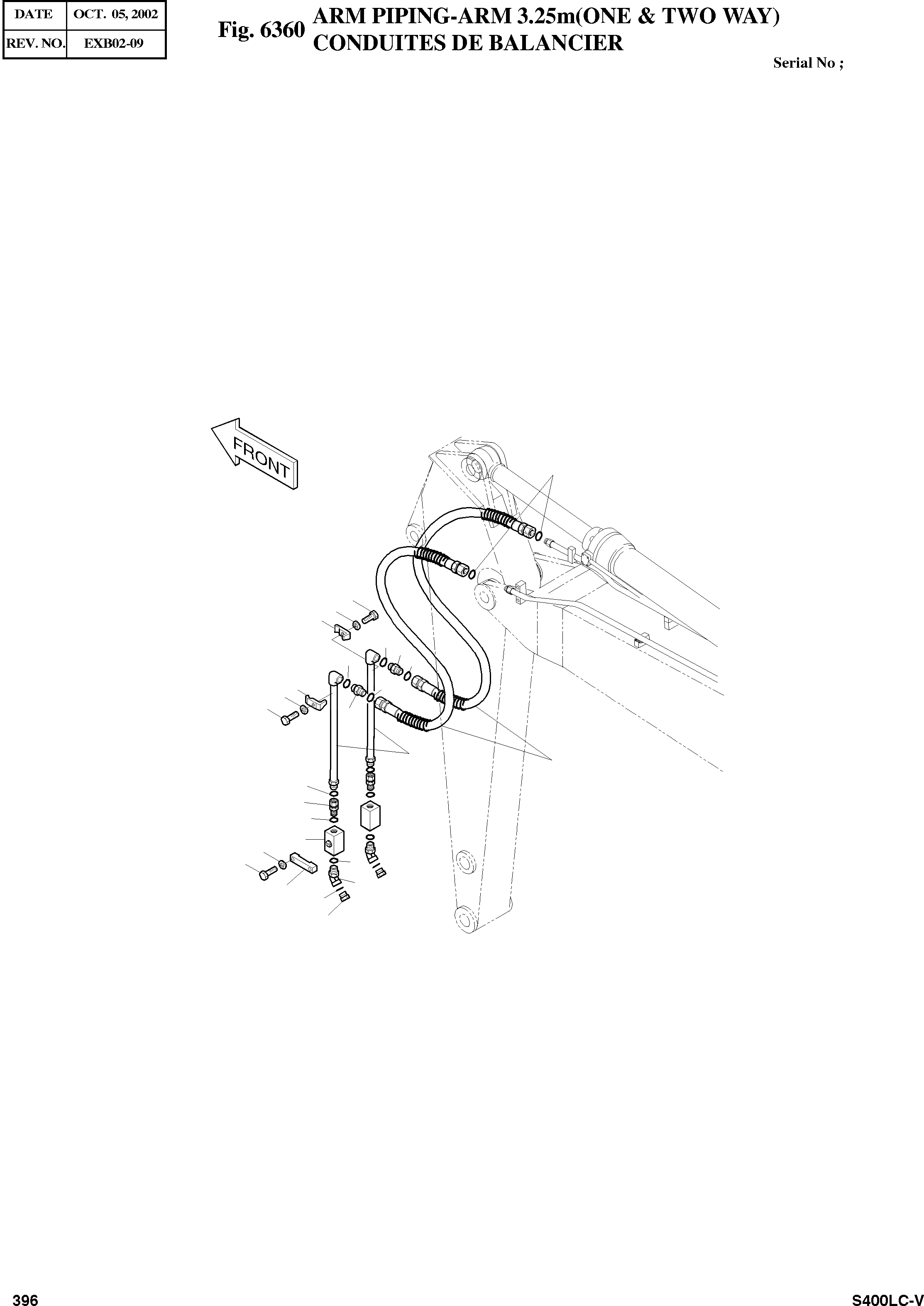

Запчасти Doosan Daewoo ARM PIPING-ARM 3.25M(ONE & TWO WAY) OPTION PARTS

-

400-00009

ARM PIPING(3.25m);ONE & TWO WAY

SC: D

-2шт.

1

2420-9631

VALVE;STOP

SERIAL: 1001-1160

2шт.

1

2420-9631A

VALVE;STOP

SERIAL: 1161

2шт.

2

2181-2816D3

ELBOW

desc: COUDE

2шт.

2

DS2332013

ELBOW(FOR KOREA)

desc: COUDE

2шт.

3

S8000381

O-RING

desc: JOINT TORIQUE

6шт.

4

140-00010

PIPE

desc: CONDUITE

2шт.

5

2181-2817D3

CAP

desc: CHAPEAU

2шт.

5

2181-2820D6

PLUG(FOR KOREA)

desc: CHAPEAU

2шт.

6

2180-1026D37

O-RING

desc: JOINT TORIQUE

8шт.

7

2181-2566D9

ADPATER

desc: RACCORD ADAPTATEUR

2шт.

8

S0565861

BOLT M16X2.0X80

SERIAL: 1001-1220

4шт.

8

S0565866

BOLT M16X2.0X80

SERIAL: 1221

4шт.

9

2181-4133D35

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

10

2184-1196D97

HOSE UNF1 11/16-12-2090L

desc: TUYAU FLEXIBLE

2шт.

11

2124-1697

CLAMP

desc: ATTACHE DE TUYAU

2шт.

12

S5102901

WASHER;SPRING

SERIAL: 1001-1220

8шт.

12

S5102903

WASHER;SPRING

SERIAL: 1221

8шт.

13

S0566161

BOLT M16X2.0X95

SERIAL: 1001-1220

4шт.

13

S0566166

BOLT M16X2.0X95

SERIAL: 1221

4шт.

14

2124-1551

CLAMP;PIPE

desc: ATTACHE DE TUYAU

4шт.
