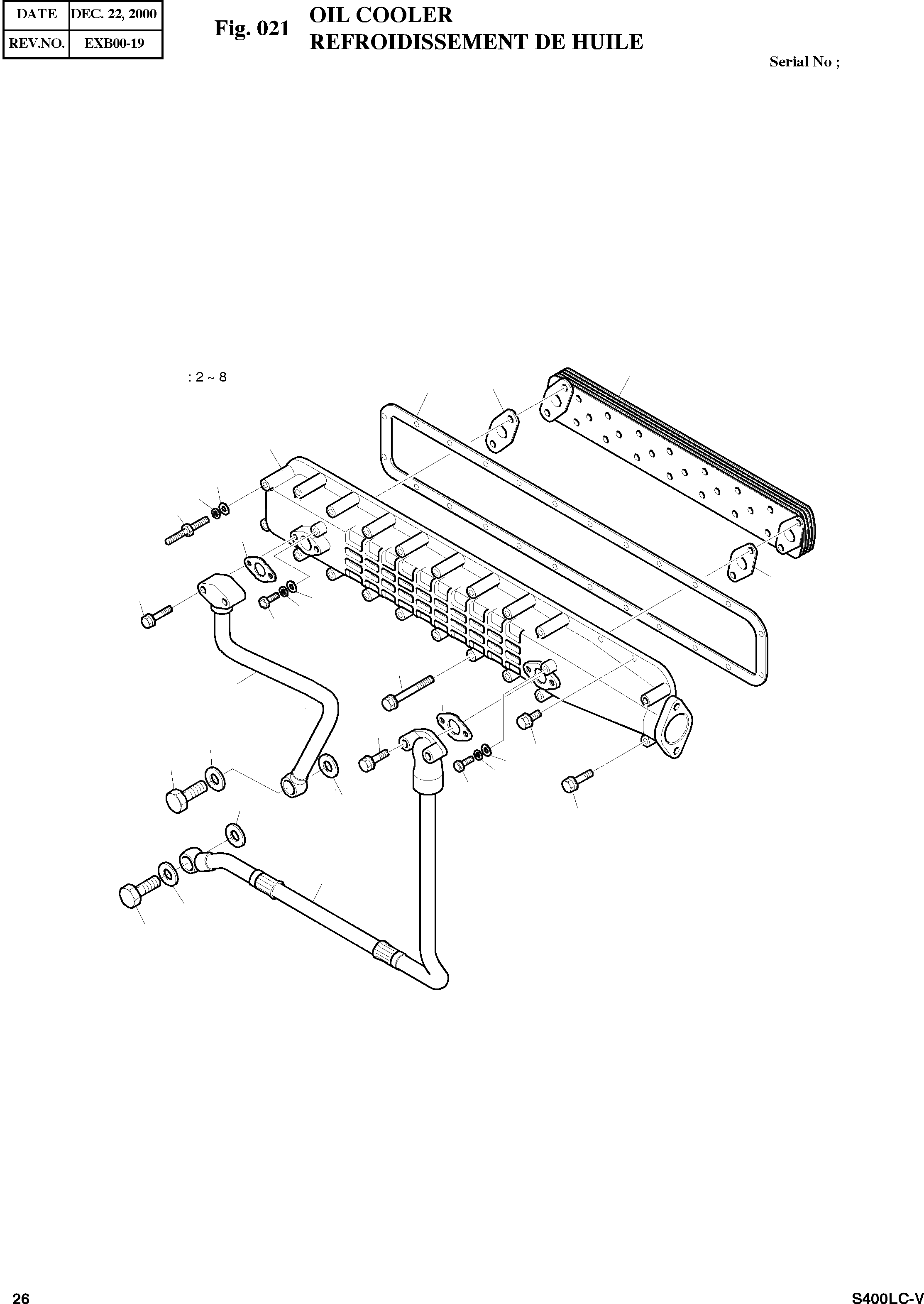

Запчасти Doosan Daewoo OIL COOLER ENGINE PARTS

1

65.05601-7072C

OIL COOLER ASS'Y(1~9)

desc: REFROIDISSEUR D'HUILE

1шт.

2

65.05604-0019B

COVER;OIL COOLER

desc: . COUVERCLE

1шт.

3

65.05606-5027B

OIL COOLER ELEMENT ASS'Y

desc: . ELEMENTRE

1шт.

4

65.05903-0028

GASKET

desc: . JOINT

2шт.

5

06.02090-0512

BOLT;HEX. SOCKET HEAD

desc: . BOULON A 6 PANS

2шт.

6

06.16731-2108

WASHER;SPRING A10

desc: . RONDELLE ELASTIQUE

4шт.

7

06.15010-2312

WASHER

desc: . RONDELLE

4шт.

8

06.02090-0513

BOLT;HEX. SOCKET HEAD

desc: . BOULON A 6 PANS

2шт.

9

65.01907-0008A

GASKET;CHAMBER

desc: JOINT(COUVERCLE DE CHAMBRE D'EAU)

1шт.

10

65.05903-0030A

GASKET

desc: JOINT

2шт.

12

06.01923-3124

BOLT ASS'Y M8X65

desc: BOULON A 6 PANS

13шт.

13

06.01923-3122

BOLT ASS'Y M8X55

desc: BOULON A 6 PANS

2шт.

14

06.01923-3115

BOLT ASS'Y M8X25

desc: BOULON A 6 PANS

4шт.

15

65.05701-5660

PIPE;OIL(O/F-O/C)

desc: CONDUITE

1шт.

17

06.01913-3120

BOLT ASS'Y M8X45

desc: BOULON A 6 PANS

2шт.

18

06.78140-2408

SCREW;HOLLOW M26X32

desc: VIS

1шт.

19

06.56190-0727

RING;SEAL

desc: BAGUE D'ETANCHEITE

2шт.

20

65.05701-5964A

PIPE;OIL(O/C-C/B)

desc: TUYAU D'HUILE

1шт.

21

06.78140-2408

SCREW;HOLLOW M26X1.5

desc: VIS

1шт.

22

06.56190-0728

RING;SEAL

desc: BAGUE D'ETANCHEITE

2шт.

23

06.01913-3120

BOLT ASS'Y M8X45

desc: BOULON A 6 PANS

2шт.

24

65.90201-0066

BOLT;STUD

desc: GOUJON

5шт.

25

06.15010-2311

WASHER;PLAIN

desc: RONDELLE

5шт.

26

06.16731-2107

WASHER;SPRING

desc: RONDELLE ELASTIQUE

5шт.
