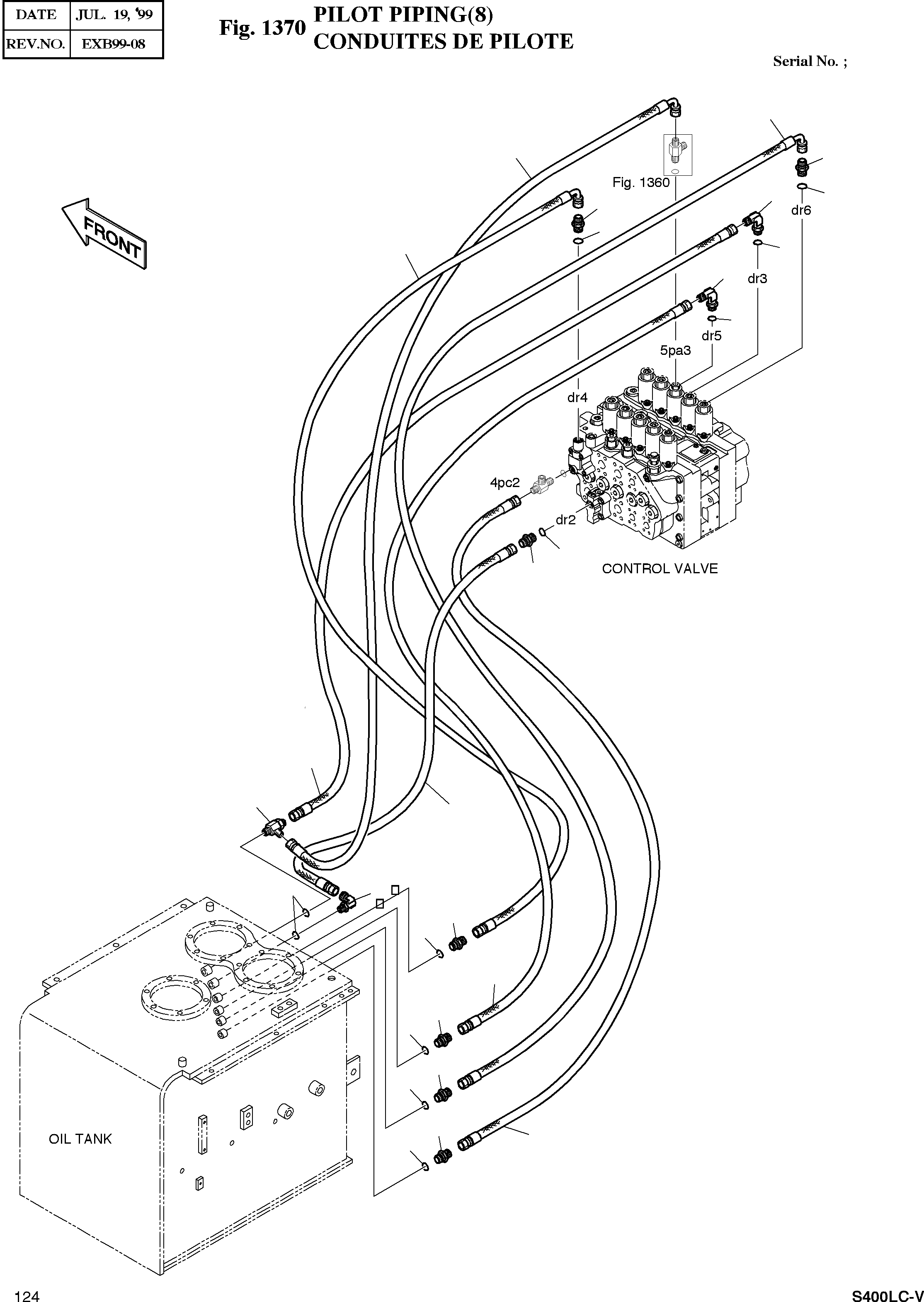

Запчасти Doosan Daewoo PILOT PIPING(8) BODY PARTS

-

2400-2030

PILOT PIPING

SC: D

-2шт.

25

S8000141

O-RING P14

desc: JOINT TORIQUE

4шт.

26

S8000111

O-RING P11

desc: JOINT TORIQUE

7шт.

27

2181-1126D14

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

5шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

34

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE

1шт.

105

2184-1046D213

HOSE PF3/8-1050L

desc: TUYAU FLEXIBLE

1шт.

106

2184-1045D228

HOSE PF3/8-500L

desc: TUYAU FLEXIBLE

1шт.

107

2184-1045D98

HOSE PF1/4-380L

desc: TUYAU FLEXIBLE

1шт.

108

2184-1045D156

HOSE PF1/4-350L

desc: TUYAU FLEXIBLE

1шт.

110

2184-1045D221

HOSE PF1/4-1650L

desc: TUYAU FLEXIBLE

1шт.

111

2184-1046D196

HOSE PF1/4-1550L

desc: TUYAU FLEXIBLE

1шт.

112

2184-1046D125

HOSE PF3/8-750L

desc: TUYAU FLEXIBLE

1шт.

115

2181-1951D16

TEE PFO3/8X2-PF3/8

desc: TE

1шт.
