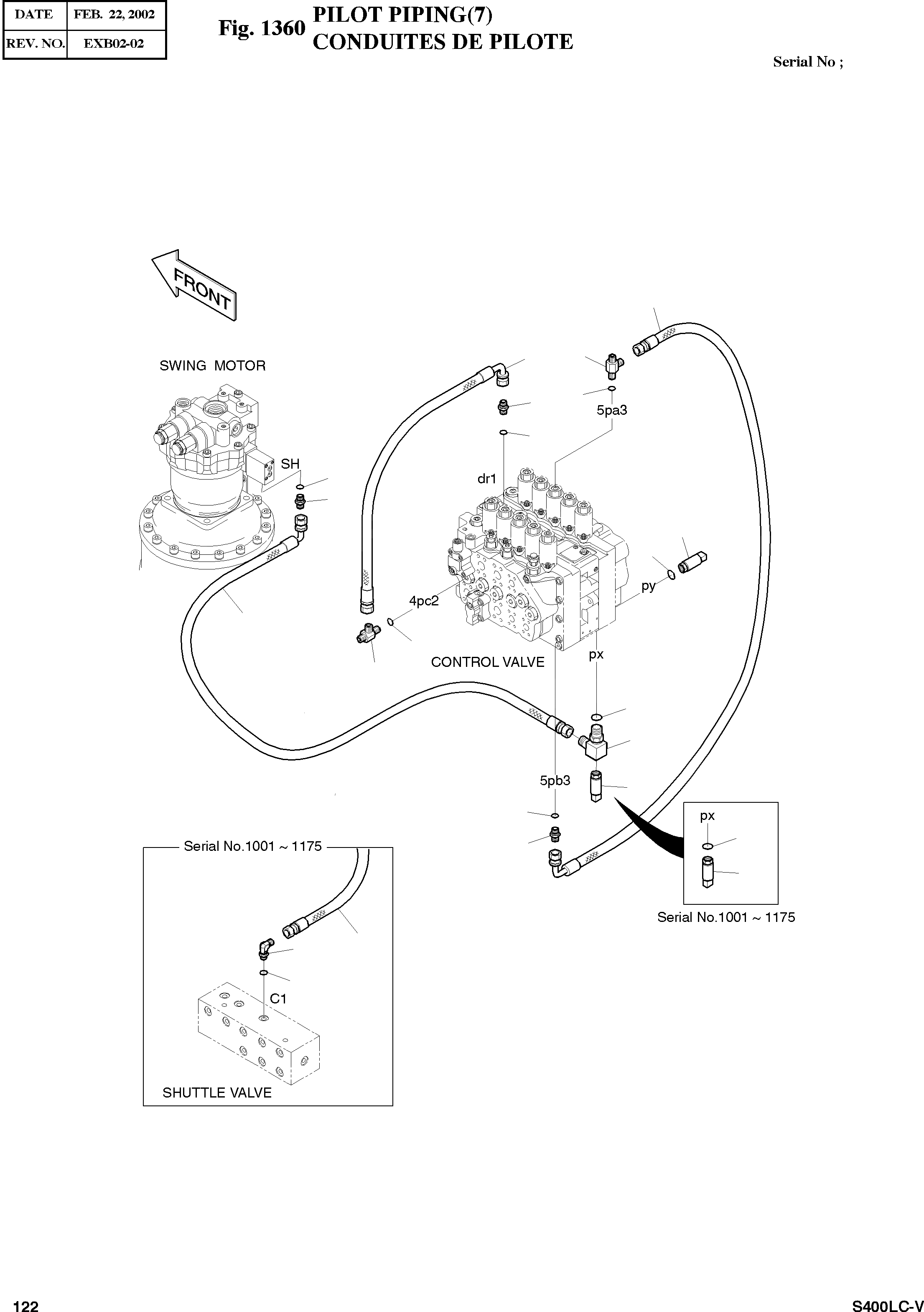

Запчасти Doosan Daewoo PILOT PIPING(7) BODY PARTS

-

2400-2030

PILOT PIPING

SC: D

-2шт.

25

S8000141

O-RING P14

desc: JOINT TORIQUE

2шт.

26

S8000111

O-RING P11

SERIAL: 1001-1175

6шт.

26

S8000111

O-RING P11

SERIAL: 1176

5шт.

27

2181-1126D14

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

SERIAL: 1001-1175

1шт.

38

2181-1951D1

TEE PFO1/4-2PF1/4

desc: TE

1шт.

48

2549-9112

SWITCH;PRESSURE

desc: INTERRUPTEUR

2шт.

93

2184-1046D82

HOSE PF1/4-850L

SERIAL: 1001-1175

1шт.

93

2184-1046D52

HOSE PF1/4-1100L

SERIAL: 1176

1шт.

109

2184-1046D171

HOSE PF1/4-380L

desc: TUYAU FLEXIBLE

1шт.

113

2184-1046D213

HOSE PF3/8-1050L

desc: TUYAU FLEXIBLE

1шт.

115

2181-1951D16

TEE PFO3/8X2-PF3/8

desc: TE

1шт.

134

2181-2760

TEE PFO1/4-2PF1/4

SERIAL: 1176

1шт.
