Запчасти Doosan Daewoo OIL COOLER PIPING(1) BODY PARTS

-

2400-1985A

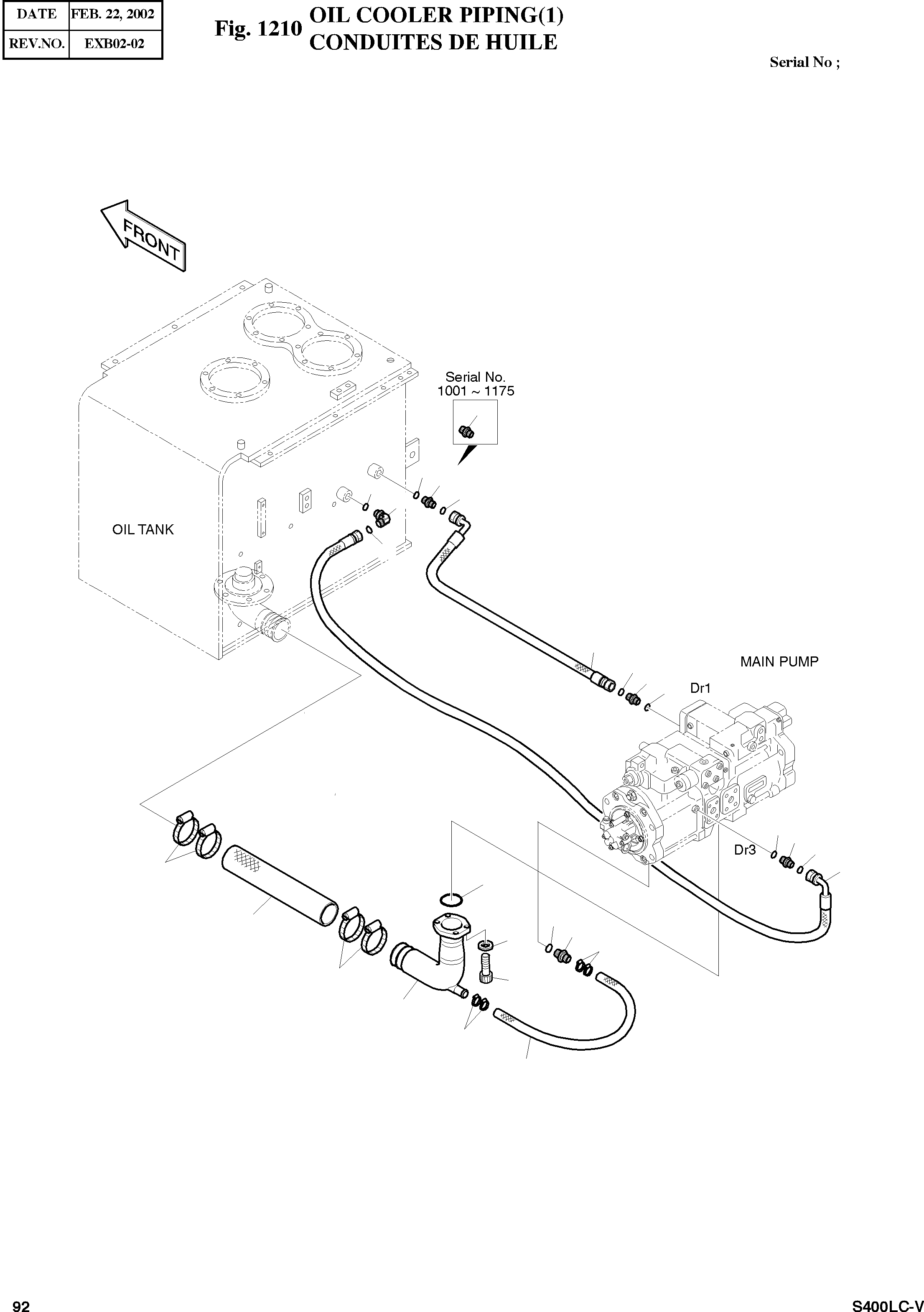

OIL COOLER PIPING

SC: D

-2шт.

1

2140-1462A

PIPE;SUCTION

desc: TUYAU

1шт.

10

2185-1737D2

HOSE 565L

desc: TUYAU FLEXIBLE

1шт.

11

2185-1002D106

HOSE 1000L

SERIAL: 1001-1175

1шт.

11

2185-1002D116

HOSE 900L

SERIAL: 1176

1шт.

15

2184-1197D35

HOSE PF1 3/16-700L

desc: TUYAU FLEXIBLE

1шт.

20

2180-1026D32

O-RING

desc: JOINT TORIQUE

1шт.

21

S5110901

WASHER;SPRING

SERIAL: 1001-1170

4шт.

21

S5110903

WASHER;SPRING

SERIAL: 1171

4шт.

22

S2221461

BOLT;SOCKET M16X2.0X40

SERIAL: 1001-1170

4шт.

22

S2221466

BOLT;SOCKET M16X2.0X40

SERIAL: 1171

4шт.

27

S8000231

O-RING

desc: JOINT TORIQUE

2шт.

28

S8030121

O-RING

desc: JOINT TORIQUE

4шт.

29

2181-4133D5

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

31

2181-2628D1

ELBOW

desc: COUDE

1шт.

33

2184-1197D26

HOSE PF3/16-1600L

SERIAL: 1001-1175

1шт.

33

2184-1197D62

HOSE PF3/16-1300L

SERIAL: 1176

1шт.

36

2181-2627D1

ADAPTER

SERIAL: 1001-1175

1шт.

45

S8450105

CLAMP;HOSE

desc: COLLIER

4шт.

47

2181-2693A

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

48

S8450035

CLAMP;HOSE

desc: COLLIER

4шт.

49

S8000241

O-RING

desc: JOINT TORIQUE

3шт.

52

2181-2627D18

ADAPTER

SERIAL: 1176

1шт.
