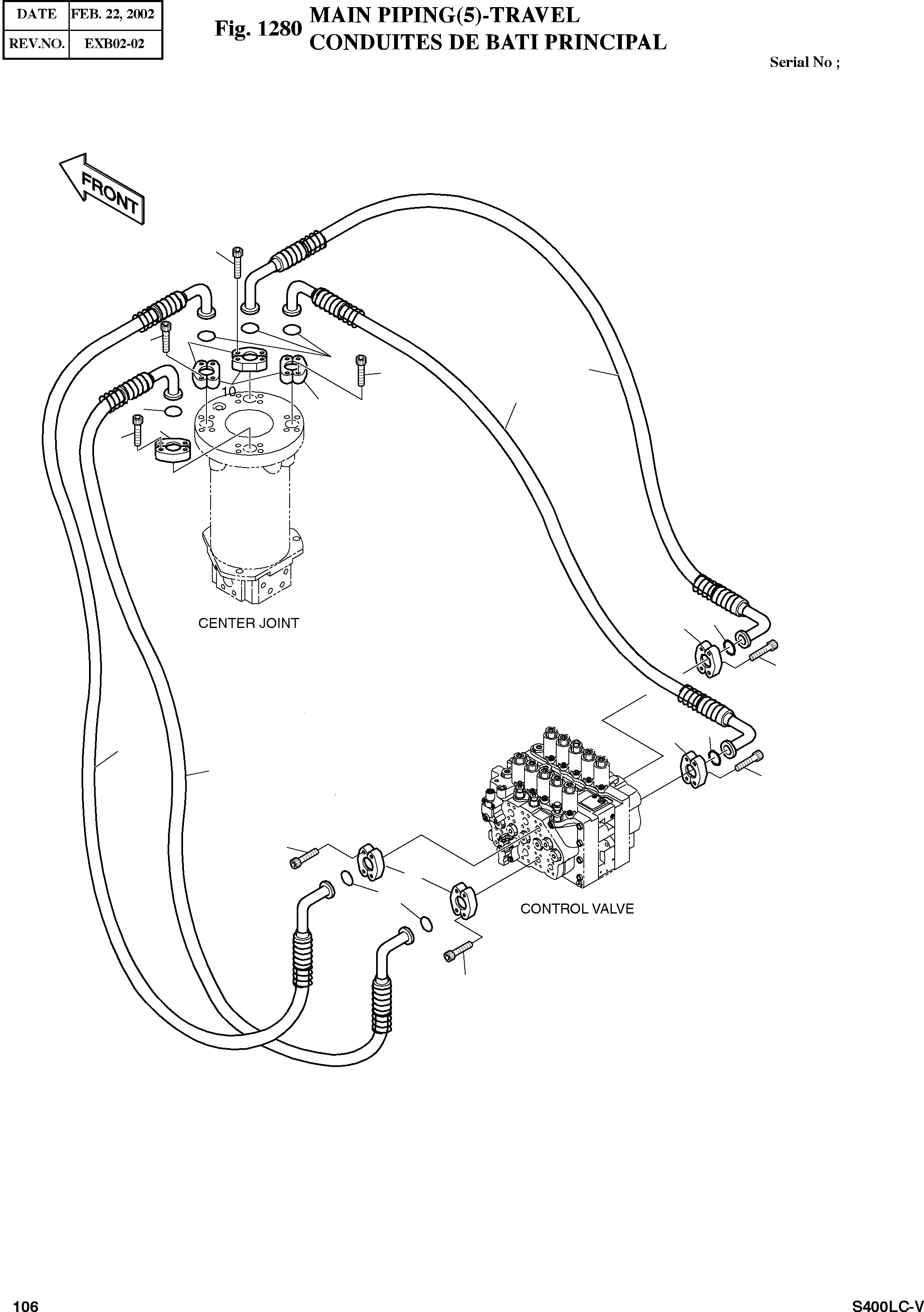

Запчасти Doosan Daewoo MAIN PIPING(5)-TRAVEL BODY PARTS

-

2400-1984A

MAIN PIPING

SC: D

-2шт.

8

2181-9081

FLANGE;SPLIT

desc: BRIDE

4шт.

10

2181-9084A

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.

11

2181-9078

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.

13

2180-1026D19

O-RING

desc: JOINT TORIQUE

8шт.

27

2184-1124D146

HOSE PF1-1490L

desc: TUYAU FLEXIBLE

1шт.

28

2184-1124D145

HOSE PF1-1760L

desc: TUYAU FLEXIBLE

1шт.

29

2184-1124D147

HOSE PF1-1690L

desc: TUYAU FLEXIBLE

1шт.

30

2184-1124D148

HOSE PF1-1400L

desc: TUYAU FLEXIBLE

1шт.

48

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1001-1170

16шт.

48

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1171

16шт.

60

S2215461

BOLT;SOCKET M12X1.75X40

SERIAL: 1001-1170

16шт.

60

S2215466

BOLT;SOCKET M12X1.75X40

SERIAL: 1171

16шт.
