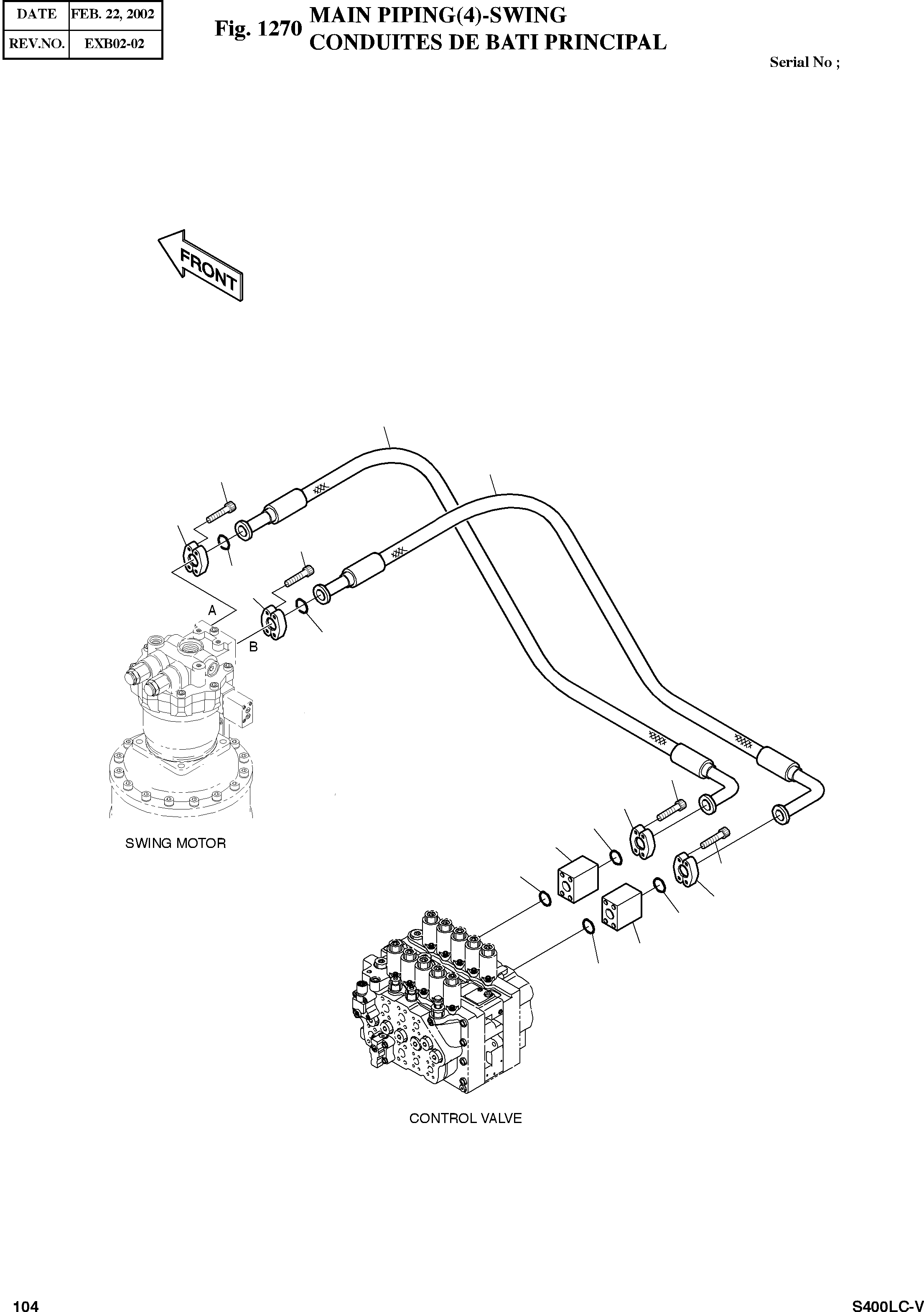

Запчасти Doosan Daewoo MAIN PIPING(4)-SWING BODY PARTS

-

2400-1984A

MAIN PIPING

SC: D

-2шт.

3

2423-1523

BLOCK;SPACER

desc: BLOC

2шт.

8

2181-9081

FLANGE;SPLIT

desc: BRIDE

4шт.

11

2181-9078

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.

13

2180-1026D19

O-RING

desc: JOINT TORIQUE

6шт.

34

2184-1100D156

HOSE;SWING PF1-650L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1100D157

HOSE;SWING PF1-770L

desc: TUYAU FLEXIBLE

1шт.

50

S2213861

BOLT;SOCKET M10X1.5X110

SERIAL: 1001-1170

8шт.

50

S2213866

BOLT;SOCKET M10X1.5X110

SERIAL: 1171

8шт.

60

S2215461

BOLT;SOCKET M12X1.75X40

SERIAL: 1001-1170

8шт.

60

S2215466

BOLT;SOCKET M12X1.75X40

SERIAL: 1171

8шт.
